Connector End View (C434) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14405
FEMALE
Harness 12663
| Pin | Circuit | Gauge | Qualifier |
| 1 | CLS10 (GN-BN) | 14 | |
| 2 | GD477 (BU-GY) | 14 | |
| 3 | CLS05 (BU-GY) | 14 | |
| 4 | CLS27 (GN-OG) | 14 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1298 |

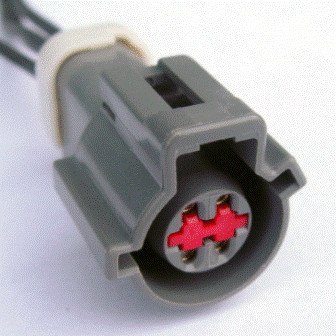

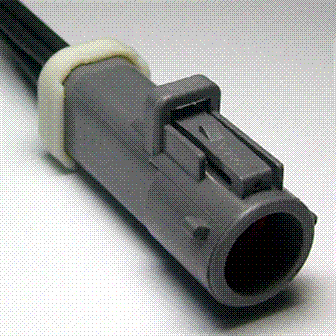

Service Part Number: 3U2Z-14S411-HZB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses: A/C Compressor Clutch Lamp - License Lamp - Park/Turn/Stop Motor - Rear Window Wiper Sensor - Mass Air Flow |
| Pigtail Kit Part Number WPT-818 |

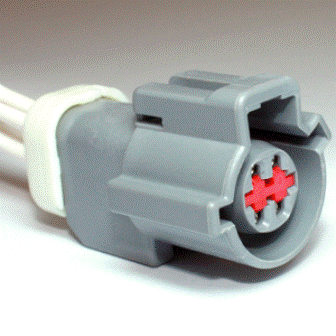

Service Part Number: 3U2Z-14S411-FFAA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses: Radio - Amplifier Sensor - Acceleration Pedal Position Sensor - Air Suspension - LH - Rear Sensor - Coolant Level |
| Pigtail Kit Part Number WPT-111 |
Service Part Number: 1U2Z-14S411-KA Gauge: 14 Pin material: Gold Cavities: 4 Vehicle Uses: Sensor - O2 (HEGO/ EGO) |
