Connector End View (C432) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
DK GY
Base Part #
Service Pigtail
See Below

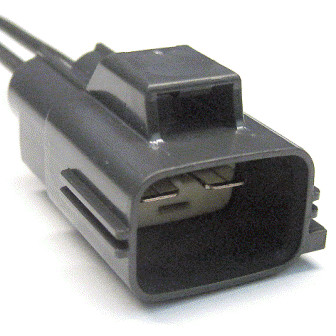

MALE
Harness 13A576

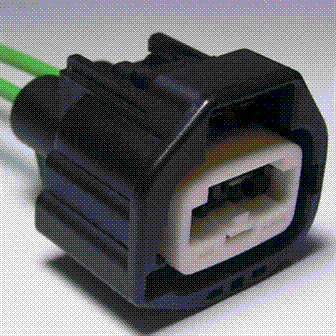

FEMALE
Harness 14405
| Pin | Circuit | Gauge | Qualifier |
| 1 | CAT19 (BU) | 12 | |
| 2 | GD477 (BU-GY) | 10 | 14405 |
| 2 | RAT08 (WH) | 10 | 13A576 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-916 |
Service Part Number: 8U2Z-14S411-PA Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses: Pump - Vacuum |
| Pigtail Kit Part Number WPT-1417 |
Service Part Number: 3U2Z-14S411-EUAB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses: Motor - Engine Cooling Fan Pump - Fuel (External) Resistor - Fan Dropping Trailer Tow - Vehicle Side |
