Connector End View (C431) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
See Below

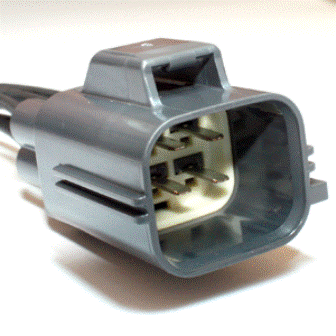

MALE
Harness 13A576

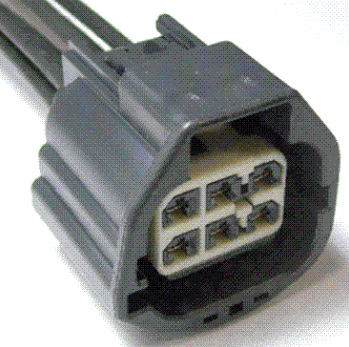

FEMALE
Harness 14405
| Pin | Circuit | Gauge | Qualifier |
| 1 | CAT06 (YE) | 12 | |
| 2 | CAT11 (BN) | 12 | |
| 3 | CAT03 (GY-BN) | 16 | |
| 4 | CAT09 (GN) | 12 | |
| 5 | CAT14 (OG) | 12 | |
| 6 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-163 |
Service Part Number: 1U2Z-14S411-BUA Gauge: 14 Pin material: Tin Cavities: 6 Vehicle Uses: Motor - Windshield Wiper |
| Pigtail Kit Part Number WPT-1495 |
Service Part Number: AU2Z-14S411-BKB Gauge: 14 Pin material: Tin Cavities: 6 Vehicle Uses: Trailer Tow - Vehicle Side |
