Connector End View (C421) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Base Part #
Service Pigtail
See Below

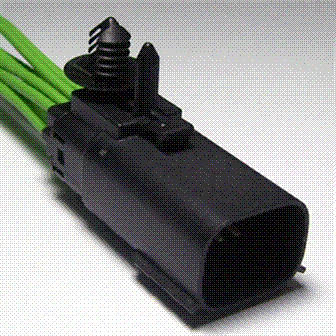

MALE
Harness 14405

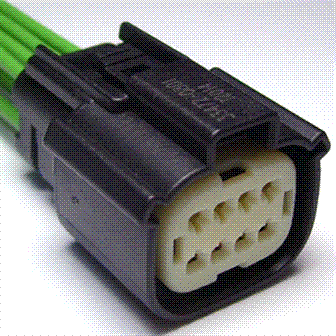

FEMALE
Harness 15K868
| Pin | Circuit | Gauge | Qualifier |
| 1 | CLS05 (BU-GY) | 20 | 14405 |
| 1 | CLS05 (BU-OG) | 20 | 15K868 |
| 2 | VMP15 (YE-GN) | 22 | |
| 3 | VMP14 (WH-OG) | 22 | |
| 4 | GD477 (BU-GY) | 20 | |
| 5 | LMP07 (BU-WH) | 22 | |
| 6 | VMP16 (YE-GY) | 22 | |
| 7 | VMP17 (YE-OG) | 22 | |
| 8 | RMP07 (GN-WH) | 22 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1407 |
Service Part Number: FU2Z-14S411-DA Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Mirror - Sideview |
| Pigtail Kit Part Number WPT-1415 |
Service Part Number: FU2Z-14S411-DB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Mirror - Sideview |
| Pigtail Kit Part Number WPT-1524 |
Service Part Number: CU2Z-14S411-ALB Gauge: 18 Pin material: Silver Cavitites: 8 Vehicle Uses: Actuator - Door Lock - Decklid/Liftgate Actuator - Door Lock - LH - Sliding Door Actuator - Door Lock - RH - Sliding Door Connector - Inline Inflator - Safety Belt |
| Pigtail Kit Part Number WPT-1276 |
Service Part Number: CU2Z-14S411-ALA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses: Connector - Inline |
