Connector End View (C411) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
See Below
MALE
Harness 13A412
FEMALE
Harness 13A409
| Pin | Circuit | Gauge | Qualifier |
| 1 | CLN06 (WH) | 20 | |
| 2 | GD477 (BU-GY) | 20 |

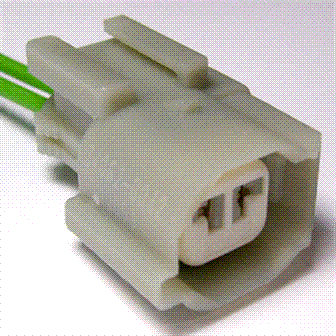

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1116 |
Service Part Number: AU2Z-14S411-BJA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses: Lamp - Running Board Sensor - Knock Sensor - Speed Sensor - Water in Fuel |
