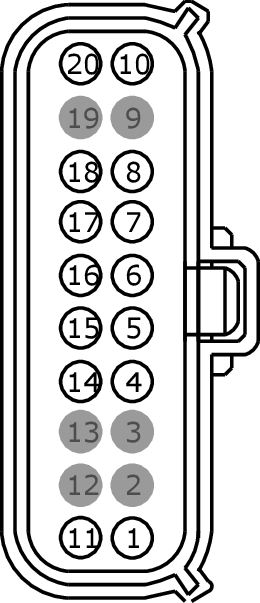

Connector End View (C408) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14405
FEMALE
Harness 13A409
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD477 (BU) | 14 | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | VDB06 (GY-OG) | 20 | |
| 5 | VDB06 (GY-OG) | 20 | |
| 6 | CLS23 (GY-OG) | 18 | 13A409 - wide frame |
| 6 | CLS23 (GY-VT) | 14 | 13A409 - narrow frame |
| 6 | CLS23 (GY-YE) | 18 | 14405 |
| 7 | CLS10 (GN-BN) | 14 | 14405 |
| 7 | CLS10 (GN-BN) | 18 | 13A409 - without LED |
| 7 | CLS10 (GN-BN) | 20 | 13A409 - without LED |
| 7 | CLS10 (GN-VT) | 18 | 13A409 - with LED |
| 8 | CBB34 (VT-BN) | 18 | 13A409 |
| 8 | CBB34 (VT-BN) | 20 | 14405 |
| 9 | * | * | 13A409 |
| 9 | CAT03 (GY-BN) | 16 | 14405 |
| 10 | CLS27 (GN-OG) | 18 | |
| 11 | GD477 (BU) | 14 | |
| 12 | * | * | |
| 13 | * | * | |
| 14 | VDB07 (VT-OG) | 20 | |
| 15 | VDB07 (VT-OG) | 20 | |
| 16 | CLS27 (GN-OG) | 14 | 13A409 - with LED |
| 16 | CLS27 (GN-OG) | 18 | 14405 |
| 16 | CLS27 (GN-OG) | 18 | 13A409 - without LED |
| 17 | CLS05 (BU-GY) | 18 | 14405 |
| 17 | CLS05 (BU-GY) | 18 | 13A409 - with LED |
| 17 | CLS05 (BU-GY) | 20 | 13A409 - without LED |
| 18 | CLS30 (VT-WH) | 18 | |
| 19 | * | * | |
| 20 | CLS23 (GY-OG) | 18 | 13A409 |
| 20 | CLS23 (GY-YE) | 18 | 14405 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1494 |
Service Part Number: HU2Z-14S411-HA Gauge: 16 Pin material: Silver Cavities: 20 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1488 |
Service Part Number: HU2Z-14S411-FA Gauge: 16 Pin material: Silver Cavities: 20 Vehicle Uses: Connector - Inline |
