Connector End View (C405) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Base Part #
Service Pigtail
See Below

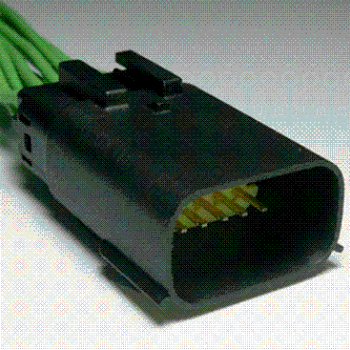

MALE
Harness 14405

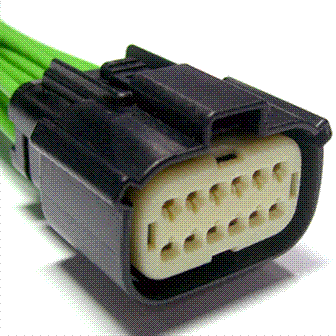

FEMALE
Harness 13A409
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | CLS18 (GY-BN) | 20 | |
| 3 | CLS54 (BU-OG) | 20 | |
| 4 | CLN13 (WH-BU) | 22 | |
| 5 | CLS55 (GN-BU) | 20 | 13A409 |
| 5 | CLS55 (GN-BU) | 22 | 14405 |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | CLN06 (WH) | 20 | |
| 12 | CLS19 (VT-OG) | 20 |

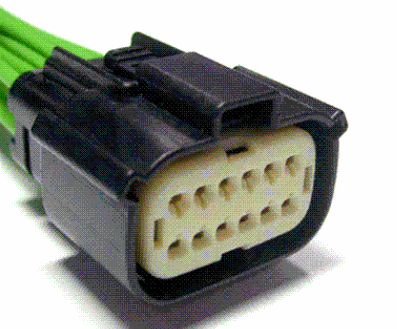

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1485 |
Service Part Number: HU2Z-14S411-CA Gauge: 16 Pin material: Silver Cavities: 12 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number: WPT-1544 |
Service Part Number: Gauge: 16 Pin material: Silver Cavitites: 12 Vehicle Uses: Connector - Inline Lamp - Front Turn Lamp - Headlamp - High/Low Beam Mirror - Sideview/Heated Module - Battery Energy Control Module - Extended Power Module - Gear Shift Module - Glow Plug Module - Transmission Ranger Control Trailer Tow - Vehicle Side |
| Pigtail Kit Part Number WPT-1125 |
Service Part Number: AU2Z-14S411-AMA Gauge: 16 Pin material: Silver Cavities: 12 Vehicle Uses: Connector - Inline Mirror - Sideview |
