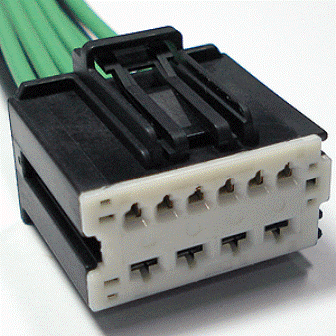

Connector End View (C360) - SEAT CONTROL SWITCH, DRIVER SIDE FRONT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS25 (WH-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | |
| 2 | CPS24 (GY) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | |
| 3 | CPS19 (GY-VT) | 18 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | |
| 4 | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP | |
| 5 | CPS23 (GN-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FORWARD | |
| 6 | CPS28 (GN) | 14 | SWITCH - SEAT ADJUST. DRIVER REARWARD | |
| 7 | GD904 (BK-BU) | 14 | GROUND - DRIVER SEAT # SEAT SWITCH | |
| 8 | CPS27 (BU-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | |
| 9 | CBX05 (VT-RD) | 14 | POWER - SEAT # POWER SEAT SWITCH | |
| 10 | CPS26 (YE-BU) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1042 |
Service Part Number: AU2Z-14S411-CA Gauge: 12 14 Pin material: Tin & Silver Cavities: 10 Vehicle Uses Module - Transfer Case Shift Control |
