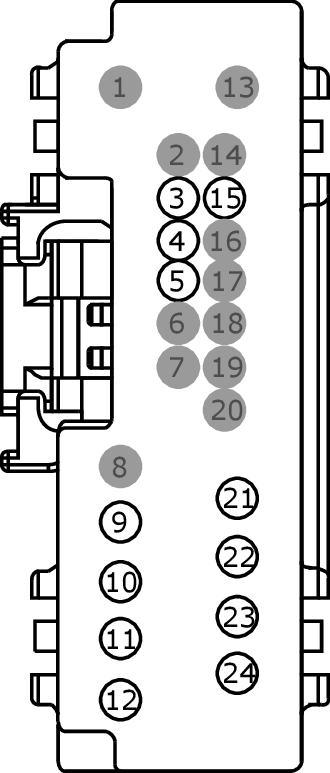

Connector End View (C341C) - DRIVER SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

14D231

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	LPP06 (YE-BU)	20	CTRL MOD. - SENSOR ADJUSTABLE PEDAL +
4	RPP07 (YE-GN)	20	CTRL MOD. - SENSOR ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) -
5	CPP18 (BN-VT)	20	CTRL MOD. - SOLENOID RAKE (TILT)
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	CPP10 (BN-BU)	20	SWITCH - ADJUST. PEDALS # REARWARD
10	CPP04 (GY)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP
11	CPP22 (GY-BN)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD
12	CPP01 (WH-OG)	18	CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD
13	*	*	Not Used
14	*	*	Not Used
15	RPP06 (GN)	20	CTRL MOD. - SENSOR ADJUSTABLE PEDAL -
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	CPP09 (VT-OG)	18	SWITCH - ADJUST. PEDALS # FORWARD
22	CPP23 (VT-GY)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN
23	CPP03 (GN-VT)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD
24	CPP02 (BN)	18	CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD

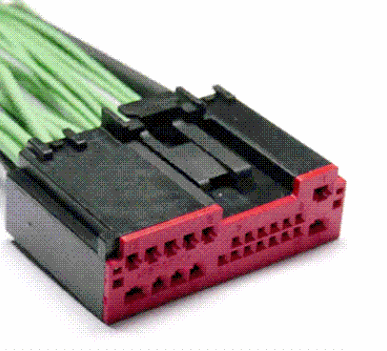

Available Pigtail Kits
Pigtail Kit Part Number WPT-1550	Service Part Number: JU2Z-14S411-AJA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 24 Vehicle Uses Lamp - Front Cornering/Turn Module - Driver Door Module - Headlamp Control Module - Heated Seat Module - Seat Memory Module - Upfitter Interface
