Connector End View (C339) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
See Below

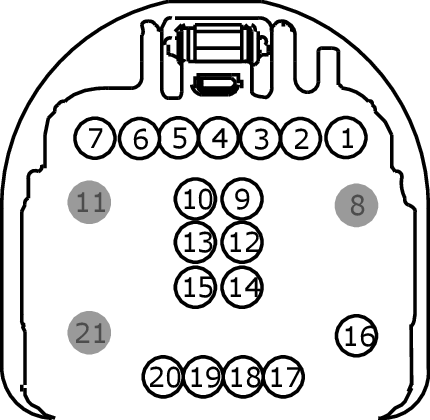

MALE
Harness 14A005

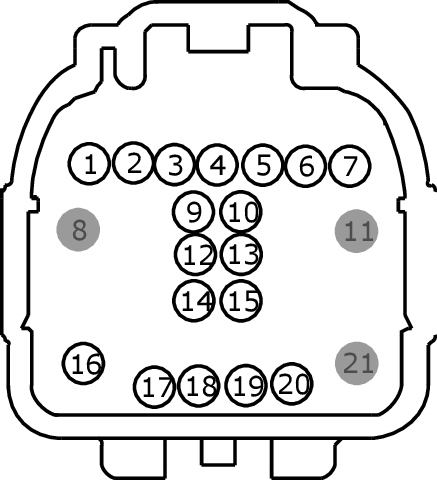

FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | SME23 (VT-RD) | 22 | |
| 2 | RPK07 (GN-OG) | 22 | |
| 3 | VPK07 (VT) | 22 | |
| 4 | VMP43 (GN-BU) | 20 | 14A005 |
| 4 | VMP43 (GN-BU) | 22 | 14401 |
| 5 | VMP44 (VT-GY) | 20 | 14A005 |
| 5 | VMP44 (VT-GY) | 22 | 14401 |
| 6 | DMP43 (*) | 20 | |
| 6 | DMP43 (*) | 20 | 14401 |
| 6 | DMP43 (*) | 22 | 14401 |
| 7 | VMP24 (WH) | 22 | |
| 8 | * | * | |
| 9 | VME07 (WH) | 18 | 14A005 - with Sony |
| 9 | VME07 (WH) | 18 | 14401 - with touchscreen |
| 9 | VME07 (WH) | 22 | 14A005 - without Sony |
| 9 | VME07 (WH-BU) | 18 | 14401 - without touchscreen |
| 10 | RME07 (WH-BN) | 18 | 14401 |
| 10 | RME07 (WH-BN) | 18 | 14A005 - with Sony |
| 10 | RME07 (WH-BN) | 22 | 14A005 - without Sony |
| 11 | * | * | |
| 12 | VME09 (WH) | 22 | 14A005 - without Sony |
| 12 | VME09 (WH-GN) | 18 | 14401 |
| 12 | VME09 (WH-GN) | 18 | 14A005 - with Sony |
| 13 | RME09 (BN) | 22 | 14A005 - with Sony |
| 13 | RME09 (BN-YE) | 18 | 14401 |
| 13 | RME09 (BN-YE) | 18 | 14A005 - without Sony |
| 14 | VME10 (WH-VT) | 18 | 14401 |
| 14 | VME10 (WH-VT) | 18 | 14A005 - with Sony |
| 14 | VME10 (WH-VT) | 22 | 14A005 - without Sony |
| 15 | RME10 (WH-OG) | 18 | 14401 |
| 15 | RME10 (WH-OG) | 18 | 14A005 - with Sony |
| 15 | RME10 (WH-OG) | 22 | 14A005 - without Sony |
| 16 | DME17 (*) | 20 | |
| 17 | VME12 (BN-WH) | 18 | 14401 |
| 17 | VME12 (BN-WH) | 18 | 14A005 - with Sony |
| 17 | VME12 (WH) | 22 | 14A005 - without Sony |
| 18 | RME12 (BN) | 22 | 14A005 - without Sony |
| 18 | RME12 (BN-BU) | 18 | 14401 |
| 18 | RME12 (BN-BU) | 18 | 14A005 - with Sony |
| 19 | RME06 (GY-YE) | 18 | 14401 |
| 19 | RME06 (GY-YE) | 20 | 14A005 |
| 20 | VME06 (GN) | 18 | 14401 |
| 20 | VME06 (GN) | 20 | 14A005 |
| 21 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1463 |
Service Part Number: GU2Z-14S411-GA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1482 |
Service Part Number: GU2Z-14S411-GB Gauge: 14 16 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
