Connector End View (C327) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GY
Base Part #
Service Pigtail
See Below

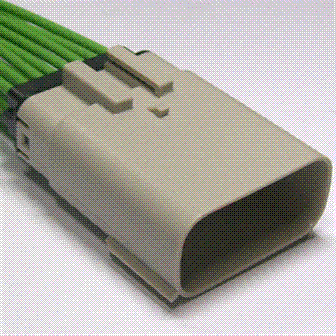

MALE
Harness 14405

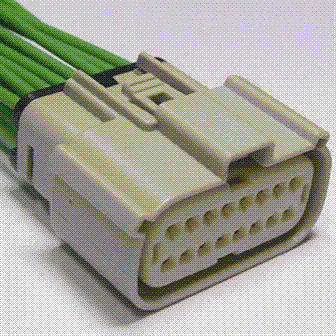

FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | VDB25 (GN-OG) | 20 | |
| 2 | VDB26 (GY-BU) | 20 | |
| 3 | VDB06 (GY-OG) | 20 | |
| 4 | VDB07 (VT-OG) | 20 | |
| 5 | CLS23 (GY-OG) | 18 | 14A005 |
| 5 | CLS23 (GY-YE) | 18 | 14405 |
| 6 | CLS27 (GN-OG) | 18 | |
| 7 | CLS23 (GY-BN) | 14 | 14405 - narrow frame |
| 7 | CLS23 (GY-OG) | 18 | 14A005 |
| 7 | CLS23 (GY-YE) | 18 | 14405 - wide frame |
| 8 | CLS27 (GN-OG) | 18 | 14A005 |
| 8 | CLS27 (GN-OG) | 18 | 14405 - wide frame |
| 8 | CLS27 (GN-VT) | 14 | 14405 - narrow frame |
| 9 | CPL60 (BN-YE) | 22 | |
| 10 | VDB07 (VT-OG) | 20 | |
| 11 | VDB06 (GY-OG) | 20 | |
| 12 | CLN06 (WH) | 20 | |
| 13 | CLS55 (GN-BU) | 22 | |
| 14 | VDB28 (GY-VT) | 20 | |
| 15 | VDB27 (VT-GN) | 20 | |
| 16 | CBB34 (VT-BN) | 14 | 14405 |
| 16 | CBB34 (VT-BN) | 18 | 14A005 |
| 16 | CBB34 (VT-BN) | 20 | 14405 - with LED |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1321 |
Service Part Number: DU2Z-14S411-SA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses: Connector - Inline Mating Connector WPT-1320 |
| Pigtail Kit Part Number WPT-1320 |
Service Part Number: DU2Z-14S411-RA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses: Connector - Inline Mating Connector WPT-1321 |
