Connector End View (C314) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Base Part #
Service Pigtail
See Below

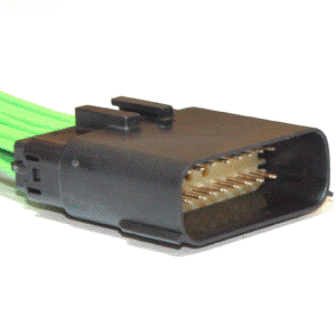

MALE
Harness 14D378

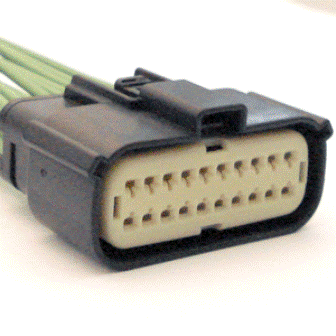

FEMALE
Harness 14405
| Pin | Circuit | Gauge | Qualifier |
| 1 | 117 (BK) | 16 | 14D378 |
| 1 | GD406 (BK-YE) | 16 | 14405 - WIDE FRAME |
| 1 | GD476 (BK-WH) | 16 | 14405 - NARROW FRAME |
| 2 | 106 (BK) | 16 | 14D378 |
| 2 | GD406 (BK-YE) | 16 | 14405 - WIDE FRAME |
| 2 | GD476 (BK-WH) | 16 | 14405 - NARROW FRAME |
| 3 | 101 (BN) | 20 | 14D378 |
| 3 | VE838 (VT-GY) | 20 | 14405 |
| 4 | 112 (BU) | 20 | 14D378 |
| 4 | CE354 (BN-BU) | 20 | 14405 |
| 5 | 121 (BN) | 20 | 14D378 |
| 5 | VE348 (GN-OG) | 20 | 14405 |
| 6 | 103 (BN) | 20 | 14D378 |
| 6 | RE406 (GY-VT) | 20 | 14405 |
| 7 | * | * | |
| 8 | 113 (BK) | 16 | 14D378 |
| 8 | GD406 (BK-YE) | 16 | 14405 - WIDE FRAME |
| 8 | GD476 (BK-WH) | 16 | 14405 - NARROW FRAME |
| 9 | 119 (BU) | 16 | 14D378 |
| 9 | CBK04 (VT) | 16 | 14405 |
| 10 | 118 (WH) | 16 | 14D378 |
| 10 | CE352 (YE-GY) | 16 | 14405 |
| 11 | 110 (BN) | 16 | 14D378 |
| 11 | GD406 (BK-YE) | 16 | 14405 - WIDE FRAME |
| 11 | GD476 (BK-WH) | 16 | 14405 - NARROW FRAME |
| 12 | * | * | 14D378 |
| 12 | GD406 (BK-YE) | 16 | 14405 - WIDE FRAME |
| 12 | GD476 (BK-WH) | 16 | 14405 - NARROW FRAME |
| 13 | 102 (BU) | 20 | 14D378 |
| 13 | RE406 (GY-VT) | 20 | 14405 |
| 14 | 116 (BN) | 20 | 14D378 |
| 14 | VE529 (GN-OG) | 20 | 14405 |
| 15 | 120 (BK) | 20 | 14D378 |
| 15 | VE349 (BN-YE) | 20 | 14405 |
| 16 | * | * | |
| 17 | 104 (BU) | 20 | 14D378 |
| 17 | VE833 (BU-WH) | 20 | 14405 |
| 18 | 115 (WH) | 14 | 14D378 |
| 18 | CBK02 (GN) | 14 | 14405 |
| 19 | 105 (BU) | 16 | 14D378 |
| 19 | LE461 (GY-YE) | 20 | 14405 |
| 20 | 109 (WH) | 16 | 14D378 |
| 20 | CE356 (BU-OG) | 16 | 14405 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-890 |
Service Part Number: 7U2Z-14S411-HA Gauge: 16 Pin material: Silver Cavities: 20 Vehicle Uses: Connector - Inline For Mating Connector Refer To WPT-889 |
| Pigtail Kit Part Number WPT-1567 |
Service Part Number: 7U2Z-14S411-HB Gauge: 16 Pin material: Silver Cavities: 20 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-889 |
Service Part Number: 7U2Z-14S411-GA Gauge: 16 Pin material: Silver Cavities: 20 Vehicle Uses: Connector - Inline For Mating Connector Refer To WPT-890 |
