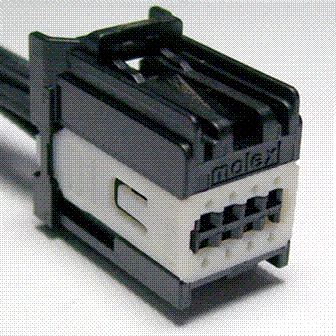

Connector End View (C290C) - GENERIC FUNCTION MODULE 2 (GFM2)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB91 (BU-RD) | 18 | FUSE - 91 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD131 (BK-GY) | 18 | GROUND - HEADLAMP PANEL/GOR RIGHT | |
| 5 | * | * | Not Used | |
| 6 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 7 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1457 |
Service Part Number: FU2Z-14S411-AVA Gauge: 20 Pin material: Tin Cavities: 8 Vehicle Uses Module - Front Interface Radio - Amplifier |
