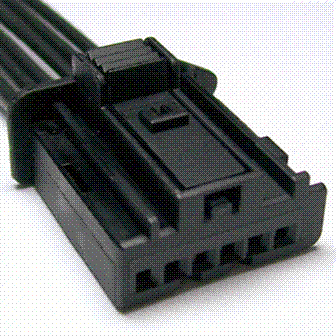

Connector End View (C289) - AIR INLET DOOR ACTUATOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
19F561
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | |
| 2 | VH438 (GN) | 26 | SENSOR - DOOR POSITION RECIRC. | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF | |
| 4 | * | * | Not Used | |
| 5 | CH208 (GN-OG) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) | |
| 6 | CH207 (BU-GY) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1151 |
Service Part Number: BU2Z-14S411-MA Gauge: 18 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Inlet Door |
