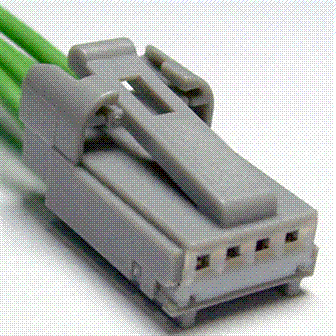

Connector End View (C286) - AUTOLAMP/SUNLOAD SENSOR

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT
2	VLF14 (BU)	26	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +
3	VH416 (VT)	26	SENSOR - SUN LOAD # LEFT
4	RLF14 (GY-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1013

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-TA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Module - Auto Lamps

Sensor - Sunload
