Connector End View (C284) - MODE SELECT SWITCH (MSS)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 2 | RCF13 (WH-BN) | 22 | SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) -+ | |
| 3 | CCF13 (WH-BU) | 22 | SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) + | |
| 4 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 5 | CCF32 (WH-GN) | 22 | SWITCH - LOCKER MODE | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-995 |

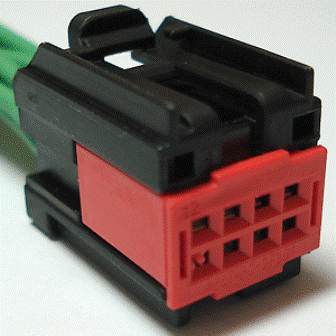

Service Part Number: 3U2Z-14S411-BGB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Lamp - Dimmer Switch Switch - 4x4 Control Switch - Adjustable Pedal Switch - Center Stack (Multipurpose) Switch - Dimmer Switch - Hazard Warning Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Multifunction (Wiper) Switch - Seat (3rd Row) Switch - Third Row Power Folding Seat Switch - Traction Control |
