Connector End View (C263) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
See Below
MALE
Harness 14A005
FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | CPP03 (GN-VT) | 20 | |
| 2 | VPP08 (WH) | 20 | 14A005 |
| 2 | VPP08 (WH) | 22 | 14401 |
| 3 | VPP17 (VT-BN) | 20 | 14A005 |
| 3 | VPP17 (VT-BN) | 22 | 14401 |
| 4 | CCB08 (VT-WH) | 22 | |
| 5 | CRW15 (BN-WH) | 22 | |
| 6 | CPP23 (VT-GY) | 20 | |
| 7 | CPP04 (GY) | 20 | |
| 8 | CLS23 (GY-OG) | 18 | 14A005 |
| 8 | CLS23 (GY-OG) | 20 | 14401 |
| 9 | VDB26 (GY-BU) | 22 | |
| 10 | VDB25 (GN-OG) | 22 | |
| 11 | CLS27 (GN-OG) | 18 | 14A005 |
| 11 | CLS27 (GN-OG) | 20 | 14401 |
| 12 | VMC23 (GN-OG) | 22 | |
| 13 | RMC33 (WH-VT) | 22 | |
| 14 | VDB06 (GY-OG) | 22 | |
| 15 | VDB07 (VT-OG) | 22 | |
| 16 | CPP22 (GY-BN) | 20 | |
| 17 | DMP38 (*) | 20 | 14A005 |
| 17 | DMP38 (*) | 20 | 14401 - without 360 camera |
| 17 | DMP38 (*) | 22 | 14401 - with 360 camera |
| 18 | VMP39 (BU-OG) | 20 | 14A005 |
| 18 | VMP39 (BU-OG) | 22 | |
| 19 | VMP44 (VT-GY) | 20 | 14A005 |
| 19 | VMP44 (VT-GY) | 22 | |
| 20 | VDN05 (YE-GY) | 22 | |
| 21 | CPP05 (WH-VT) | 20 | 14A005 |
| 21 | CPP05 (WH-VT) | 22 |

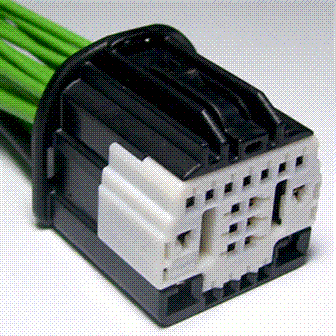

| Available Pigtail Kits | |
| Pigtail Kit Part Number: WPT-1561 |
Service Part Number: JU2Z-14S411-ARA Gauge: 14 16 20 Pin material: Tin Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number: WPT-1559 |
Service Part Number: FU2Z-14S411-RB Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
