Connector End View (C257) - CLUTCH PEDAL POSITION (CPP) SWITCH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE903 (BU-OG) | 20 | SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT) | |
| 2 | GD233 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | CE904 (GN-VT) | 20 | SWITCH - CLUTCH PEDAL POSITION # TOP OF TRAVEL (CPP-TT) | |
| 6 | GD233 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT |

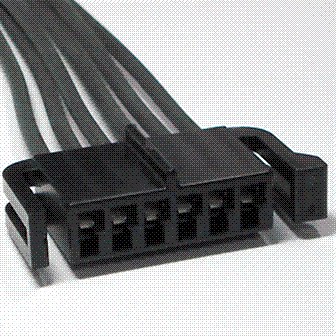

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1056 |
Service Part Number: 3U2Z-14S411-SKB Gauge: 12 Pin material: Tin Cavities: 6 Vehicle Uses Switch - Clutch Pedal Position |
