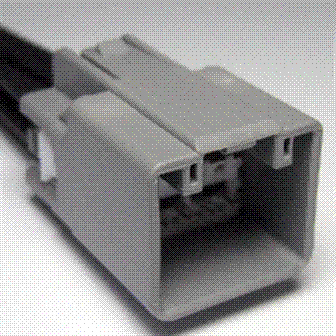

Connector End View (C248) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14A005
FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD238 (BK-WH) | 16 | |
| 2 | * | * | |
| 3 | CLF03 (VT-OG) | 18 | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | CLN06 (WH) | 20 | |
| 8 | CLN09 (YE-GN) | 22 | |
| 9 | VLN04 (VT-GY) | 22 | |
| 10 | SBP14 (BN-RD) | 16 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1175 |
Service Part Number: BU2Z-14S411-VA Gauge: 16 Pin material: Tin (greased) Cavities: 10 Vehicle Uses: Lamp - Park/Turn/Stop |
| Pigtail Kit Part Number WPT-1037 |
Service Part Number: 1U2Z-14S411-BLB Gauge: 14 Pin material: Silver Cavities: 10 Vehicle Uses: Inverter - DC to AC Module - Anti-theft Module - Heated Seat Module - Power Moonroof Radio - Amplifier Solenoid - Brake Shift Park Interlock Switch - Gear Shift Select/Neutral Safety Switch - Headlamp Switch - Heated Seat Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Overdrive Cancel Switch - Turn Signal Switch - Windshield Wiper / Washer |
