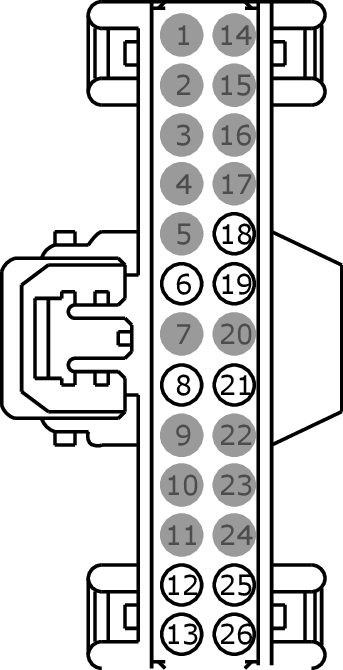

Connector End View (C240B) - AUDIO CONTROL MODULE (ACM)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | VME90 (GY-BU) | 22 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) | |
| 7 | * | * | Not Used | |
| 8 | VME80 (VT) | 26 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | VME52 (BU) | 26 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + | |
| 13 | VME53 (VT-GN) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | SME23 (VT-RD) | 22 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE | |
| 19 | VME91 (WH-BN) | 22 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) | |
| 20 | * | * | Not Used | |
| 21 | RME80 (BU) | 26 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | RME52 (GY) | 26 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - | |
| 26 | RME53 (BN-WH) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
