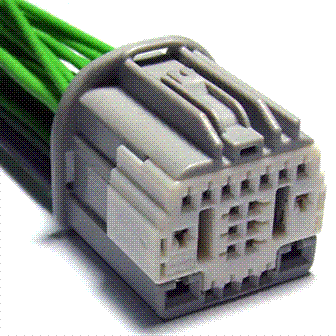

Connector End View (C239) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
See Below
MALE
Harness 13A576
FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | GD214 (BK-BU) | 18 | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | SBB54 (BN-RD) | 10 | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | CBP04 (VT) | 22 | |
| 13 | * | * | |
| 14 | CAT19 (BU) | 12 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-955 |
Service Part Number: GU2Z-14S411-GA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
