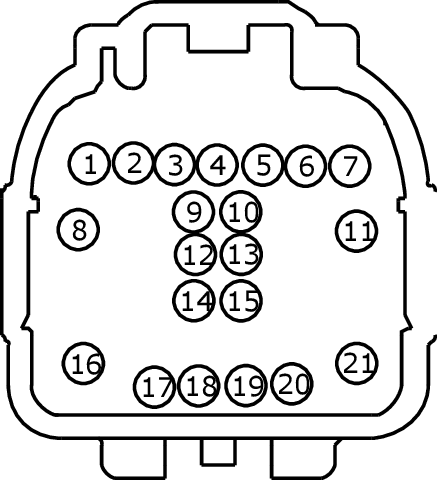

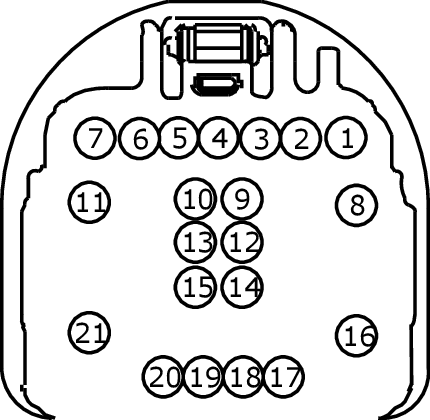

Connector End View (C238) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
InlineC238
Description
INLINE
Color
#N/A
Base Part #
Service Pigtail
See Below
MALE
Harness 14A005
FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | VDB30 (WH-GN) | 22 | |
| 2 | VDB29 (GN-BU) | 22 | |
| 3 | VME80 (VT) | 26 | |
| 4 | RME80 (BU) | 26 | |
| 5 | DME80 (*) | 20 | |
| 6 | VDB30 (WH-GN) | 22 | |
| 7 | VDB29 (GN-BU) | 22 | |
| 8 | CPP09 (VT-OG) | 20 | |
| 9 | RMC32 (GN) | 26 | 14401 |
| 9 | RMC32 (GN-BU) | 22 | 14A005 |
| 10 | RHS05 (YE-VT) | 20 | 14A005 |
| 10 | RHS05 (YE-VT) | 22 | 14401 |
| 11 | CPP10 (BN-BU) | 20 | |
| 12 | CRB05 (GN) | 26 | 14401 |
| 12 | CRB05 (GN-OG) | 22 | 14A005 |
| 13 | CPL60 (BN-GN) | 22 | 14A005 |
| 13 | CPL60 (BN-YE) | 22 | 14401 |
| 14 | CMC20 (VT) | 20 | 14A005 |
| 14 | CMC20 (VT) | 22 | 14401 |
| 15 | GD216 (BK-VT) | 20 | 14A005 |
| 15 | GD216 (BK-VT) | 22 | 14401 |
| 16 | CHS02 (YE-BU) | 16 | |
| 17 | VDB28 (GY-VT) | 20 | 14A005 |
| 17 | VDB28 (GY-VT) | 22 | 14401 |
| 18 | VDB27 (VT-GN) | 20 | 14A005 |
| 18 | VDB27 (VT-GN) | 22 | 14401 |
| 19 | CLF72 (BN) | 22 | |
| 20 | VMC11 (YE-VT) | 22 | |
| 21 | CAT19 (BU) | 12 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1463 |
Service Part Number: GU2Z-14S411-GA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1482 |
Service Part Number: GU2Z-14S411-GB Gauge: 14 16 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
