Connector End View (C237) - INLINE

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

InlineC237

Description

INLINE

Color

Base Part #

Service Pigtail

See Below

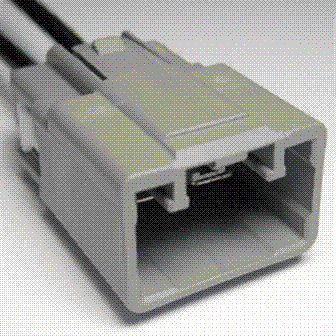

MALE

Harness 19F561

Courtesy of FORD MOTOR COMPANY

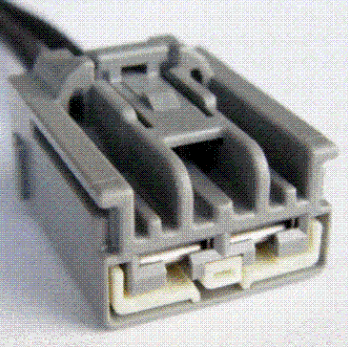

FEMALE

Harness 12A581

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	GD123 (BK-GY)	10
2	GD123 (BK-GY)	10

Available Pigtail Kits

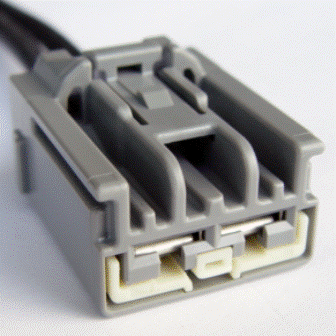

Pigtail Kit Part Number WPT-1190 Courtesy of FORD MOTOR COMPANY	Service Part Number: 3U2Z-14S411-EFAB Gauge: 10 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Terminal - Rear Window Defroster Grid
Pigtail Kit Part Number WPT-1486 Courtesy of FORD MOTOR COMPANY	Service Part Number: 3U2Z-14S411-PB Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses: Inverter - DC to AC Module - Heated Seat Module - Lighting Control Module - Seat Memory Module - Variable Speed Blower Controller Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Relay - Blower Motor Relay - Trailer Tow Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) Terminal - Rear Window Defroster Grid Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-236 Courtesy of FORD MOTOR COMPANY	Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses: Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front)
