Connector End View (C236) - AIR DISTRIBUTION DOOR ACTUATOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
19F561
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CH202 (BU-GN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) | |
| 2 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF | |
| 4 | VH437 (VT-BN) | 22 | SENSOR - DOOR POSITION PANEL/FLOOR | |
| 5 | * | * | Not Used | |
| 6 | CH203 (GN-BN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) |

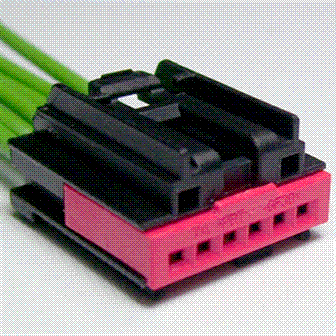

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1249 |
Service Part Number: 3U2Z-14S411-BYAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dome Lamp - Storage Compartment - Cargo Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat Switch - Heater A/C Blower (Rear) Switch - Speed Control |
