Connector End View (C230) - TWEETER, LEFT FRONT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME07 (WH) | 20 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + | |
| 2 | * | * | Not Used | |
| 3 | RME07 (WH-BN) | 20 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - |

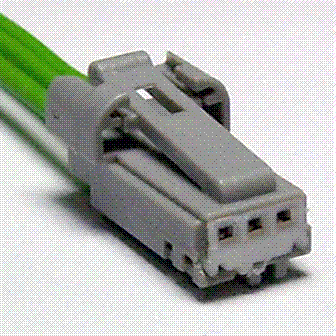

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1182 |
Service Part Number: BU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Microphone |
