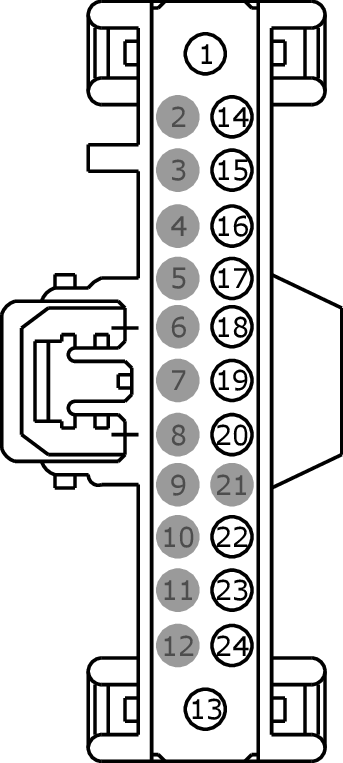

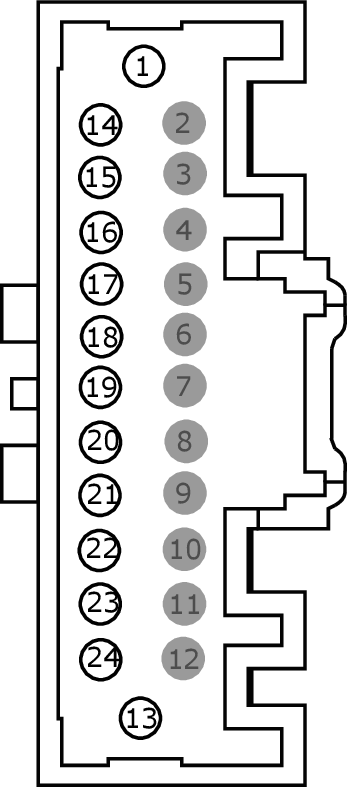

Connector End View (C222) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Base Part #
Service Pigtail
See Below
MALE
Harness PIA
FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD215 (BK-GY) | 22 | 14401 |
| 1 | GND (BK-GY) | 22 | PIA |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | * | * | |
| 13 | SBP15 (WH-RD) | 22 | 14401 |
| 13 | VB1 (WH-RD) | 22 | PIA |
| 14 | GD216 (BK-VT) | 22 | 14401 |
| 14 | SIGGND (BK-VT) | 22 | PIA |
| 15 | HS3CANM (WH-GN) | 22 | PIA |
| 15 | VDB30 (WH-GN) | 22 | 14401 |
| 16 | HS3CANP (GN-BU) | 22 | PIA |
| 16 | VDB29 (GN-BU) | 22 | 14401 |
| 17 | HS2CANM (GY-BU) | 22 | PIA |
| 17 | VDB26 (GY-BU) | 22 | 14401 |
| 18 | HS2CANP (GN-OG) | 22 | PIA |
| 18 | VDB25 (GN-OG) | 22 | 14401 |
| 19 | HS1CANM (WH-BU) | 22 | PIA |
| 19 | VDB05 (WH) | 22 | 14401 |
| 20 | HS1CANP (WH) | 22 | PIA |
| 20 | VDB04 (WH-BU) | 22 | 14401 |
| 21 | * | * | |
| 22 | MS1CANM (VT-OG) | 22 | PIA |
| 22 | VDB07 (VT-OG) | 22 | 14401 |
| 23 | MS1CANP (GY-OG) | 22 | PIA |
| 23 | VDB06 (GY-OG) | 22 | 14401 |
| 24 | SBP12 (GN-RD) | 22 | 14401 |
| 24 | VQMVB (GN-RD) | 22 | PIA |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1533 |
Service Part Number: FU2Z-14S411-ALB Gauge: 14 20 Pin material: Tin & Silver Cavities: 24 Vehicle Uses: DVD Player Module - Audio Control Module - Body Control Module - Fuel and Damper Control Module - Gateway Radio Test Connector - Diagnostic |
| Pigtail Kit Part Number WPT-1440 |
Service Part Number: FU2Z-14S411-ALA Gauge: 14 20 Pin material: Tin & Silver Cavities: 24 Vehicle Uses: DVD Player Module - Audio Control Module - Body Control Module Gateway Radio Test Connector - Diagnostic |
