Connector End View (C221) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Base Part #
Service Pigtail
See Below

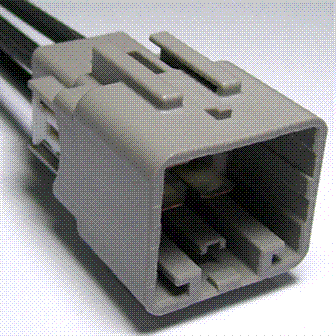

MALE
Harness 12A581

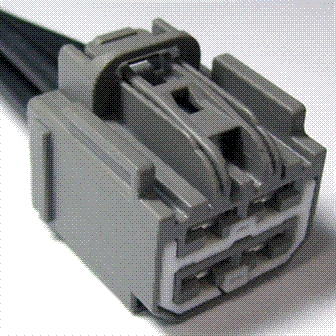

FEMALE
Harness 19F561
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | CBB84 (VT) | 10 | |
| 3 | CBB83 (GY) | 10 | |
| 4 | CBB85 (YE) | 10 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1408 |
Service Part Number: EU2Z-14S411-XA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses: Mating Connector WPT-1177 Switch - Upfitter |
| Pigtail Kit Part Number WPT-1177 |
Service Part Number: AU2Z-14S411-BHA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses: Mating Connector WPT-1408 Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
