Connector End View (C218E) - CLOCKSPRING
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (*) | * | CTRL MOD. - SWITCH HORN | |
| 2 | * | * | Not Used | |
| 3 | * (*) | * | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used |

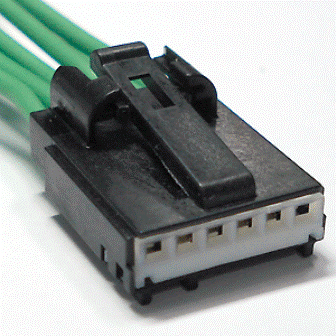

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1006 |
Service Part Number: 7U2Z-14S411-NB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front) |
