Connector End View (C215) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
Not Available

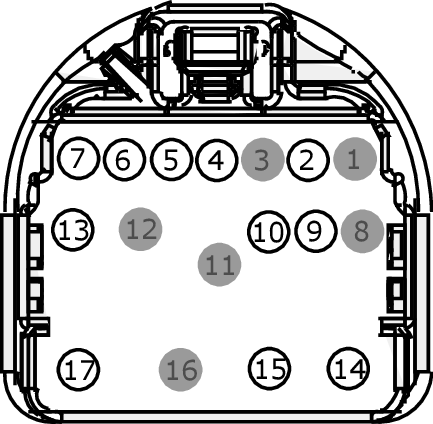

MALE
Harness 14401

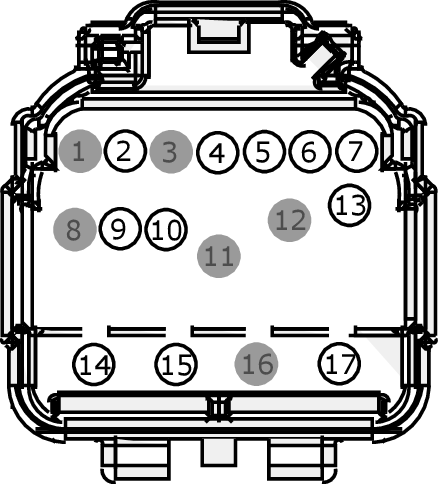

FEMALE
Harness 14B079
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | LME89 (YE-BU) | 22 | |
| 3 | * | * | |
| 4 | RPK07 (GN-OG) | 18 | 14B079 |
| 4 | RPK07 (GN-OG) | 22 | 14401 |
| 5 | VPK07 (VT) | 18 | 14B079 |
| 5 | VPK07 (VT) | 22 | 14401 |
| 6 | RME89 (WH-BU) | 22 | |
| 7 | GD214 (BK-BU) | 22 | |
| 8 | * | * | |
| 9 | VLN04 (VT-GY) | 22 | |
| 10 | VLN73 (GY-BN) | 22 | |
| 11 | * | * | |
| 12 | * | * | |
| 13 | GD214 (BK-BU) | 16 | |
| 14 | CBB66 (BU-WH) | 16 | |
| 15 | CBB22 (GN-OG) | 16 | |
| 16 | * | * | |
| 17 | GD214 (BK-BU) | 16 |
