Connector End View (C212) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
Not Available

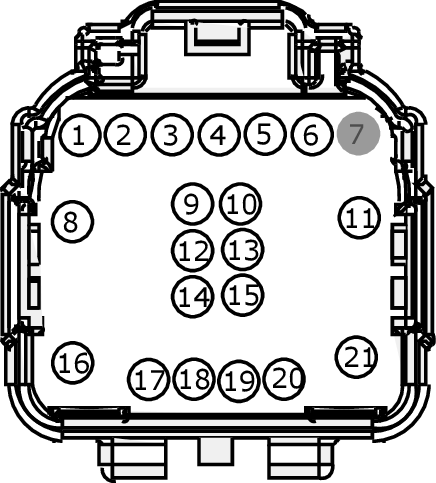

MALE
Harness 14A005

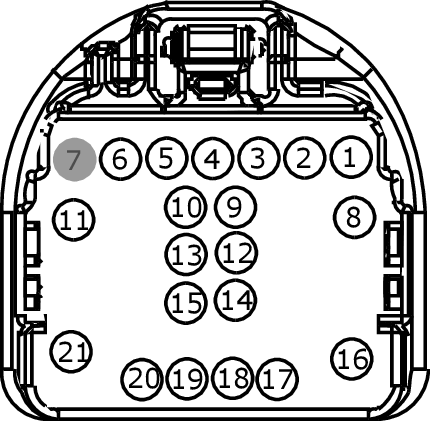

FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | RHS10 (BU-OG) | 20 | 14A005 |
| 1 | RHS10 (BU-OG) | 22 | 14401 |
| 2 | RH111 (GY-BU) | 22 | |
| 3 | RYA18 (VT-GN) | 22 | |
| 4 | DME23 (*) | 20 | |
| 5 | CLF75 (VT-BN) | 22 | |
| 6 | CBX07 (GN-RD) | 22 | |
| 7 | * | * | |
| 8 | HYA01 (OG-GN) | 16 | |
| 9 | RMM23 (WH) | 26 | |
| 10 | VMM23 (BN) | 26 | |
| 11 | HYA02 (OG-WH) | 16 | |
| 12 | VDB25 (GN-OG) | 22 | |
| 13 | VDB26 (GY-BU) | 22 | |
| 14 | VDB07 (VT-OG) | 22 | |
| 15 | VDB06 (GY-OG) | 22 | |
| 16 | CHS07 (GY-BU) | 16 | |
| 17 | CLN13 (WH-BU) | 22 | |
| 18 | VPL56 (BU) | 26 | 14A005 |
| 18 | VPL56 (BU-GY) | 22 | 14401 |
| 19 | CLF76 (GY-OG) | 22 | |
| 20 | LYA18 (GN-WH) | 22 | |
| 21 | SBB56 (VT-RD) | 12 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number: WPT-1561 |
Service Part Number: JU2Z-14S411-ARA Gauge: 14 16 20 Pin material: Tin Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number: WPT-1559 |
Service Part Number: FU2Z-14S411-RB Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
