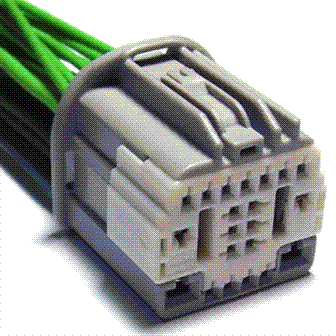

Connector End View (C211) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
See Below

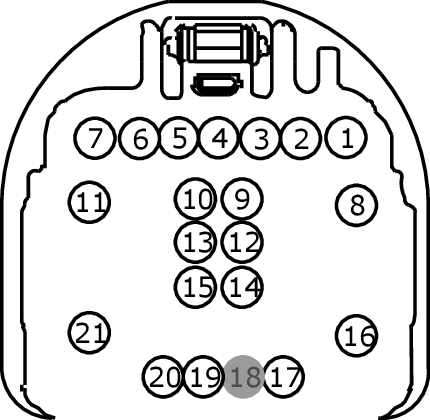

MALE
Harness 12A581

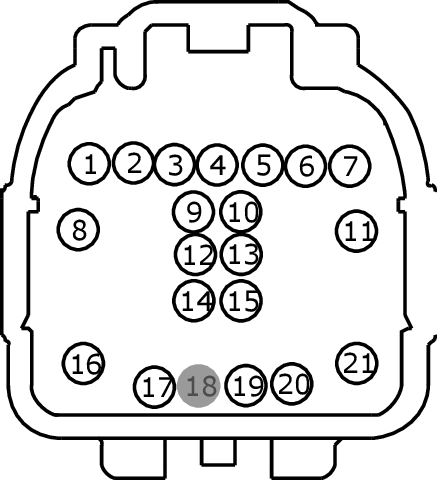

FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | CET43 (GY) | 20 | 12A581 |
| 1 | CET43 (GY) | 22 | 14401 |
| 2 | CET34 (BN-GN) | 20 | 12A581 |
| 2 | CET34 (BN-GN) | 22 | 14401 |
| 3 | CCF13 (WH-BU) | 22 | |
| 4 | CCF32 (WH-GN) | 22 | |
| 5 | RCF13 (WH-BN) | 22 | |
| 6 | CET42 (GN-VT) | 20 | 12A581 |
| 6 | CET42 (GN-VT) | 22 | 14401 |
| 7 | RE407 (YE-VT) | 20 | 12A581 |
| 7 | RE407 (YE-VT) | 22 | 14401 |
| 8 | CLF05 (BU-GN) | 20 | |
| 9 | RR129 (YE-GY) | 20 | 12A581 |
| 9 | RR129 (YE-GY) | 22 | 14401 |
| 10 | VR213 (VT-GN) | 20 | 12A581 |
| 10 | VR213 (VT-GN) | 22 | 14401 |
| 11 | CLF04 (BN-BU) | 20 | |
| 12 | VDB04 (WH-BU) | 20 | 12A581 |
| 12 | VDB04 (WH-BU) | 22 | 14401 |
| 13 | VDB05 (WH) | 20 | 12A581 |
| 13 | VDB05 (WH) | 22 | 14401 |
| 14 | CH311 (VT) | 26 | 14401 |
| 14 | CH311 (VT-GN) | 22 | 12A581 |
| 15 | CH312 (YE) | 26 | 14401 |
| 15 | CH312 (YE-OG) | 20 | 12A581 |
| 16 | CBB66 (BU-WH) | 14 | 12A581 |
| 16 | CBB66 (BU-WH) | 16 | 14401 |
| 17 | CRH04 (VT-GN) | 22 | |
| 18 | * | * | |
| 19 | CH310 (GN) | 22 | 12A581 |
| 19 | CH310 (GN) | 26 | 14401 |
| 20 | CBK03 (GY) | 20 | 12A581 |
| 20 | CBK03 (GY) | 22 | 14401 |
| 21 | CBB22 (GN-OG) | 14 | 12A581 |
| 21 | CBB22 (GN-OG) | 16 | 14401 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1463 |
Service Part Number: GU2Z-14S411-GA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1482 |
Service Part Number: GU2Z-14S411-GB Gauge: 14 16 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
