Connector End View (C205) - HEADLAMP SWITCH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CLN13 (WH-BU) | 22 | SWITCH - TRUNK/CARGO LAMP | |
| 3 | CLN56 (BN) | 26 | DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN | |
| 4 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 5 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 6 | CLN55 (YE) | 26 | DIMMER - IP/SWITCH ILLUMINATION # DIM UP | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | CLF23 (WH) | 26 | SWITCH - HEADLAMP OFF | |
| 11 | CLS34 (GY) | 22 | SWITCH - PARK LAMPS | |
| 12 | CLF24 (YE-BU) | 22 | SWITCH - HEADLAMP ON | |
| 13 | CLF19 (GN) | 26 | SWITCH - AUTOLAMP (1) ON | |
| 14 | CLF21 (VT) | 26 | SWITCH - FOG LAMPS FRONT | |
| 15 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 16 | * | * | Not Used |

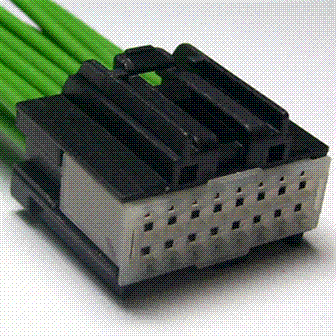

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1294 |
Service Part Number: CU2Z-14S411-AJA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Rearview Mirror - Rearview (electrochromatic) |
