Connector End View (C202) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
See Below
MALE
Harness 12A581
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | SBB49 (RD) | 6 | |
| 2 | * | * |

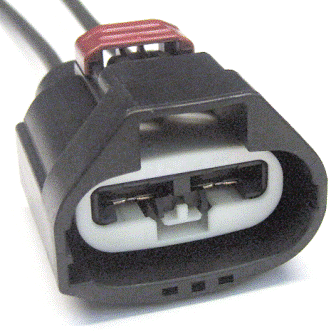

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-910 |
Service Part Number: 8U2Z-14S411-SA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses: Module - Power Moonroof |
