Connector End View (C191) - INTAKE MANIFOLD TUNING VALVE (IMTV)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | GD113 (BK-YE) | 18 | GROUND - COWL TOP RIGHT | |
| 3 | CE316 (GN) | 18 | CTRL MOD. - POWERTRAIN # INTAKE MANIFOLD TUNING VALVE (IMTV) | |
| 4 | * | * | Not Used |

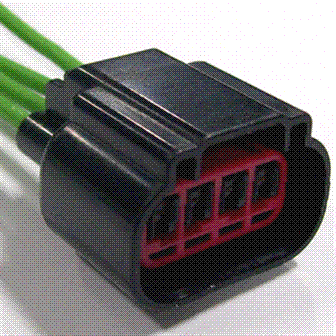

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1339 |
Service Part Number: 3U2Z-14S411-SPC Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Intake Manifold Valve Coil - Ignition Lamp - Front Cornering/Turn Lamp - Park/Turn Sensor - Intake Manifold Runner Control Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature Switch - Sliding Door Contact |
