Connector End View (C162) - FOG LAMP, RIGHT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
15K867
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD131 (BK-GY) | 20 | GROUND - HEADLAMP PANEL/GOR RIGHT | |
| 2 | CLF34 (YE-OG) | 20 | CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON |

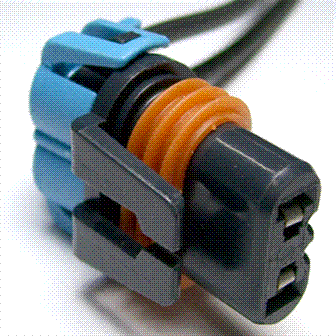

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1080 |
Service Part Number: 1U2Z-14S411-FC Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - Fog/Driving Lamp - Headlamp - High Beam |
