Connector End View (C145) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
See Below
MALE
Harness 12A581
FEMALE
Harness 7C078
| Pin | Circuit | Gauge | Qualifier |
| 1 | CCF08 (GY-OG) | 16 | 4x4 |
| 2 | CCF14 (GN-OG) | 20 | 4x4 |
| 2 | RE407 (YE-VT) | 20 | manual |
| 3 | CCF15 (BN-YE) | 20 | 4x4 |
| 3 | CET47 (BU) | 20 | manual |
| 4 | CCF16 (VT-GN) | 20 | 4x4 |
| 5 | CCF17 (WH-OG) | 20 | 4x4 |
| 6 | RCF09 (BN-WH) | 20 | 4x4 |
| 7 | CCF22 (BU-OG) | 16 | 7C078 - 4x4 |
| 7 | CCF22 (BU-OG) | 20 | 12A581 - 4x4 |
| 8 | CCF03 (GY-BN) | 16 | 4x4 |
| 9 | CCF07 (BN-GN) | 16 | 4x4 |
| 10 | CE233 (WH-OG) | 18 | 7C078 - manual |
| 10 | CE233 (WH-OG) | 20 | 12A581 - manual |
| 11 | CE234 (BU-WH) | 18 | 7C078 - manual |
| 11 | CE234 (BU-WH) | 20 | 12A581 - manual |
| 12 | VE731 (YE-GN) | 18 | 7C078 - manual |
| 12 | VE731 (YE-GN) | 20 | 12A581 - manual |
| 13 | CCF06 (BU-GN) | 16 | 7C078 - 4x4 |
| 13 | CCF06 (BU-GN) | 20 | 12A581 - 4x4 |
| 13 | RE242 (GN) | 18 | 7C078 - manual |
| 13 | RE242 (GN) | 20 | 12A581 - manual |
| 14 | RE242 (GN) | 18 | 7C078 - manual |
| 14 | RE242 (GN) | 20 | 12A581 - manual |
| 15 | VE733 (WH) | 18 | 7C078 - manual |
| 15 | VE733 (WH) | 20 | 12A581 - manual |
| 16 | CBK02 (GN) | 16 | manual |

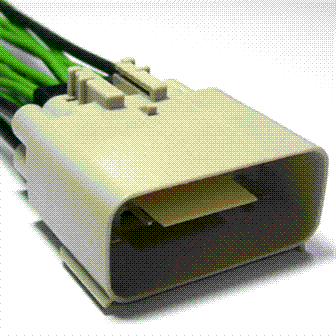

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1092 |
Service Part Number: AU2Z-14S411-AKA Gauge: 12 16 Pin material: Tin & Silver Cavities: 16 Vehicle Uses: Connector - Inline |
