Connector End View (C138) - WASHER FLUID LEVEL SWITCH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CMC20 (VT) | 20 | SWITCH - LOW LEVEL WASHER FLUID | |
| 2 | GD216 (BK-VT) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |

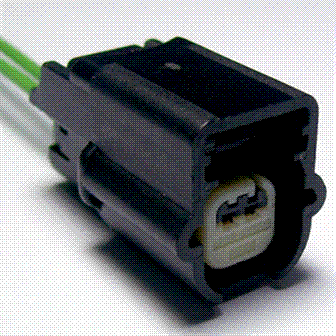

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1314 |
Service Part Number: 8U2Z-14S411-AAC Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer |
