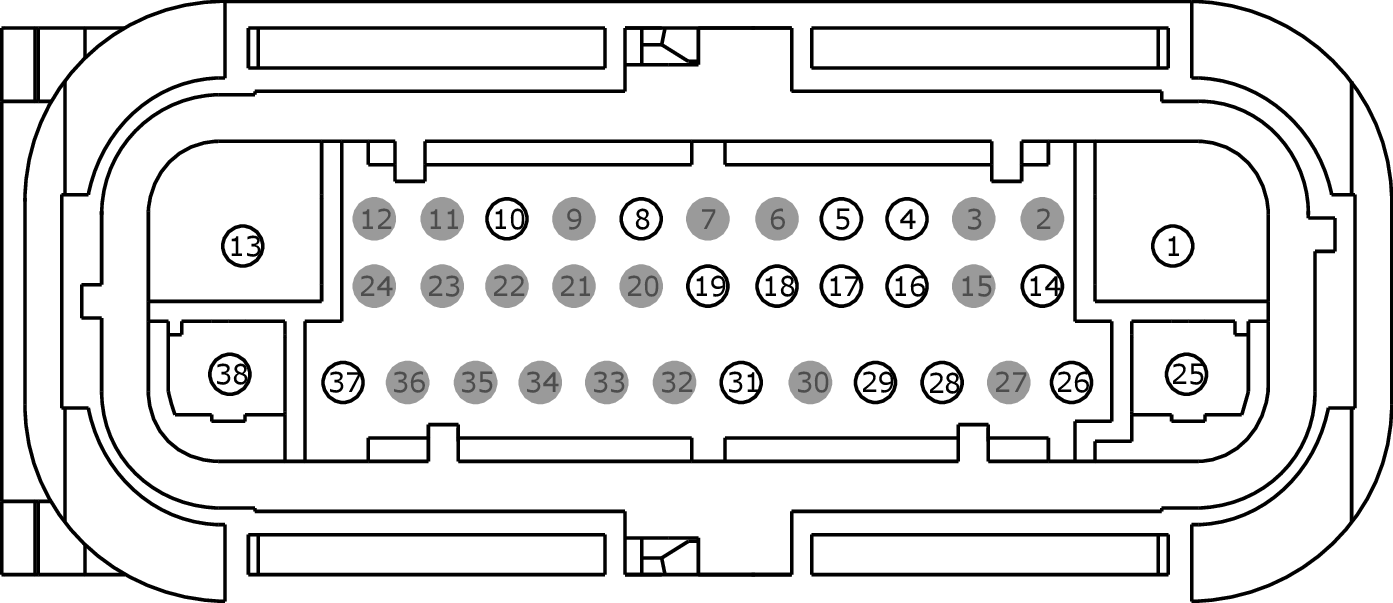

Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

14405

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB52 (GN-RD)	10	FUSE - 52 OR CIRCUIT BREAKER
2	*	*	Not Used
3	*	*	Not Used
4	RCA19 (VT)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT
5	LCA37 (YE-OG)	20	CTRL MOD. - SENSOR BRAKE VACUUM +
6	*	*	Not Used
7	*	*	Not Used
8	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT
9	*	*	Not Used
10	RCA37 (WH-BU)	20	CTRL MOD. - SENSOR BRAKE VACUUM -
11	*	*	Not Used
12	*	*	Not Used
13	GD121 (BK-YE)	10	GROUND - FENDER FRONT LEFT # 2ND POINT
14	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
15	*	*	Not Used
16	VCA05 (GY-VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT
17	VCA06 (WH-OG)	20	SENSOR - WHEEL SPEED RIGHT REAR
18	RCA18 (BN-GN)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR
19	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
24	*	*	Not Used
25	SBB59 (BU-RD)	12	FUSE - 59 OR CIRCUIT BREAKER
26	VDB25 (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
27	*	*	Not Used
28	CBB32 (GN-VT)	20	FUSE - 32 OR CIRCUIT BREAKER
29	RCA20 (BN)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR
30	*	*	Not Used
31	VCA04 (BU-OG)	20	SENSOR - WHEEL SPEED LEFT REAR
32	*	*	Not Used
33	*	*	Not Used
34	*	*	Not Used
35	*	*	Not Used
36	*	*	Not Used
37	VCA38 (BN-VT)	20	SENSOR - BRAKE VACUUM SIGNAL 1
38	GD121 (BK-YE)	12	GROUND - FENDER FRONT LEFT # 2ND POINT
