Connector End View (C134) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Base Part #
Service Pigtail
See Below

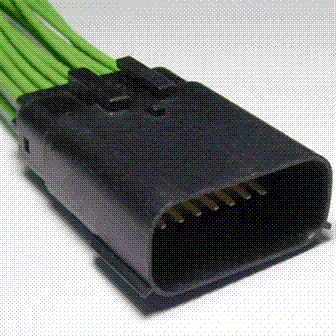

MALE
Harness 12A581

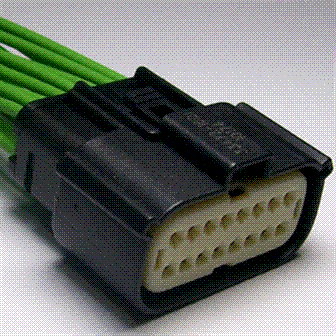

FEMALE
Harness 15K867
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | CBB31 (BU-OG) | 20 | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | GD129 (BK-YE) | 20 | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | CLF29 (BN) | 20 | 15K867 |
| 10 | CLF29 (BN) | 22 | 12A581 |
| 11 | CLF34 (YE-OG) | 20 | 15K867 |
| 11 | CLF34 (YE-OG) | 22 | 12A581 |
| 12 | VDB26 (GY-BU) | 20 | |
| 13 | VDB25 (GN-OG) | 20 | |
| 14 | GD131 (BK-GY) | 20 | |
| 15 | * | * | |
| 16 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1404 |
Service Part Number: EU2Z-14S411-VA Gauge: 16 Pin material: Silver Cavities: 16 Vehicle Uses: Mating Connector WPT-1279 Mirror - Sideview |
| Pigtail Kit Part Number WPT-1279 |
Service Part Number: CU2Z-14S411-ADA Gauge: 16 Pin material: Silver Cavities: 16 Vehicle Uses: Lamp - Headlamp - High/Low Beam Mating Connector WPT-1404 Module - Heated Seat (driver) Module - Transfer Case Shift Control |
