Connector End View (C133) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness 12C508
FEMALE
Harness PIA
| Pin | Circuit | Gauge | Qualifier |
| 1 | VE801 (VT-OG) | 18 | 12C508 - 6.2L, 6.8L |
| 1 | VE801 (VT-OG) | 20 | PIA - 6.2L, 6.8L |
| 2 | RE323 (WH-BN) | 18 | 12C508 - 6.8L |
| 2 | RE323 (WH-BN) | 20 | PIA - 6.8L |
| 2 | VE802 (BN-BU) | 18 | 12C508 - 6.2L |
| 2 | VE802 (BN-BU) | 20 | PIA - 6.2L |
| 3 | VE712 (BU-GY) | 18 | |
| 4 | RE323 (WH-BN) | 18 | 12C508 - 6.2L |
| 4 | RE323 (WH-BN) | 20 | PIA - 6.2L |
| 4 | RE324 (BN-GN) | 18 | 12C508 - 6.8L |
| 4 | RE324 (BN-GN) | 20 | PIA - 6.8L |
| 5 | RE324 (BN-GN) | 18 | 12C508 - 6.2L |
| 5 | RE324 (BN-GN) | 20 | PIA - 6.2L |
| 5 | VE802 (BN-BU) | 18 | 12C508 - 6.8L |
| 5 | VE802 (BN-BU) | 20 | PIA - 6.8L |
| 6 | RE405 (GN-WH) | 18 | PIA |
| 6 | RE454 (YE-GN) | 18 | 12C508 |
| Available Pigtail Kits | |

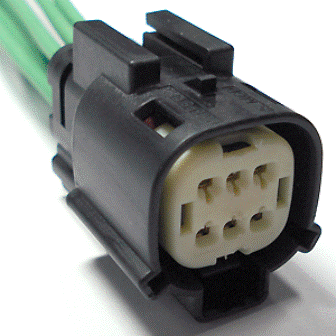

| Pigtail Kit Part Number WPT-1426 |
Service Part Number: FU2Z-14S411-TA Gauge: 16 Pin material: Silver Cavities: 6 Vehicle Uses: Camera - Reverse Park Aid Lamp - Park/Turn/Stop Sensor - Coolant Temperature Sensor - O2 (HEGO/ EGO) |

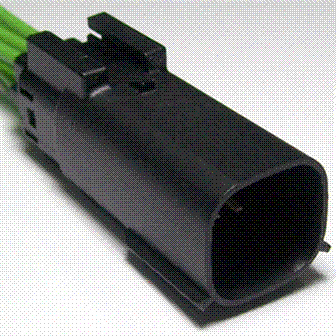

| Pigtail Kit Part Number WPT-971 |
Service Part Number: 3U2Z-14S411-FEAB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline Lamp - Headlamp - High/Low Beam Lamp - Park/Turn/Stop Motor - Engine Cooling Fan Motor - Running Board |
