Connector End View (C131) - HORN
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
WH
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD112 (BK) | 14 | GROUND - COWL TOP LEFT | |
| 2 | CRH02 (BN) | 14 | SWITCH - HORN |

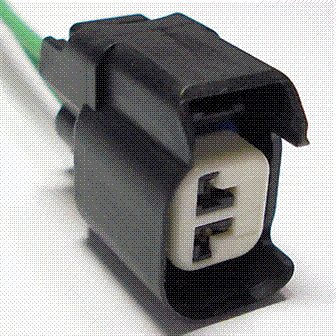

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1051 |
Service Part Number: 5U2Z-14S411-ZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector Horn Switch - Backup Lamp Switch - Hood Ajar |
