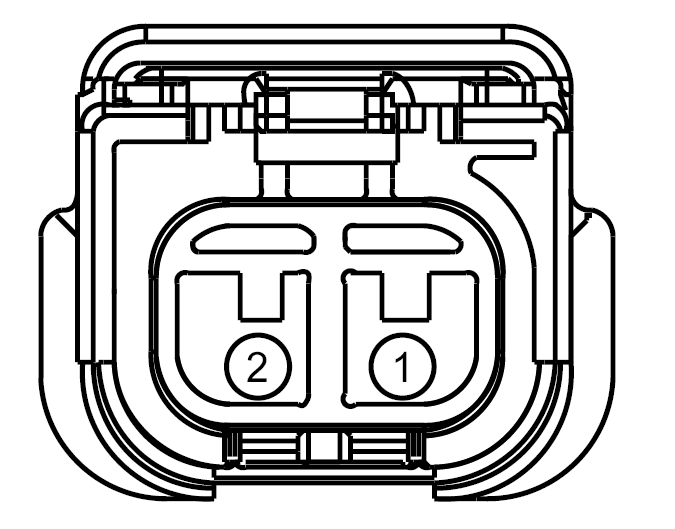

Connector End View (C116) - COIL ON PLUG (COP) 6
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK04 (VT) | 18 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) | |
| 2 | CE308 (VT-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F) |

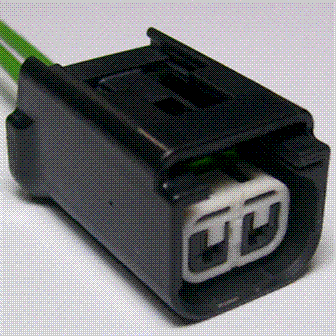

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1133 |
Service Part Number: BU2Z-14S411-FA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Coil - Ignition |
