Connector End View (C110) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Base Part #
Service Pigtail
See Below

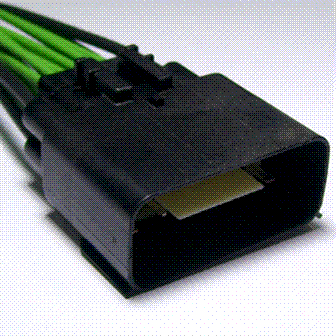

MALE
Harness 14406

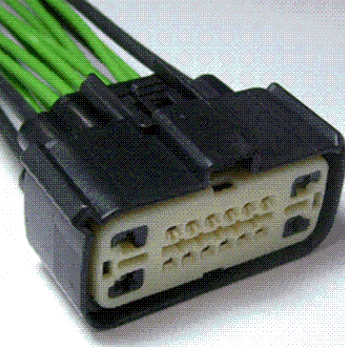

FEMALE
Harness 14405
| Pin | Circuit | Gauge | Qualifier |
| 1 | CBK02 (GN) | 12 | 14406 |
| 1 | CBK02 (GN) | 14 | 14405 |
| 2 | VE838 (VT-GY) | 20 | |
| 3 | LE461 (GY-YE) | 20 | |
| 4 | RE406 (GY-VT) | 20 | |
| 5 | VE529 (GN-OG) | 20 | |
| 6 | CE354 (BN-BU) | 20 | |
| 7 | VE833 (BU-WH) | 20 | |
| 8 | GD406 (BK-YE) | 16 | wide frame |
| 8 | GD476 (BK-WH) | 12 | 14405 - narrow frame |
| 8 | GD476 (BK-WH) | 16 | 14406 - narrow frame |
| 9 | CBK04 (VT) | 16 | |
| 10 | CE352 (YE-GY) | 16 | |
| 11 | RE406 (GY-VT) | 20 | |
| 12 | VE348 (GN-OG) | 20 | |
| 13 | VE349 (BN-YE) | 20 | |
| 14 | VE348 (GN-OG) | 20 | |
| 15 | VE349 (BN-YE) | 20 | |
| 16 | CE356 (BU-OG) | 16 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1393 |
Service Part Number: 7U2Z-14S411-KB Gauge: 14 18 Pin material: Tin & Silver Cavities: 16 Vehicle Uses: Connector - Inline For Mating Connector Refer To WPT-1142 |
| Pigtail Kit Part Number WPT-1491 |
Service Part Number: 7U2Z-14S411-JC Gauge: 14 16 Pin material: Tin & Silver Cavities: 16 Vehicle Uses: Connector - Inline Switch - Turn Signal |
