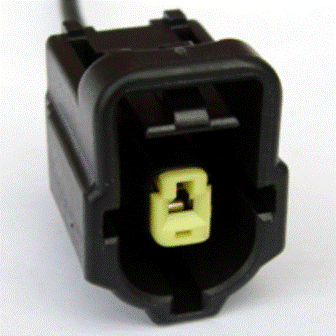

Connector End View (C103) - OIL PRESSURE SWITCH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CMC24 (GY) | 18 | SWITCH - OIL PRESSURE |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-439 |
Service Part Number: 3U2Z-14S411-MHA Gauge: 14 Pin material: Tin Cavities: 1 Vehicle Uses Sensor - Oil Pressure Switch - Oil Sending Unit |
