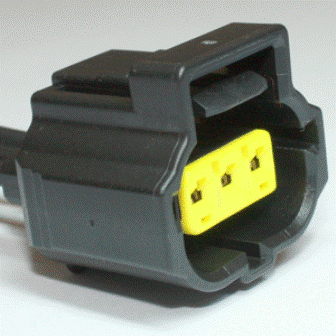

Connector End View (C102A) - GENERATOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14B060
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

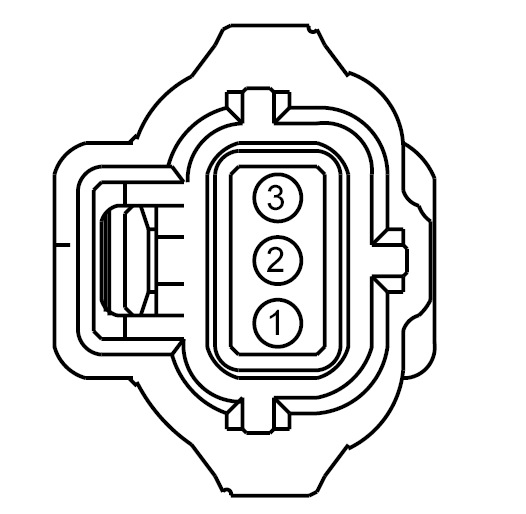

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CDC15 (VT) | 20 | GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) | |
| 2 | CDC09 (YE) | 20 | CTRL MOD. - POWERTRAIN # GENERATOR INDICATOR-LINE CONTROL (ILC) | |
| 3 | SBB98 (YE-RD) | 16 | FUSE - 98 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-118 |
Service Part Number: 1U2Z-14S411-TA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position |
