Transmission Controls - 6R100

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

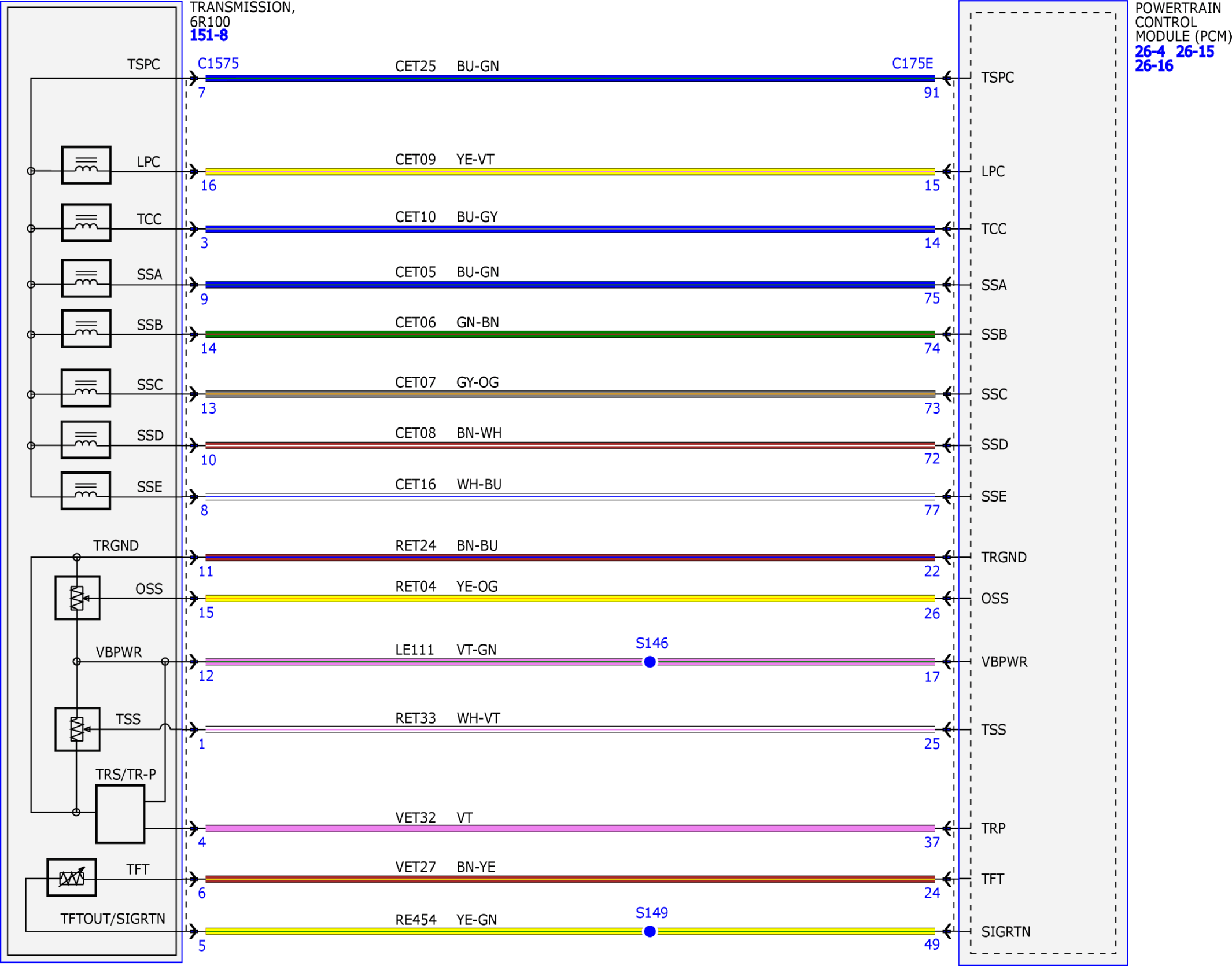

Fig 1: Transmission Controls - 6R100 Wiring Diagram (1 of 2)
GFDW83538Courtesy of FORD MOTOR COMPANY

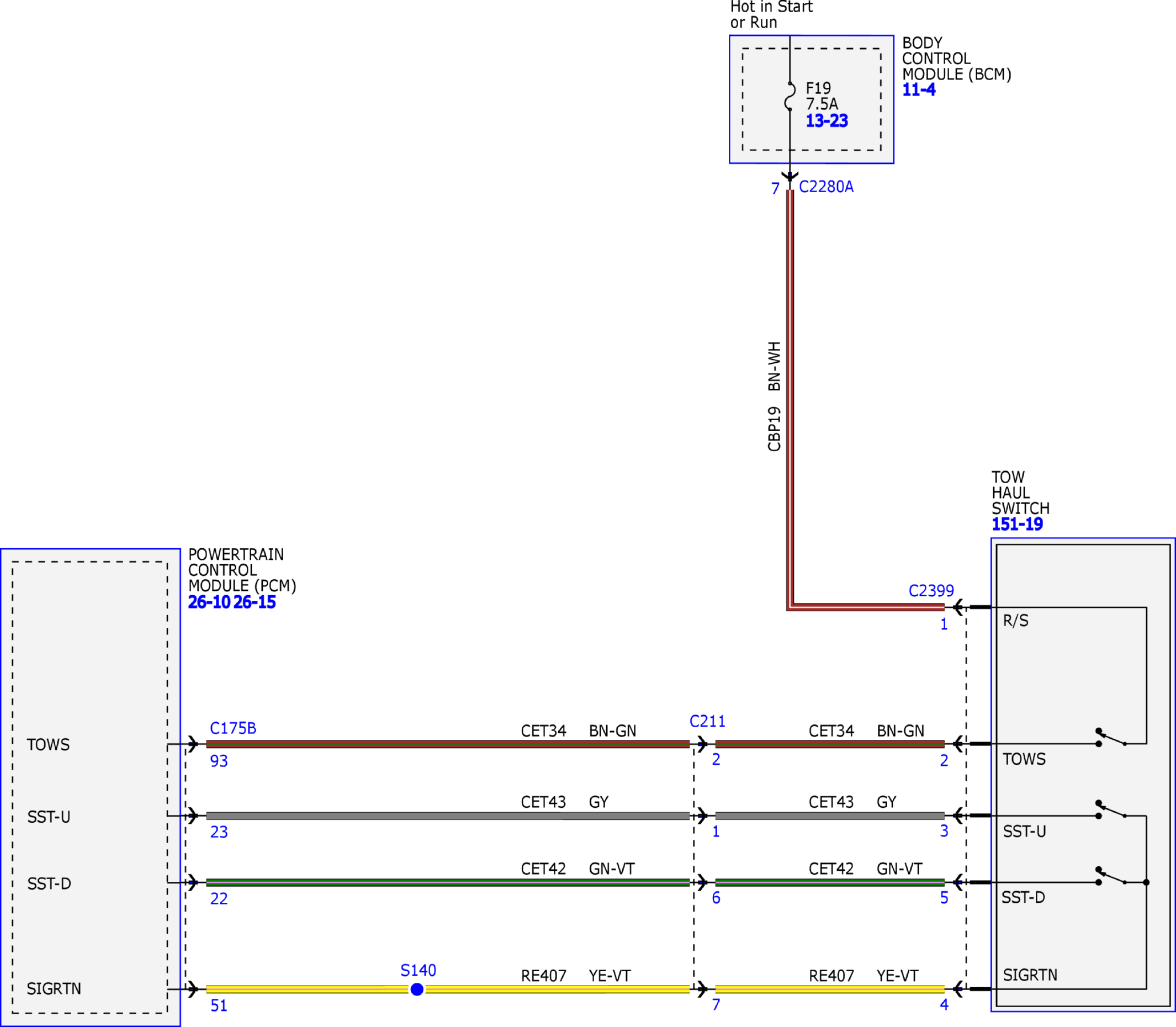

Fig 2: Transmission Controls - 6R100 Wiring Diagram (2 of 2)
GFDW83539Courtesy of FORD MOTOR COMPANY
