Trailer/Camper Adapter

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

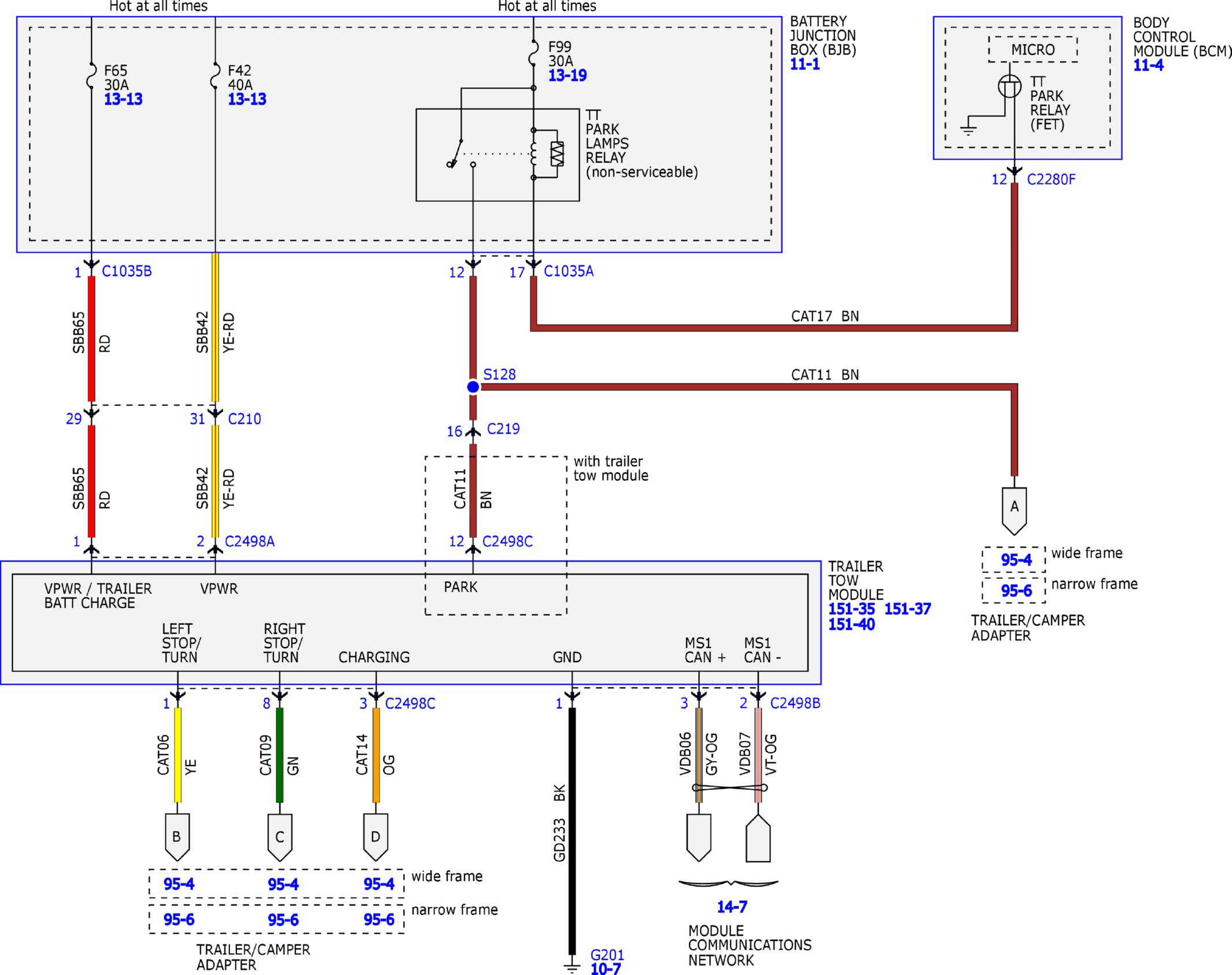

Fig 1: Trailer/Camper Adapter Wiring Diagram (1 of 10)

GFDW83528

Courtesy of FORD MOTOR COMPANY

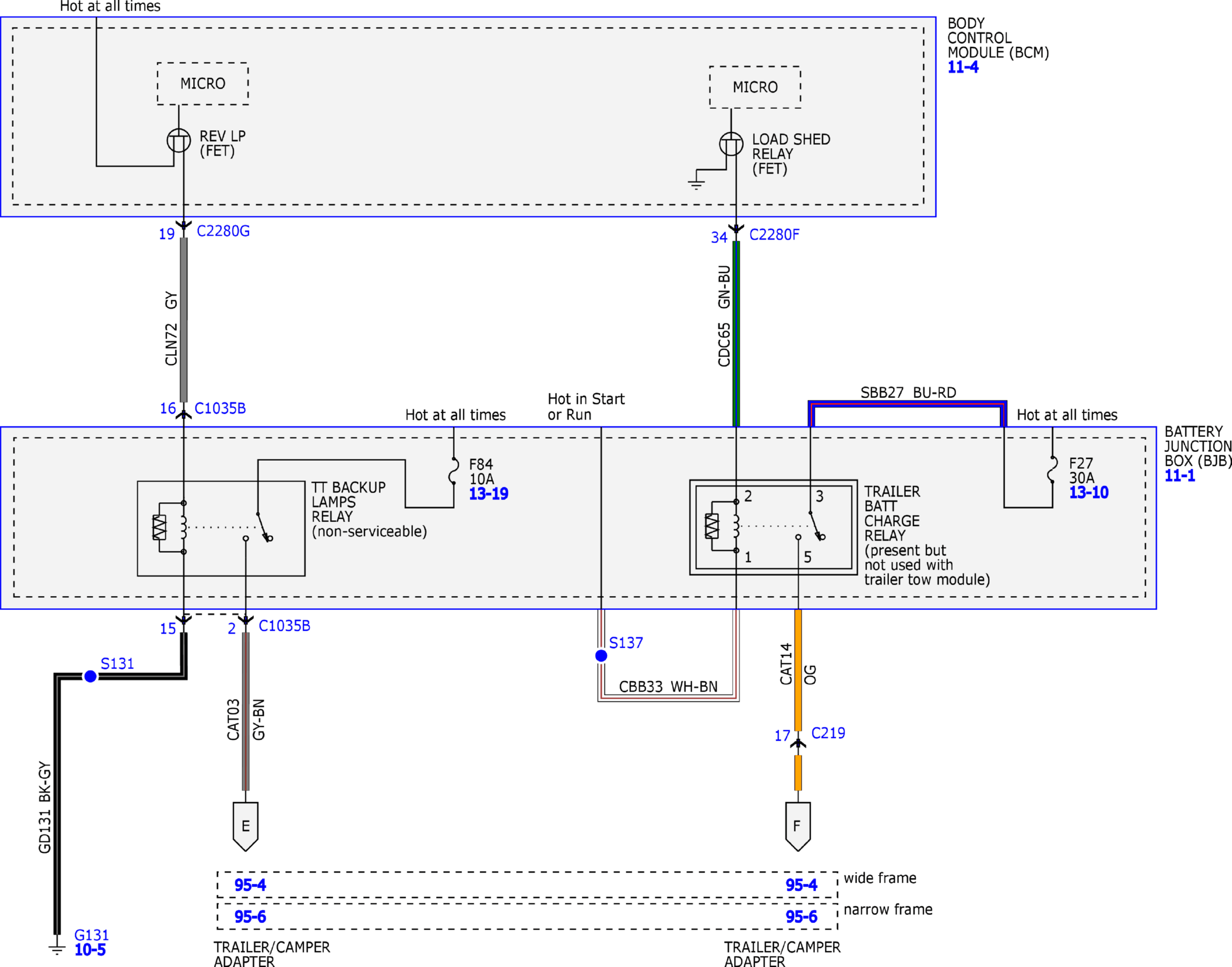

Fig 2: Trailer/Camper Adapter Wiring Diagram (2 of 10)

GFDW83529

Courtesy of FORD MOTOR COMPANY

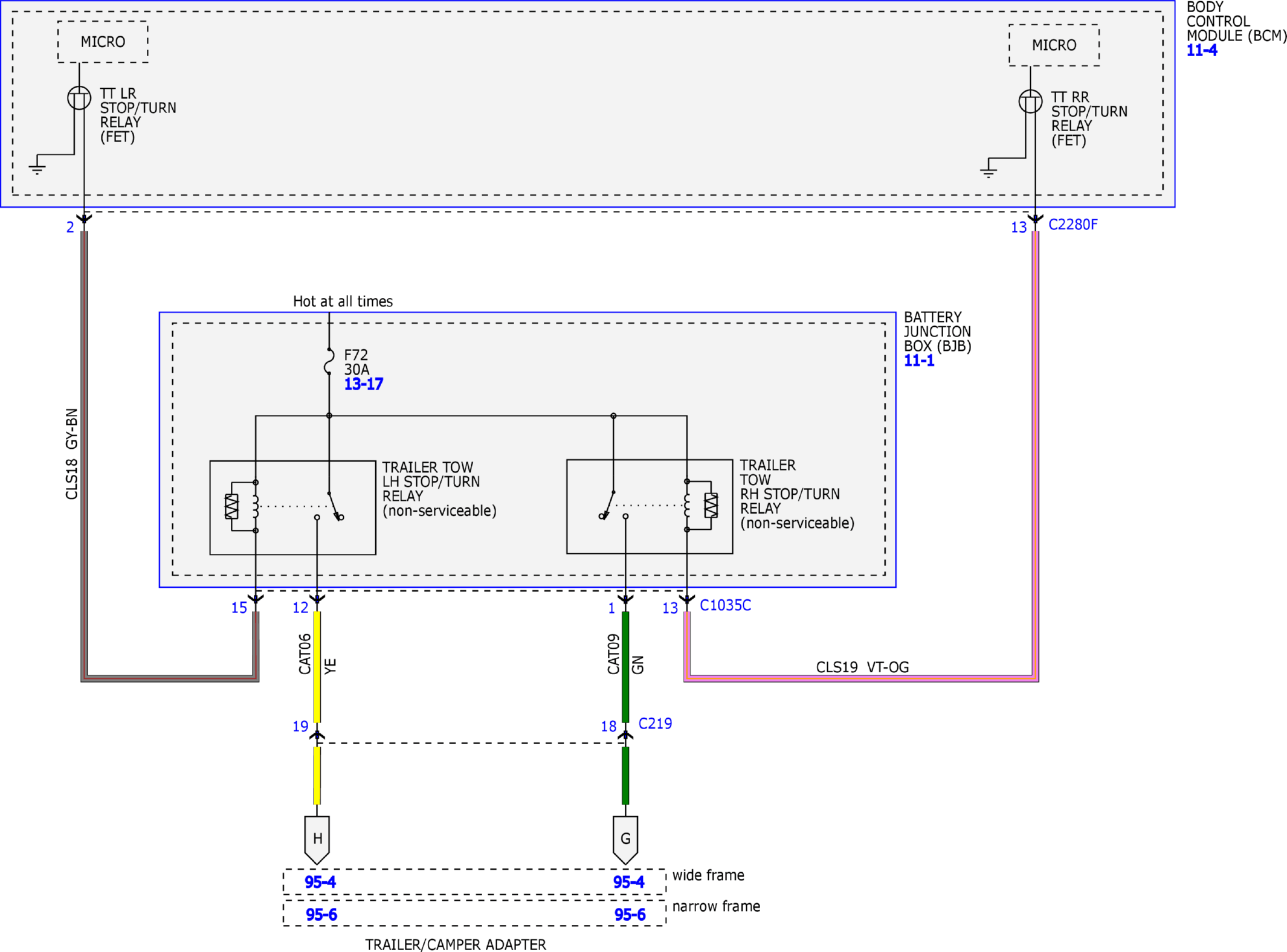

Fig 3: Trailer/Camper Adapter Wiring Diagram (3 of 10)

GFDW83530

Courtesy of FORD MOTOR COMPANY

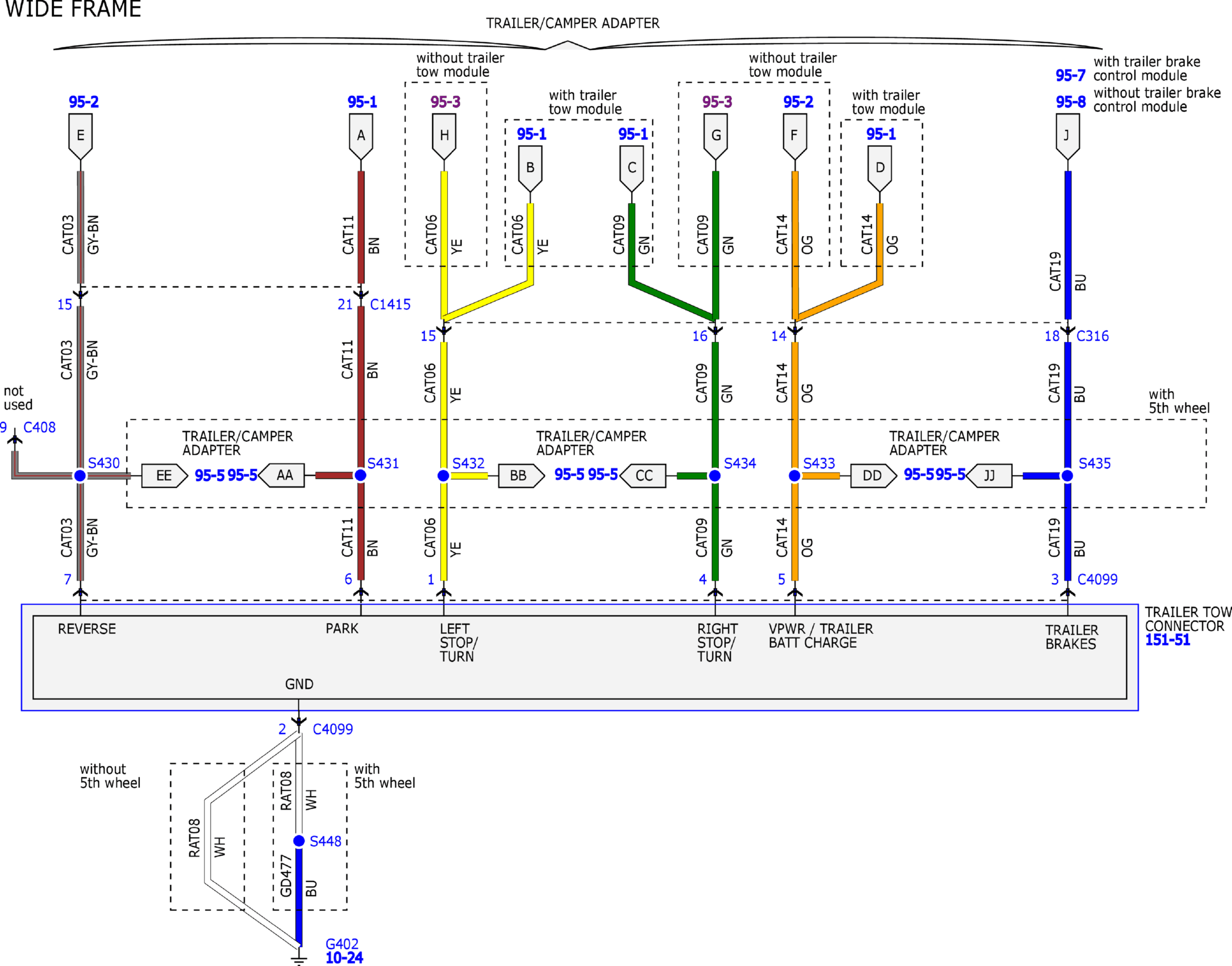

Fig 4: Trailer/Camper Adapter Wiring Diagram (4 of 10)

GFDW83531

Courtesy of FORD MOTOR COMPANY

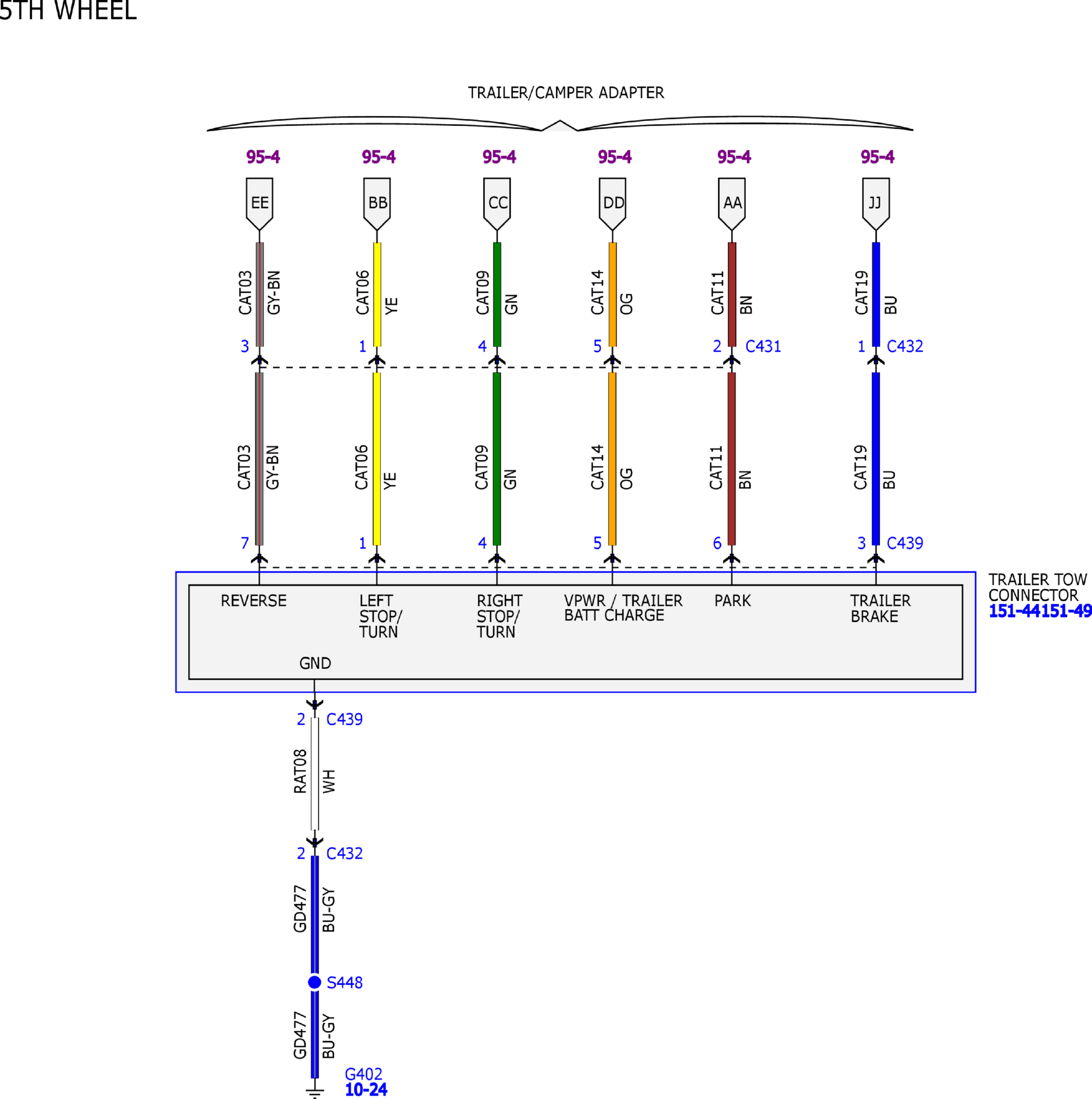

Fig 5: Trailer/Camper Adapter Wiring Diagram (5 of 10)

GFDW83532

Courtesy of FORD MOTOR COMPANY

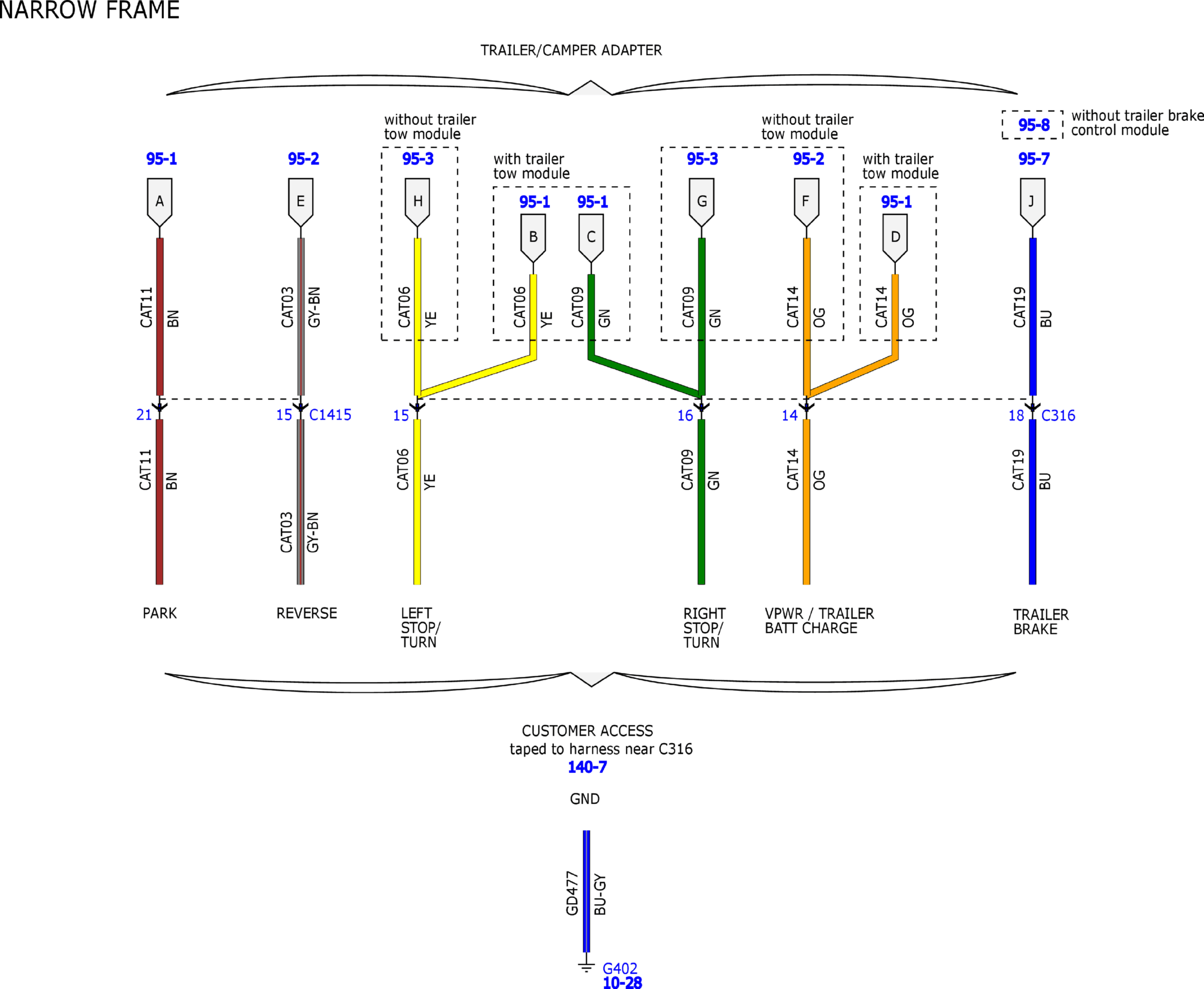

Fig 6: Trailer/Camper Adapter Wiring Diagram (6 of 10)

GFDW83533

Courtesy of FORD MOTOR COMPANY

Fig 7: Trailer/Camper Adapter Wiring Diagram (7 of 10)

GFDW83534

Courtesy of FORD MOTOR COMPANY

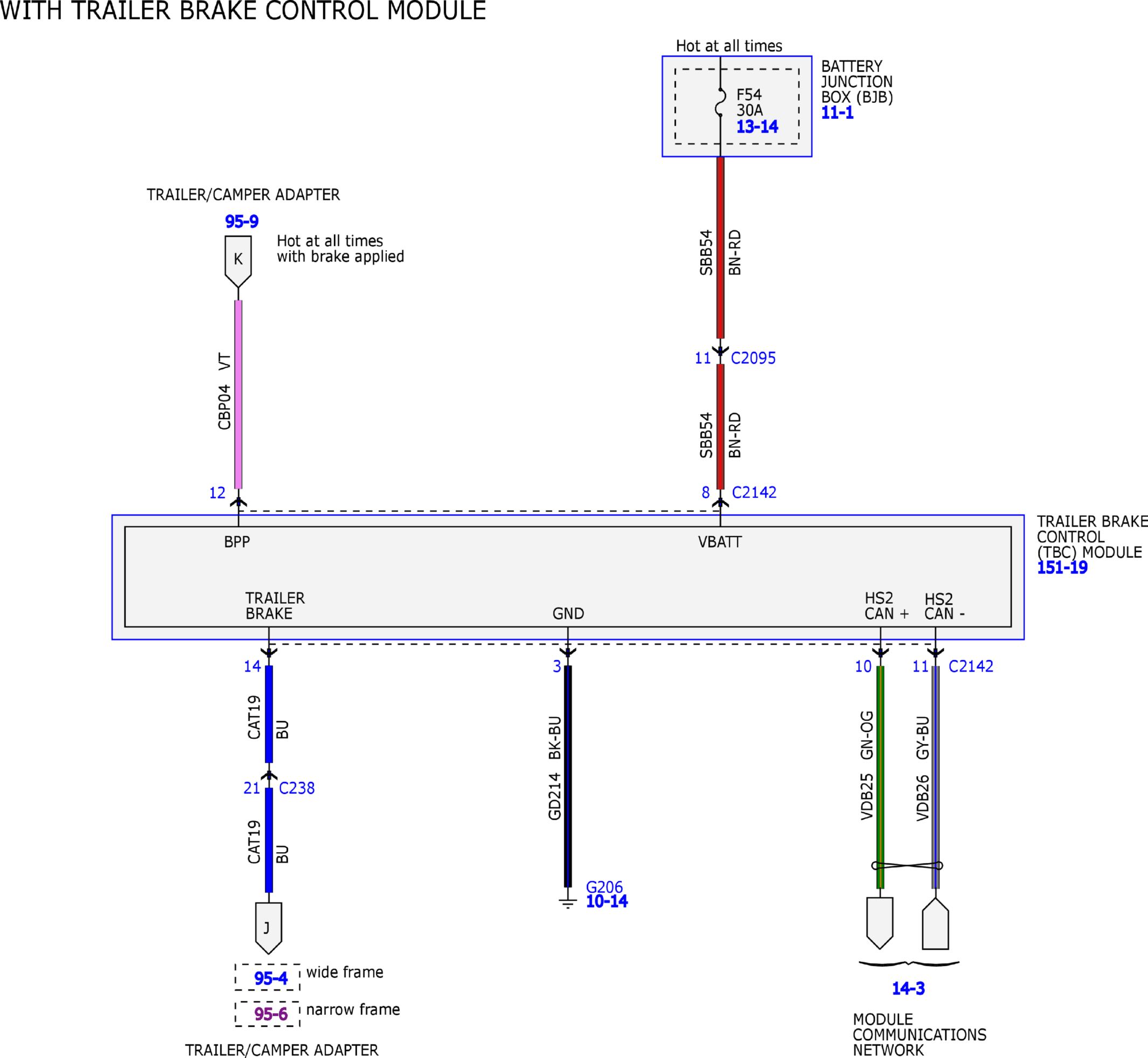

Fig 8: Trailer/Camper Adapter Wiring Diagram (8 of 10)

GFDW83535

Courtesy of FORD MOTOR COMPANY

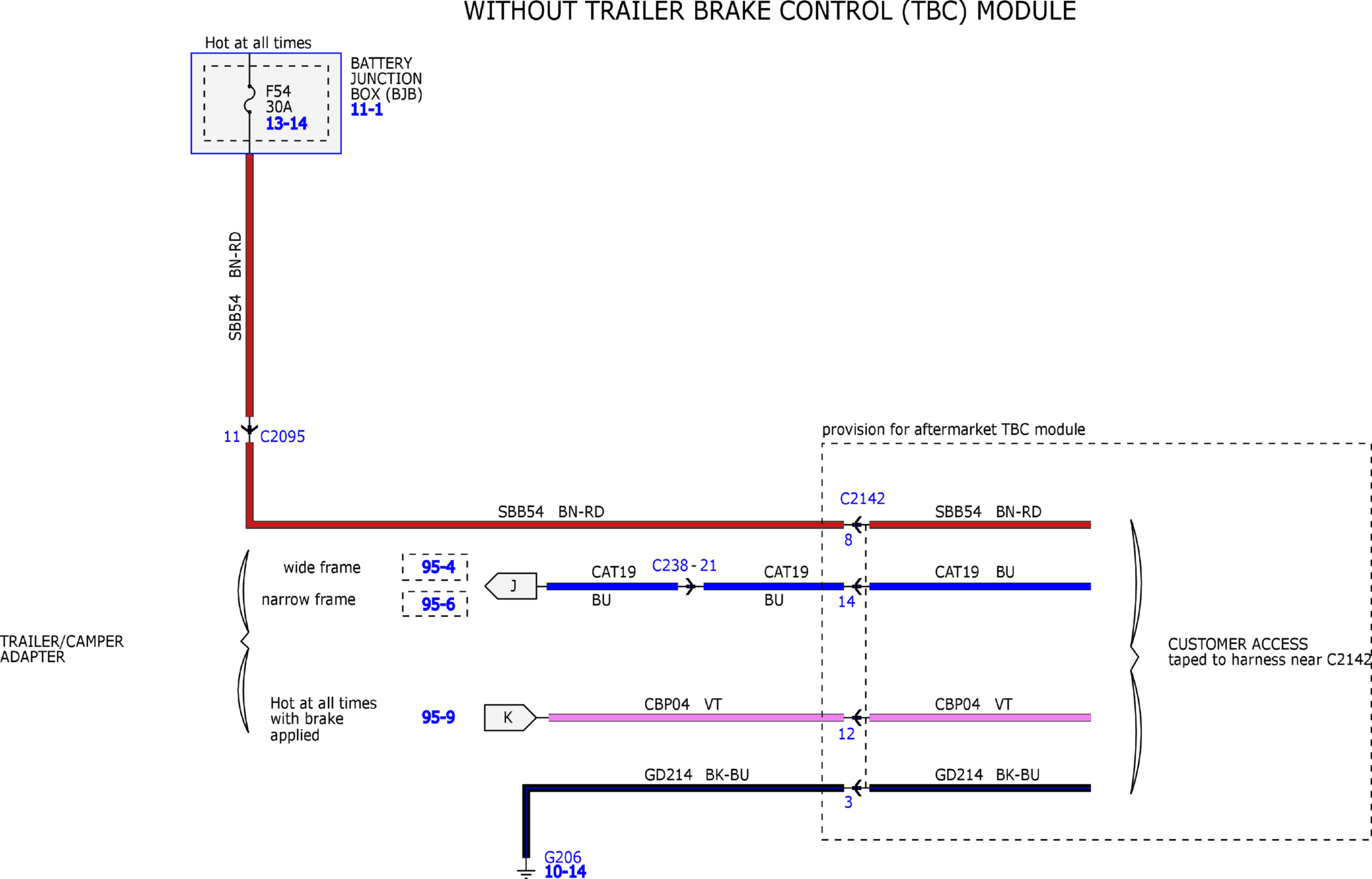

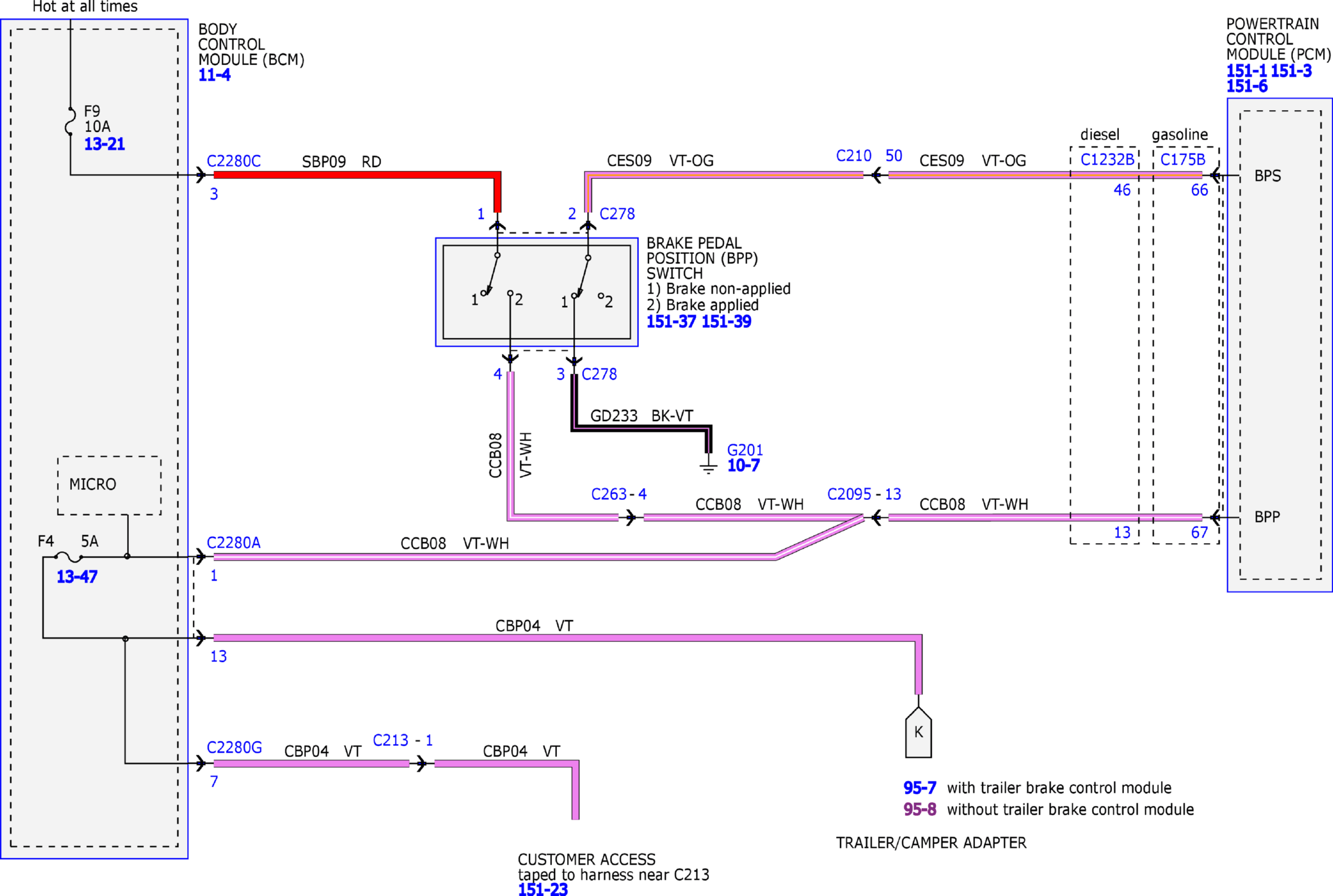

Fig 9: Trailer/Camper Adapter Wiring Diagram (9 of 10)

GFDW83536

Courtesy of FORD MOTOR COMPANY

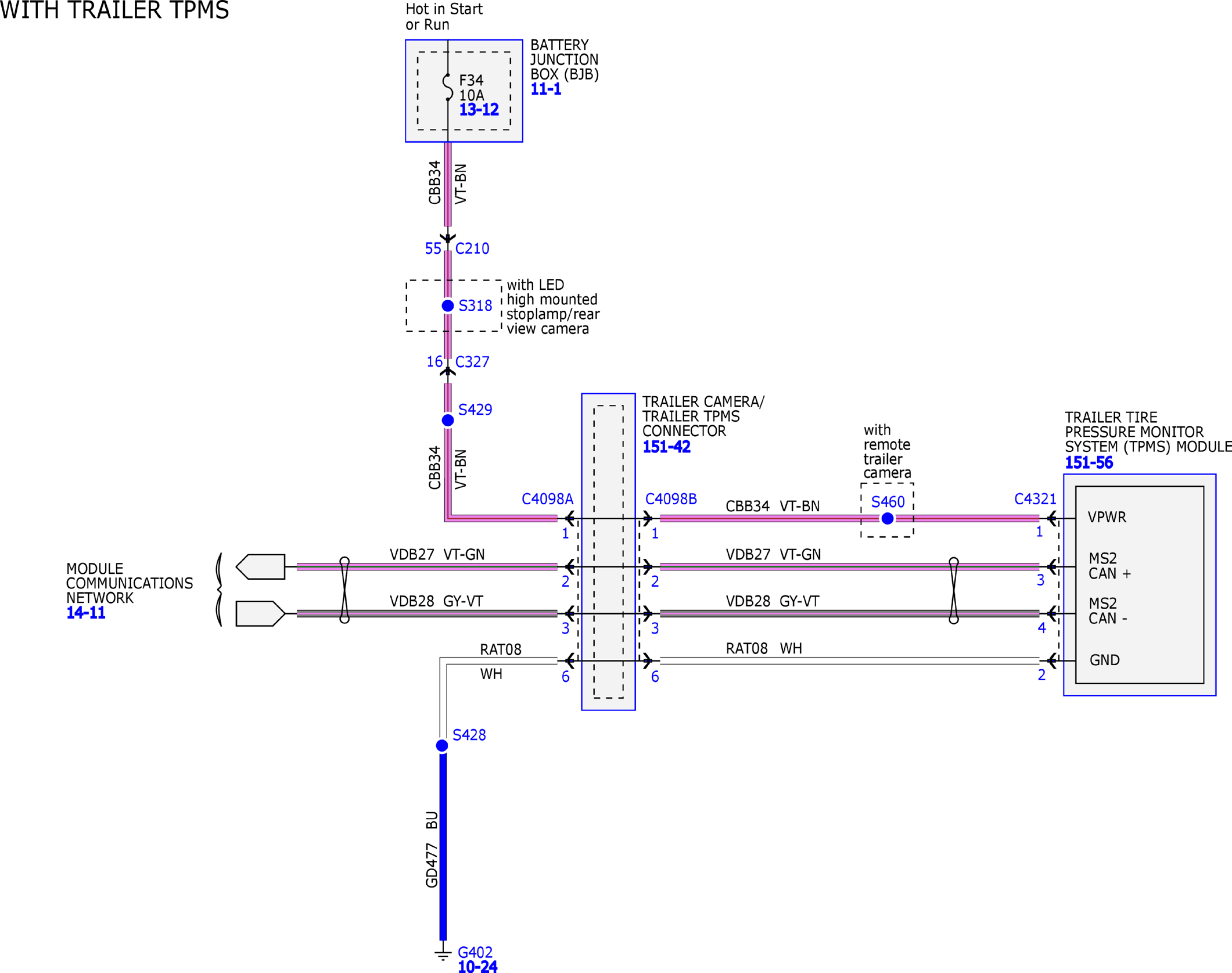

Fig 10: Trailer/Camper Adapter Wiring Diagram (10 of 10)

GFDW83537

Courtesy of FORD MOTOR COMPANY
