Remote Keyless Entry And Alarm

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

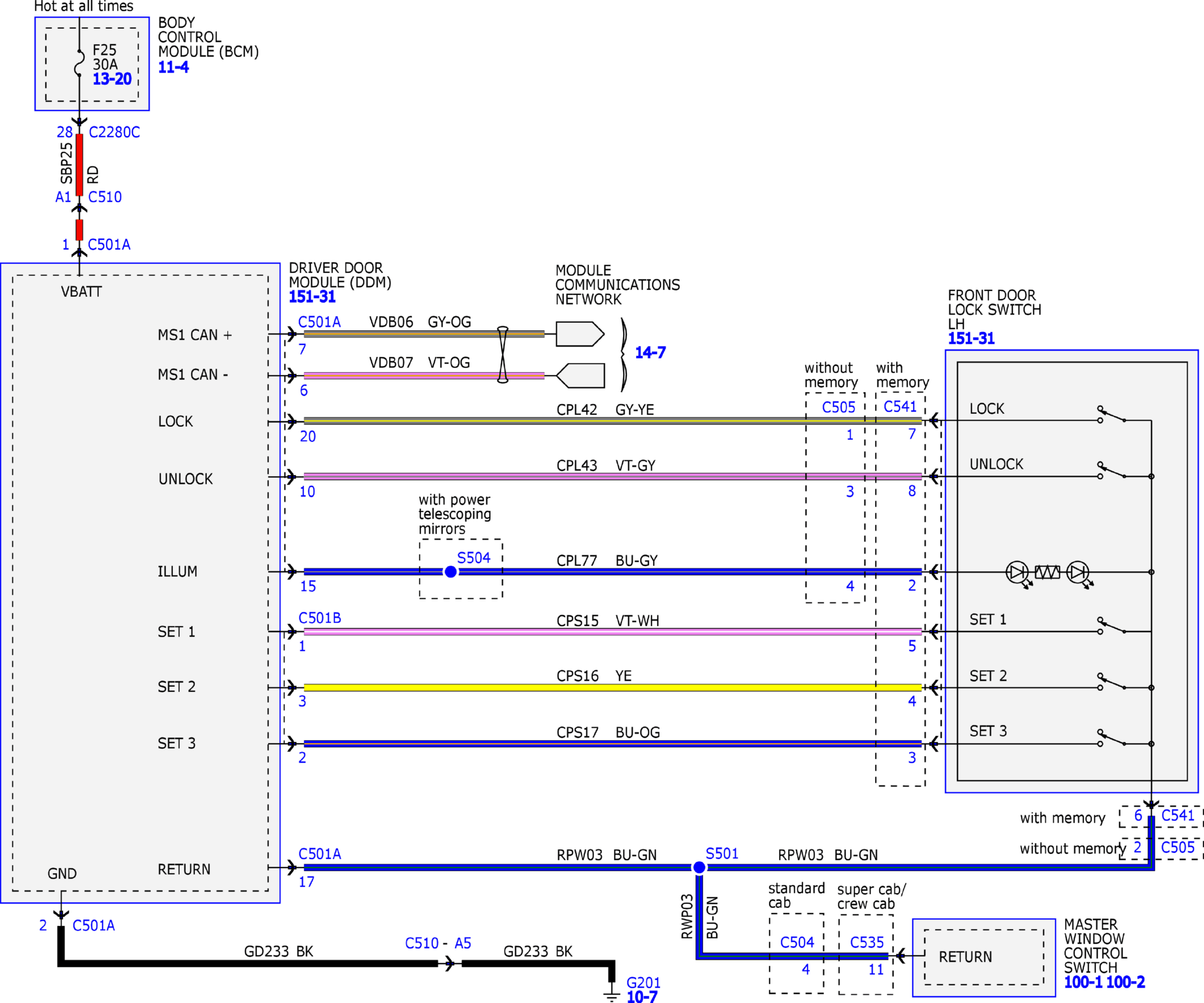

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 of 9)

GFDW83493

Courtesy of FORD MOTOR COMPANY

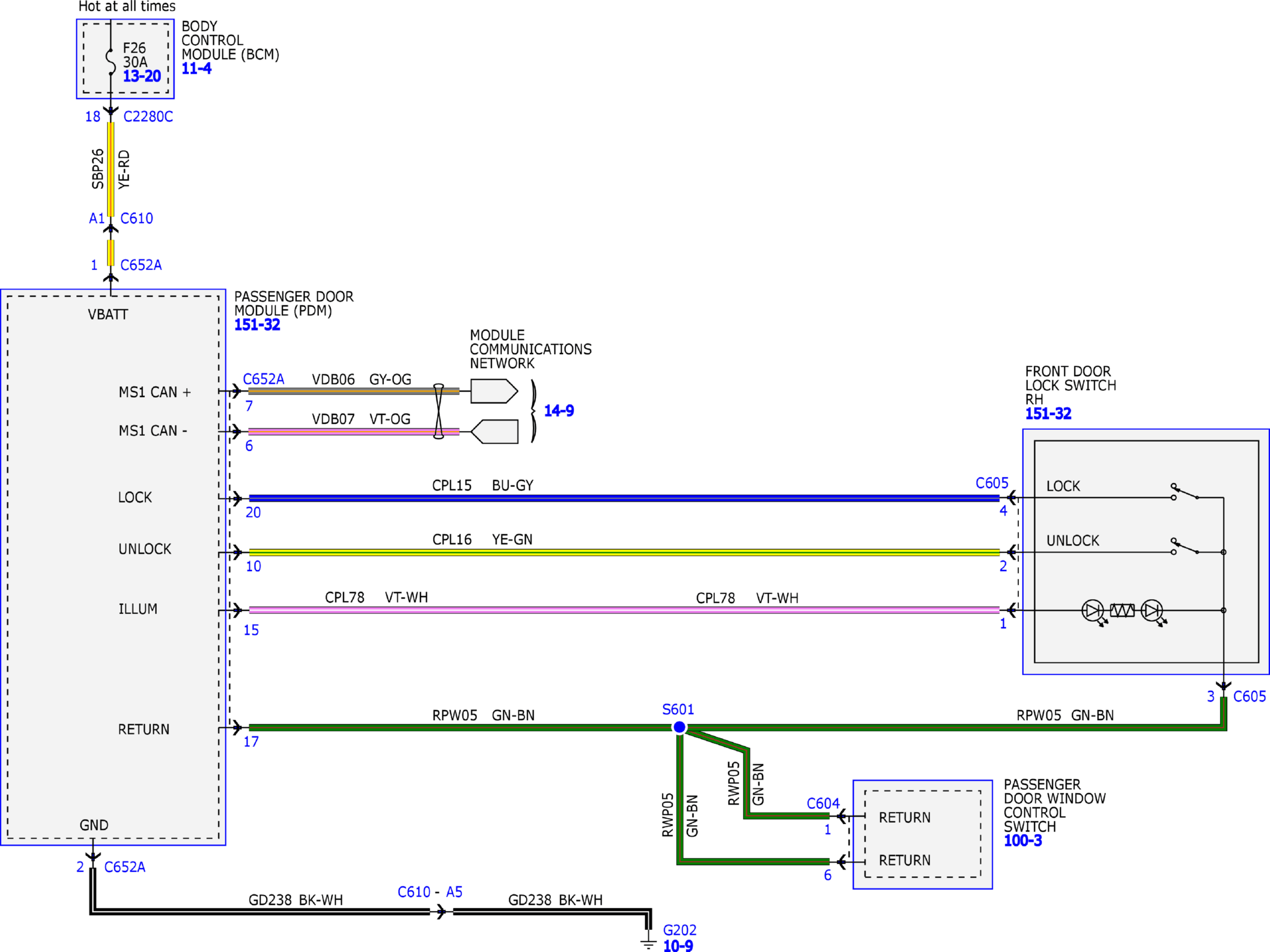

Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 of 9)

GFDW83494

Courtesy of FORD MOTOR COMPANY

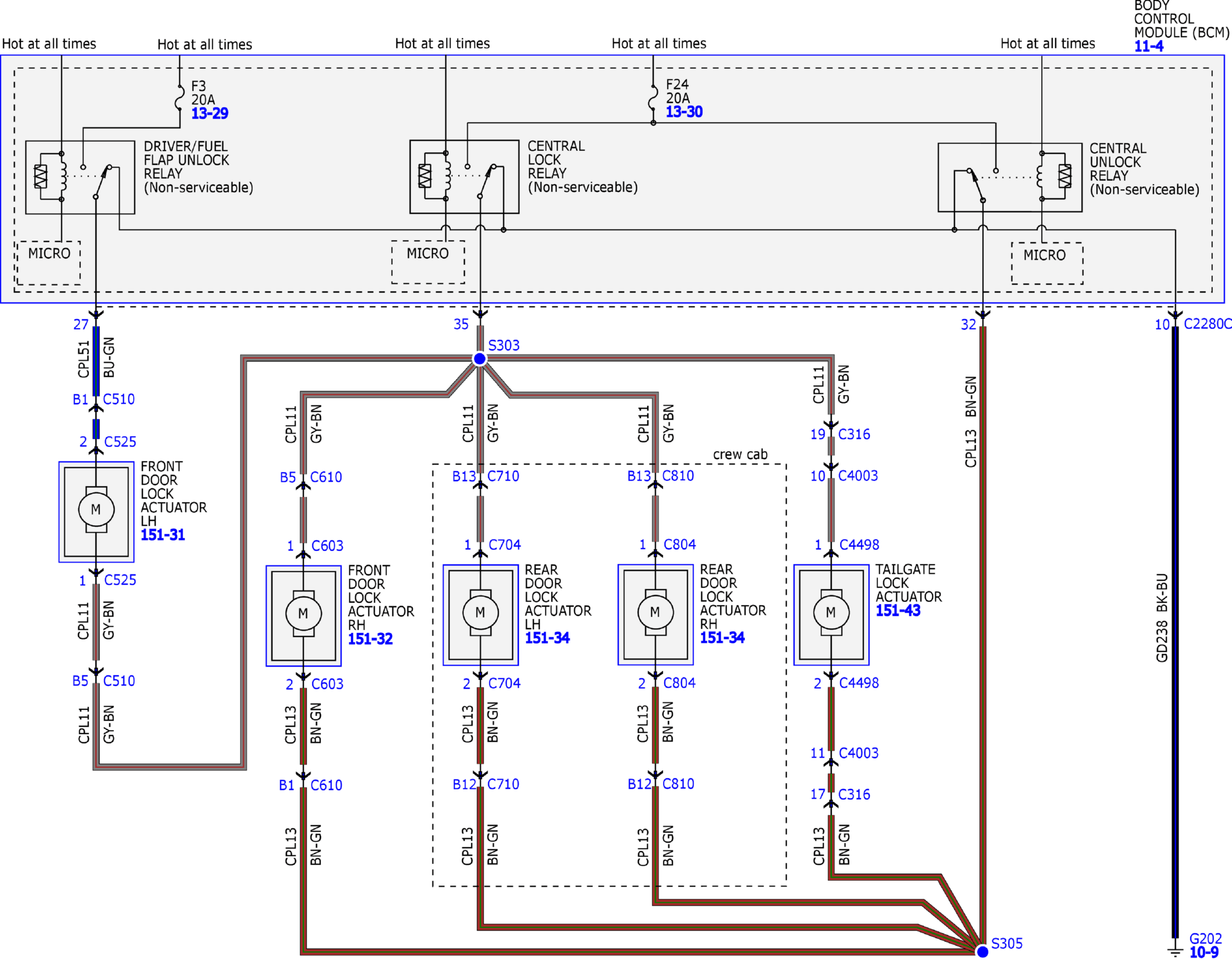

Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 of 9)

GFDW83495

Courtesy of FORD MOTOR COMPANY

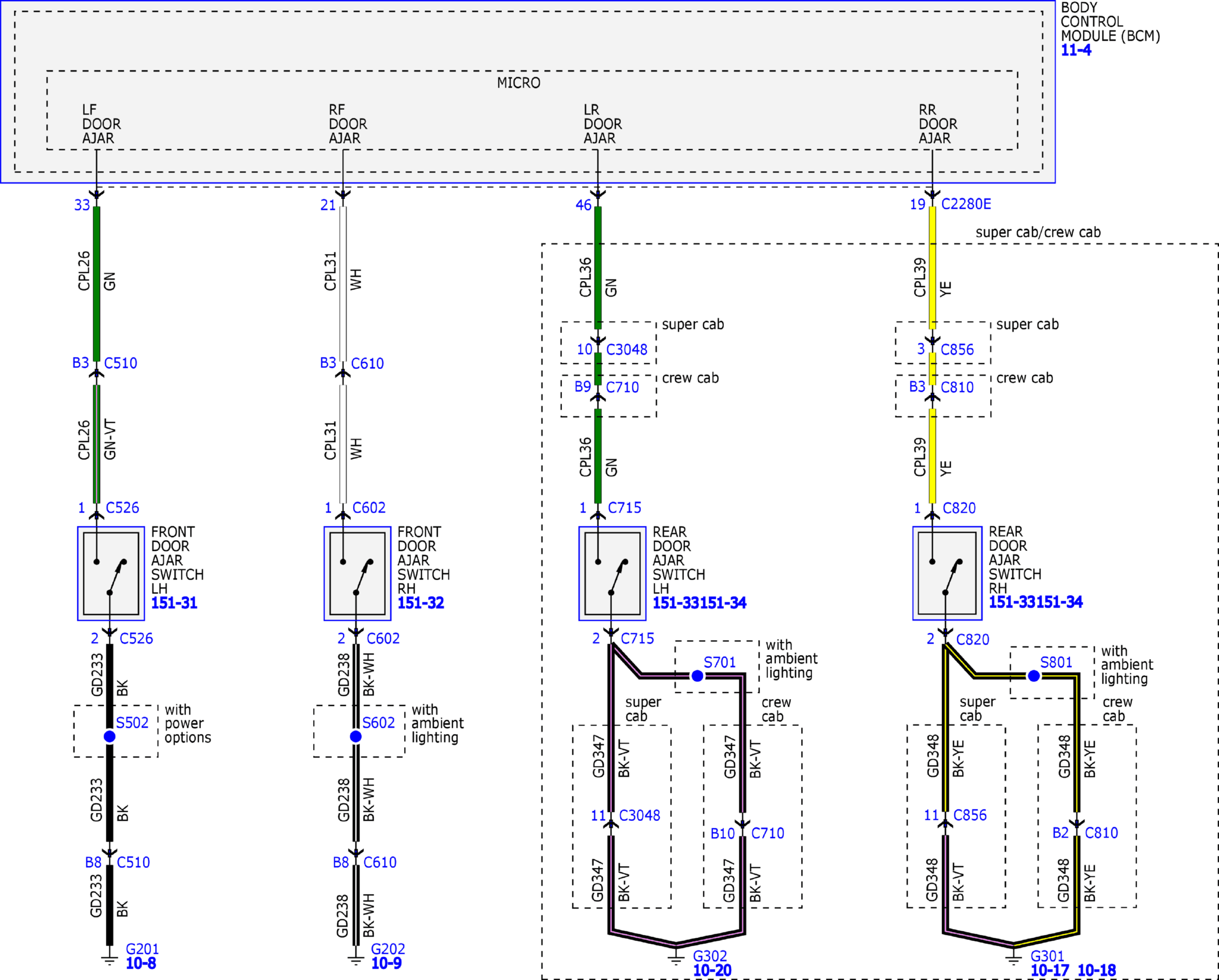

Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 of 9)

GFDW83496

Courtesy of FORD MOTOR COMPANY

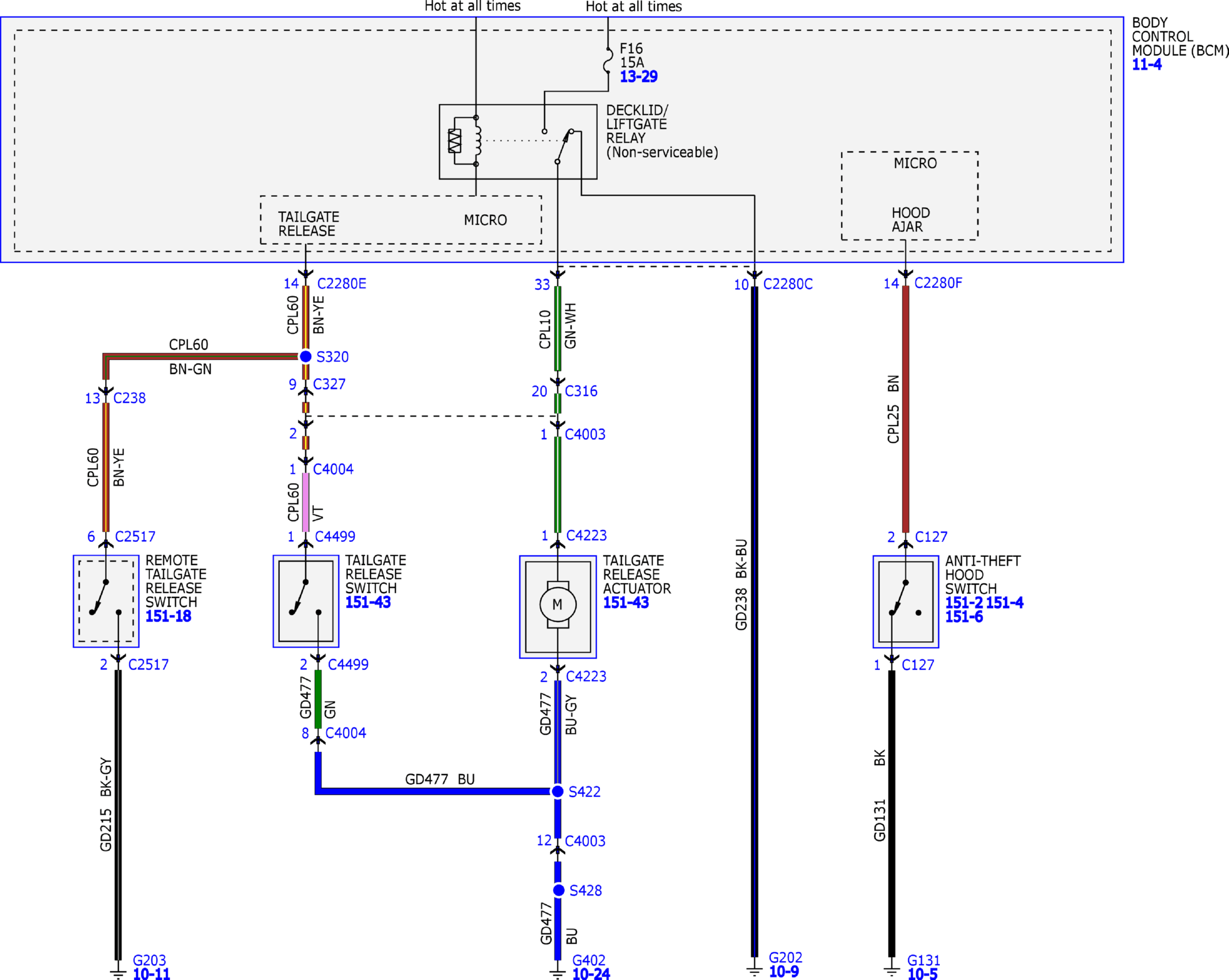

Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 of 9)

GFDW83497

Courtesy of FORD MOTOR COMPANY

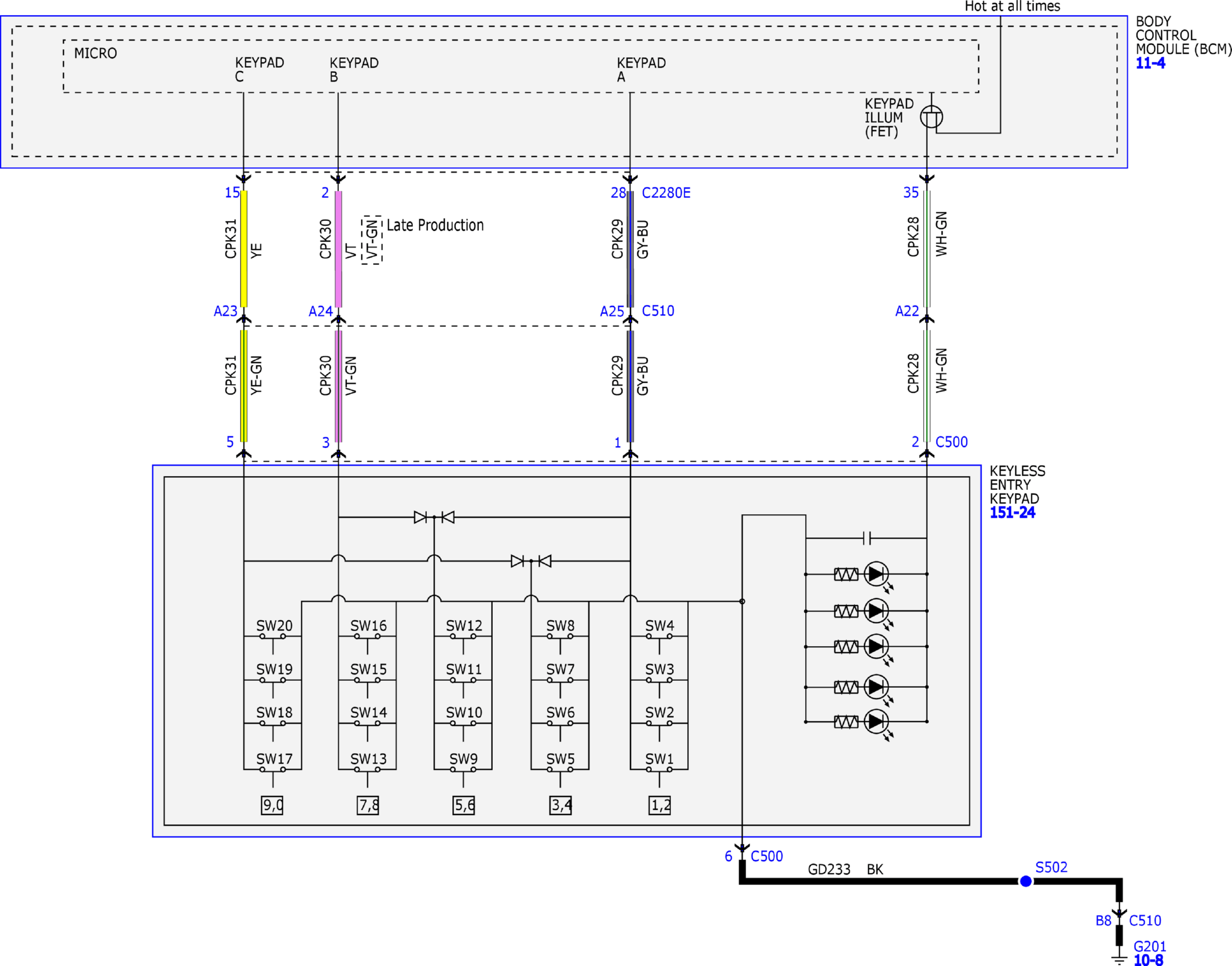

Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 of 9)

GFDW83498

Courtesy of FORD MOTOR COMPANY

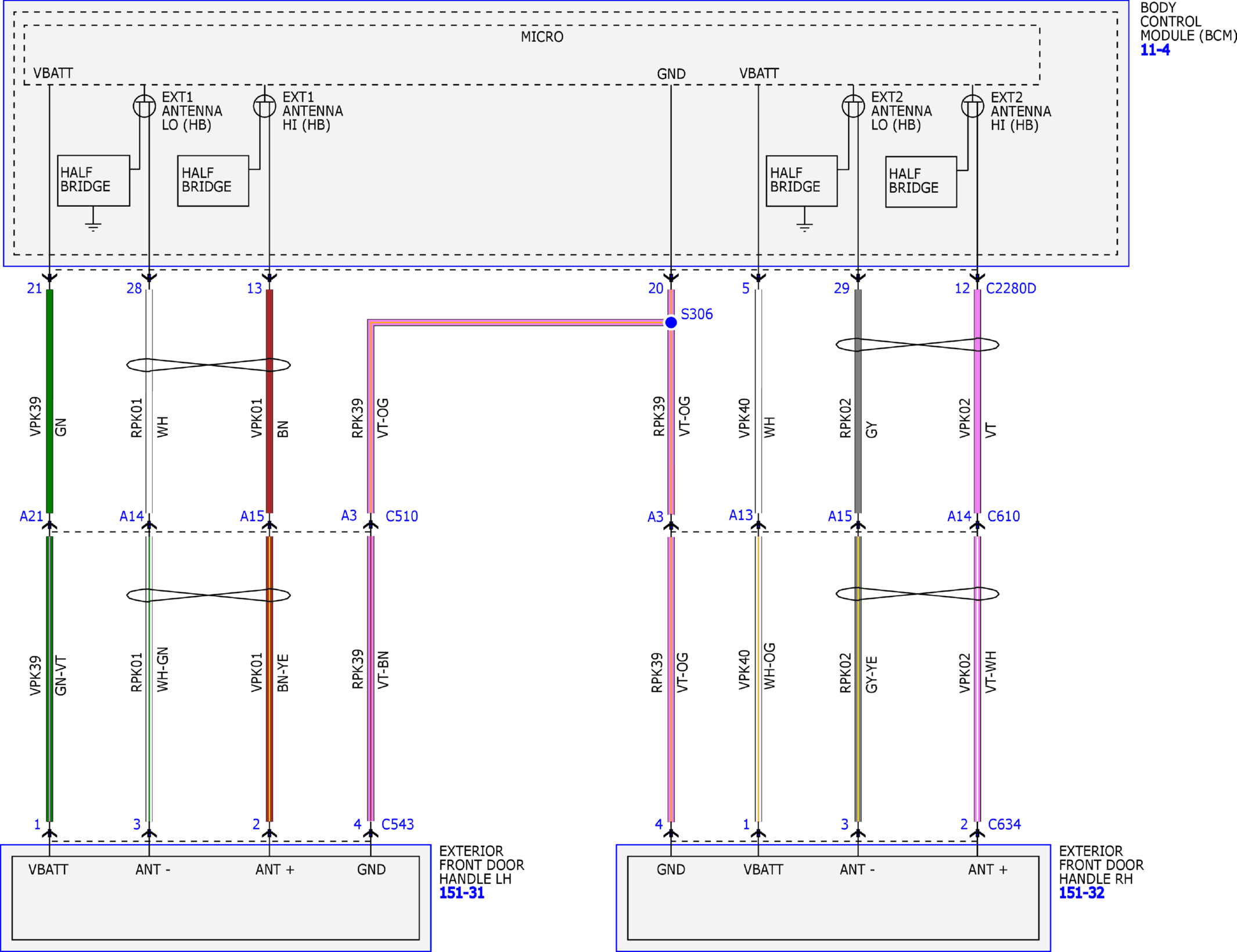

Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 of 9)

GFDW83499

Courtesy of FORD MOTOR COMPANY

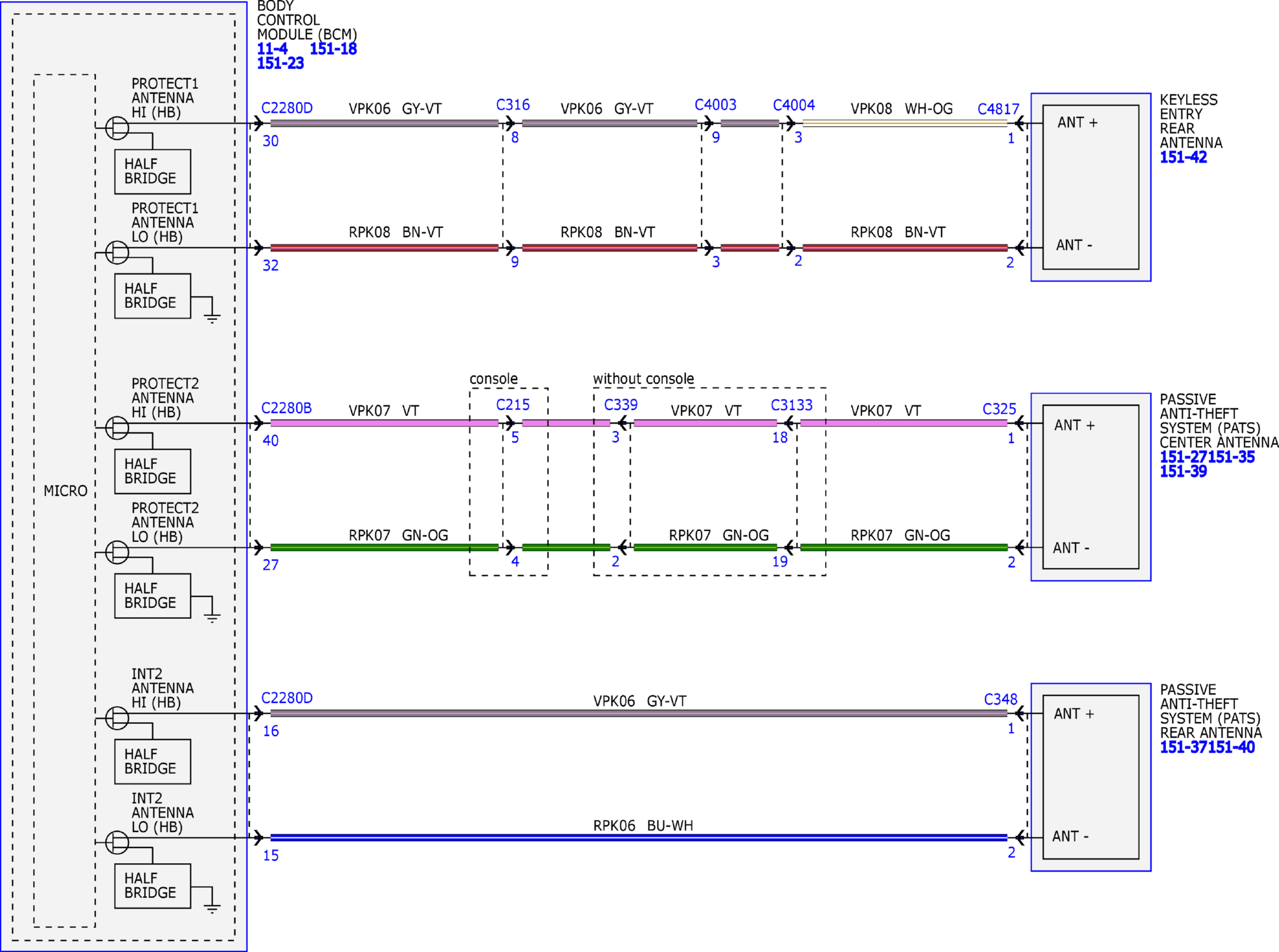

Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 of 9)

GFDW83500

Courtesy of FORD MOTOR COMPANY

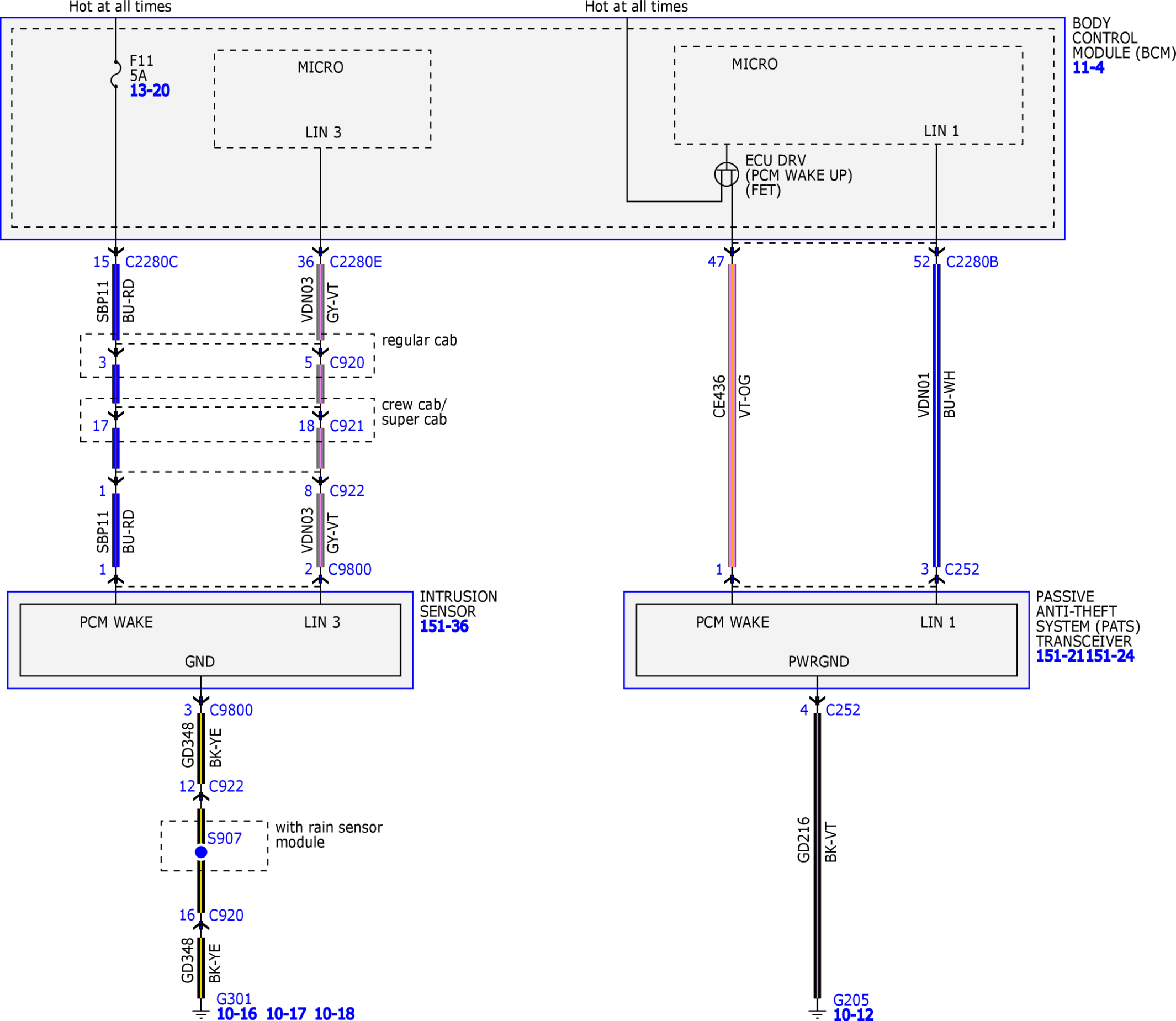

Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 of 9)

GFDW83501

Courtesy of FORD MOTOR COMPANY
