Parking, Rear And License Lamps

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 of 14)

GFDW83406

Courtesy of FORD MOTOR COMPANY

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 of 14)

GFDW83407

Courtesy of FORD MOTOR COMPANY

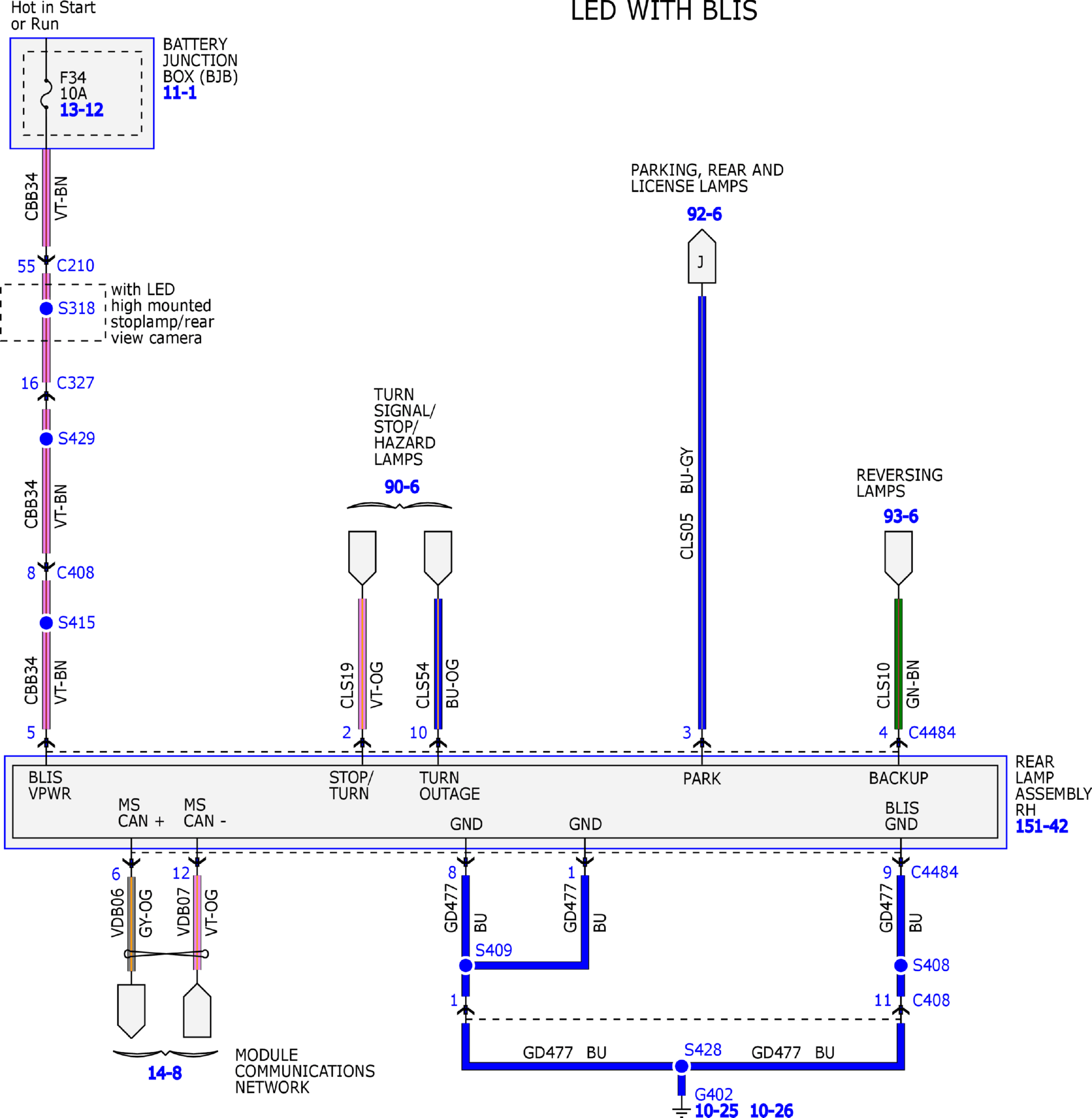

Fig 3: Parking, Rear and License Lamps Wiring Diagram (3 of 14)

GFDW83408

Courtesy of FORD MOTOR COMPANY

Fig 4: Parking, Rear and License Lamps Wiring Diagram (4 of 14)

GFDW83409

Courtesy of FORD MOTOR COMPANY

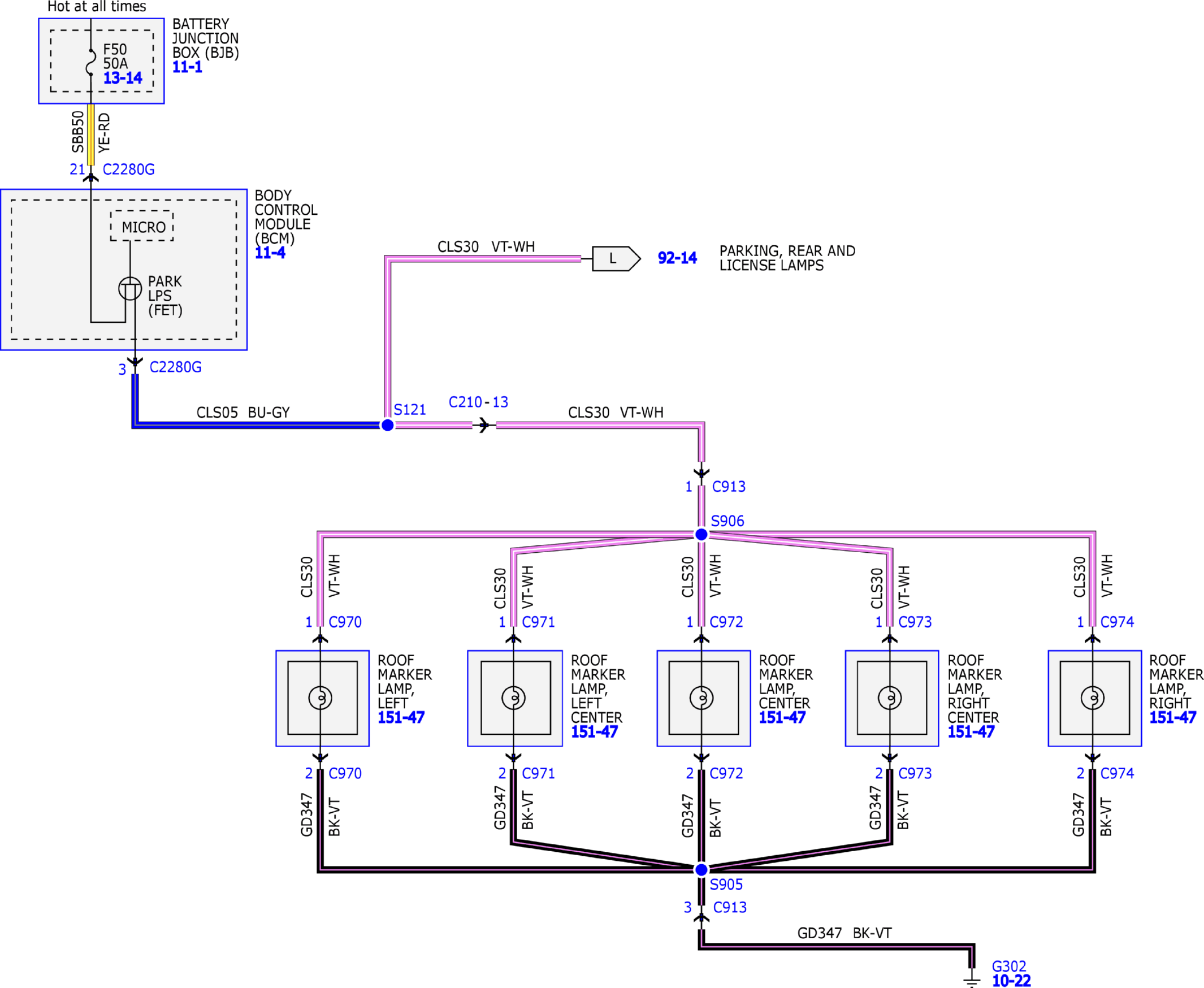

Fig 5: Parking, Rear and License Lamps Wiring Diagram (5 of 14)

GFDW83410

Courtesy of FORD MOTOR COMPANY

Fig 6: Parking, Rear and License Lamps Wiring Diagram (6 of 14)

GFDW83411

Courtesy of FORD MOTOR COMPANY

Fig 7: Parking, Rear and License Lamps Wiring Diagram (7 of 14)

GFDW83412

Courtesy of FORD MOTOR COMPANY

Fig 8: Parking, Rear and License Lamps Wiring Diagram (8 of 14)

GFDW83413

Courtesy of FORD MOTOR COMPANY

Fig 9: Parking, Rear and License Lamps Wiring Diagram (9 of 14)

GFDW83414

Courtesy of FORD MOTOR COMPANY

Fig 10: Parking, Rear and License Lamps Wiring Diagram (10 of 14)

GFDW83415

Courtesy of FORD MOTOR COMPANY

Fig 11: Parking, Rear and License Lamps Wiring Diagram (11 of 14)

GFDW83416

Courtesy of FORD MOTOR COMPANY

Fig 12: Parking, Rear and License Lamps Wiring Diagram (12 of 14)

GFDW83417

Courtesy of FORD MOTOR COMPANY

Fig 13: Parking, Rear and License Lamps Wiring Diagram (13 of 14)

GFDW83418

Courtesy of FORD MOTOR COMPANY

Fig 14: Parking, Rear and License Lamps Wiring Diagram (14 of 14)

GFDW83419

Courtesy of FORD MOTOR COMPANY
