Parking Aid

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

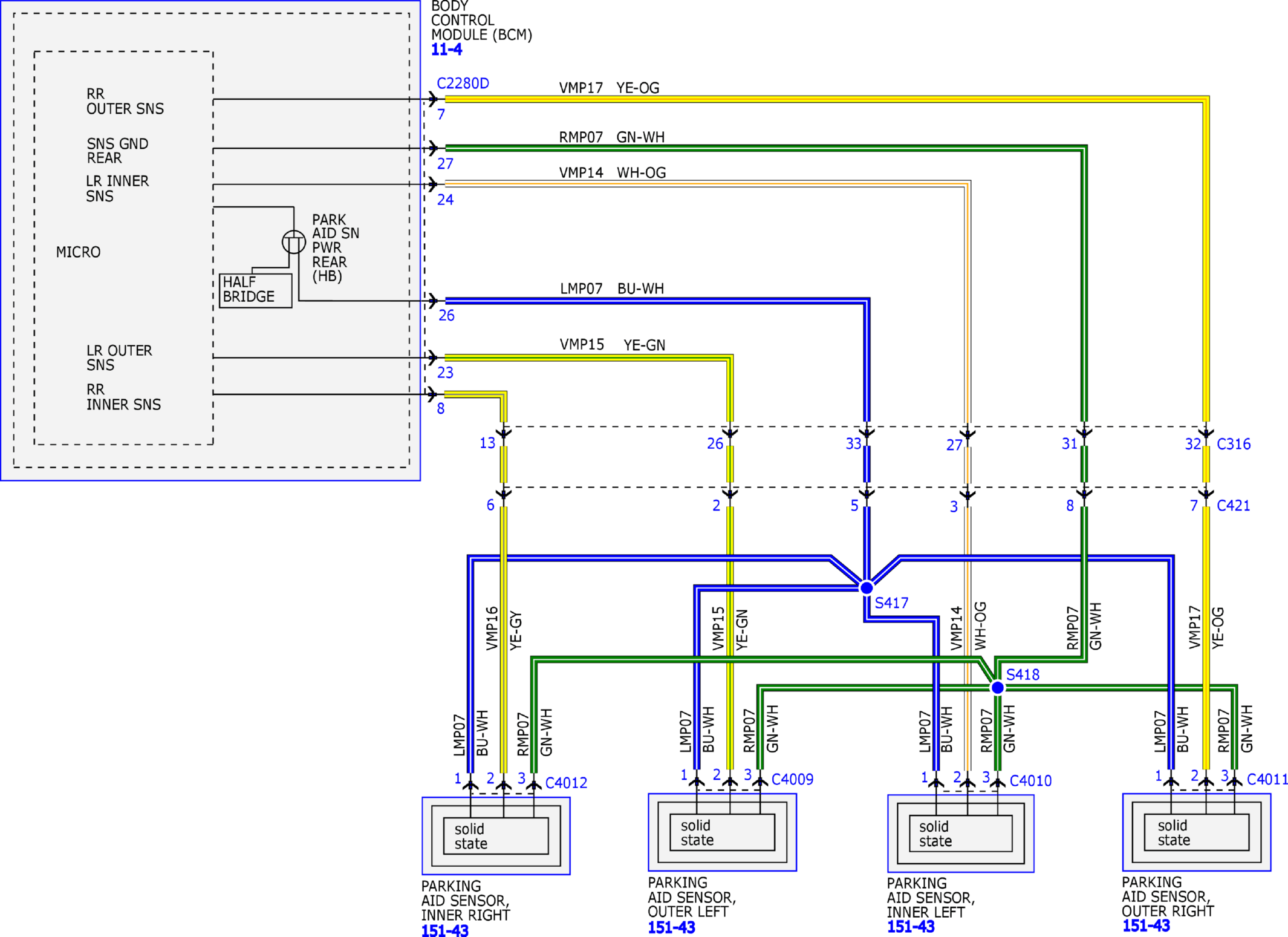

Fig 1: Parking Aid Wiring Diagram (1 of 14)

GFDW83603

Courtesy of FORD MOTOR COMPANY

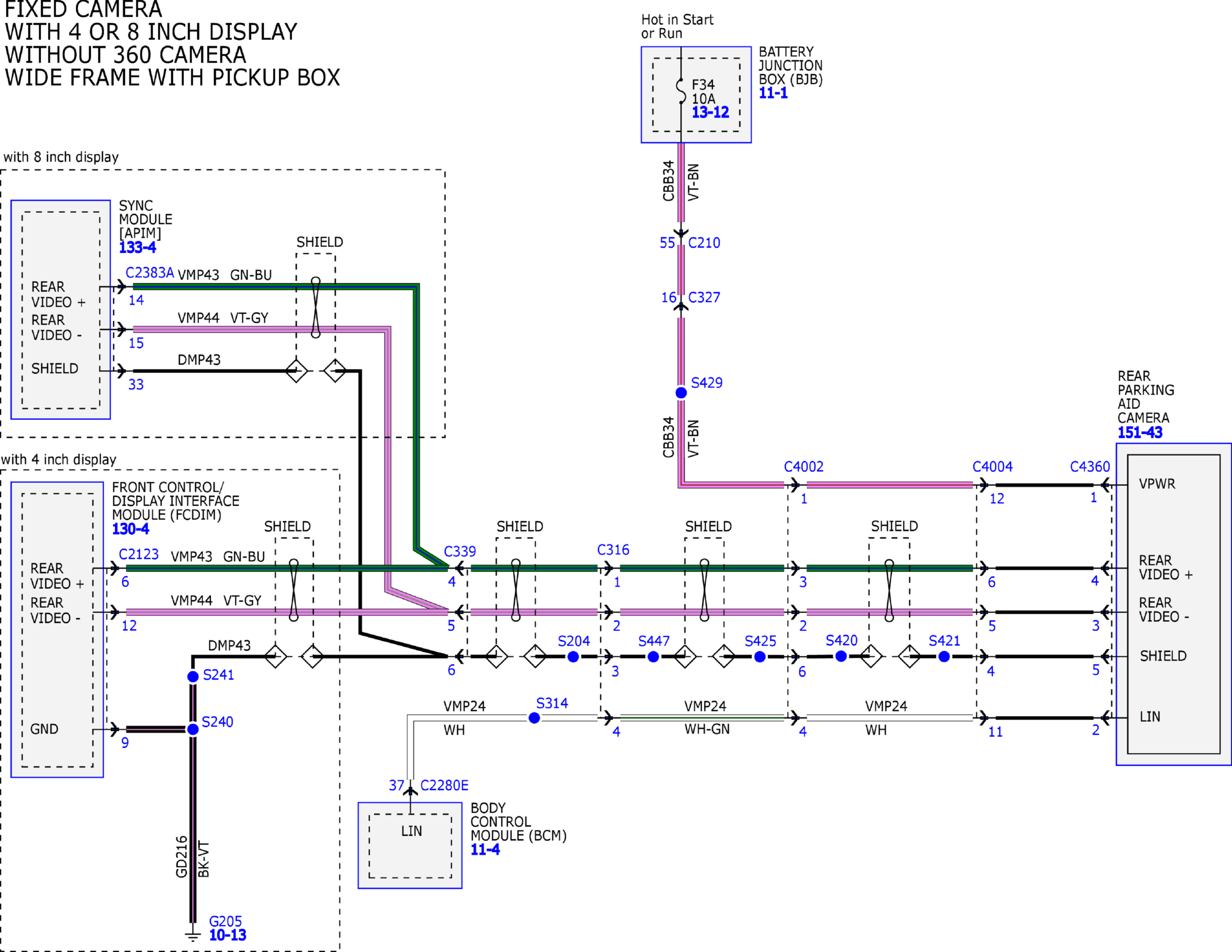

Fig 2: Parking Aid Wiring Diagram (2 of 14)

GFDW83604

Courtesy of FORD MOTOR COMPANY

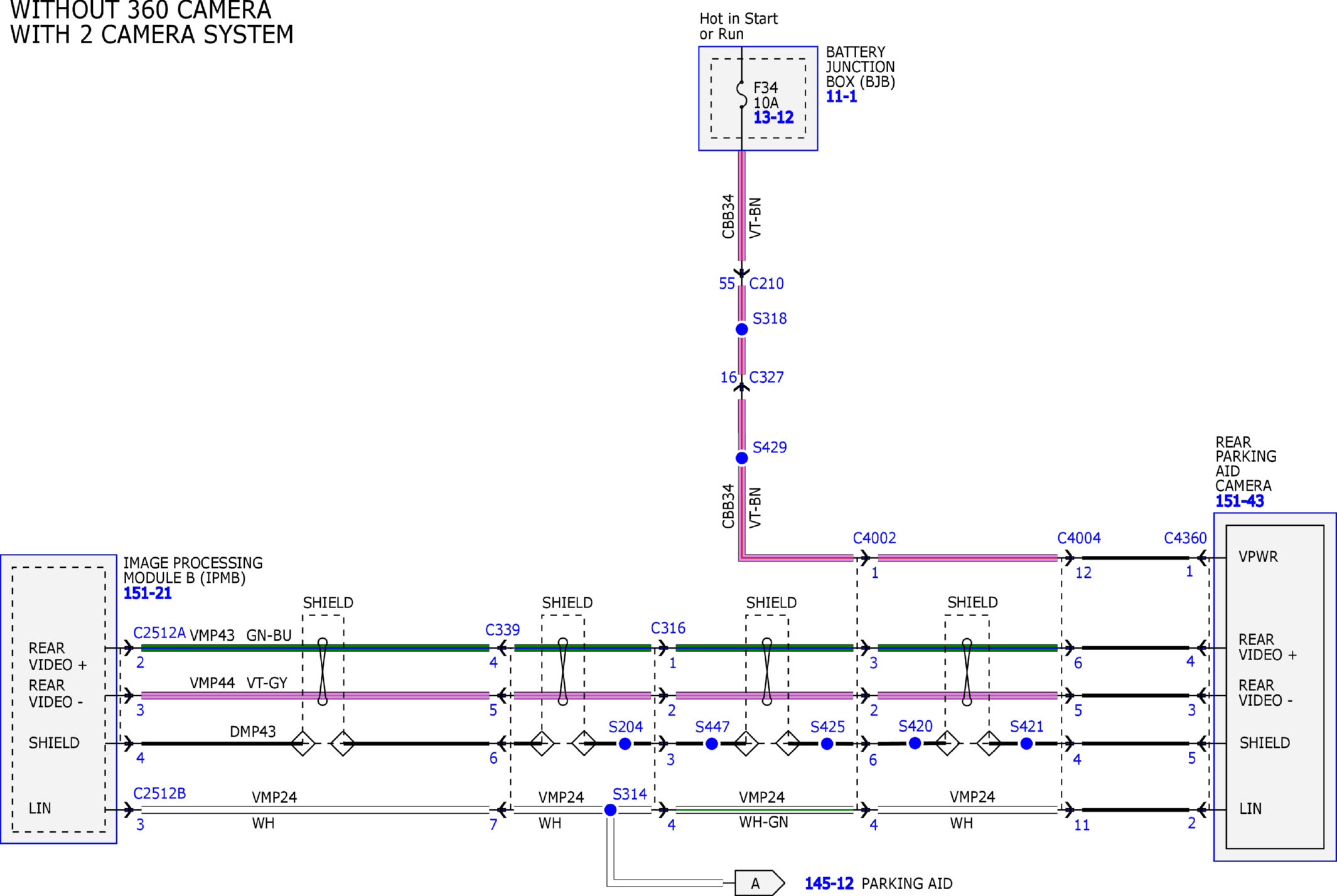

Fig 3: Parking Aid Wiring Diagram (3 of 14)

GFDW83605

Courtesy of FORD MOTOR COMPANY

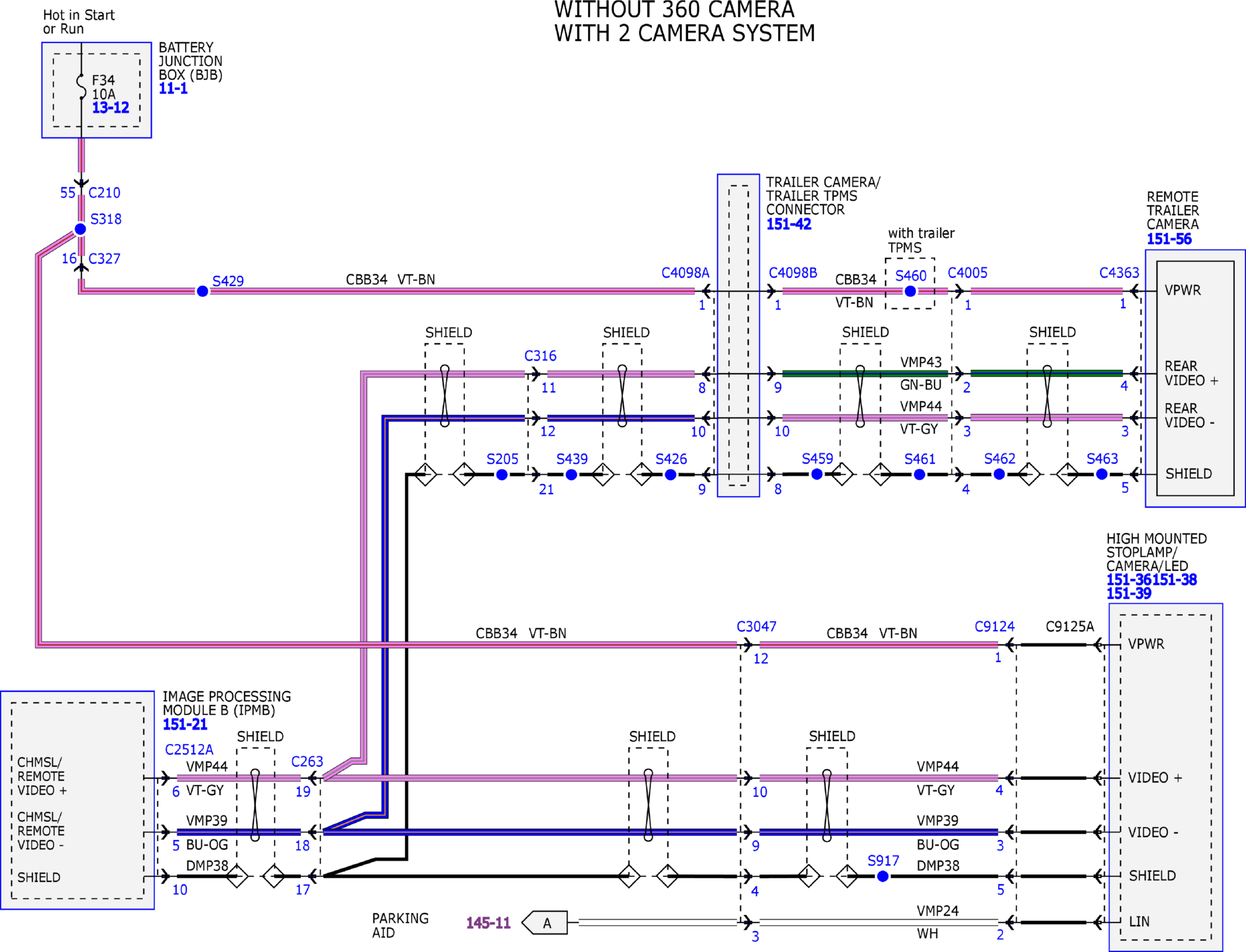

Fig 4: Parking Aid Wiring Diagram (4 of 14)

GFDW83606

Courtesy of FORD MOTOR COMPANY

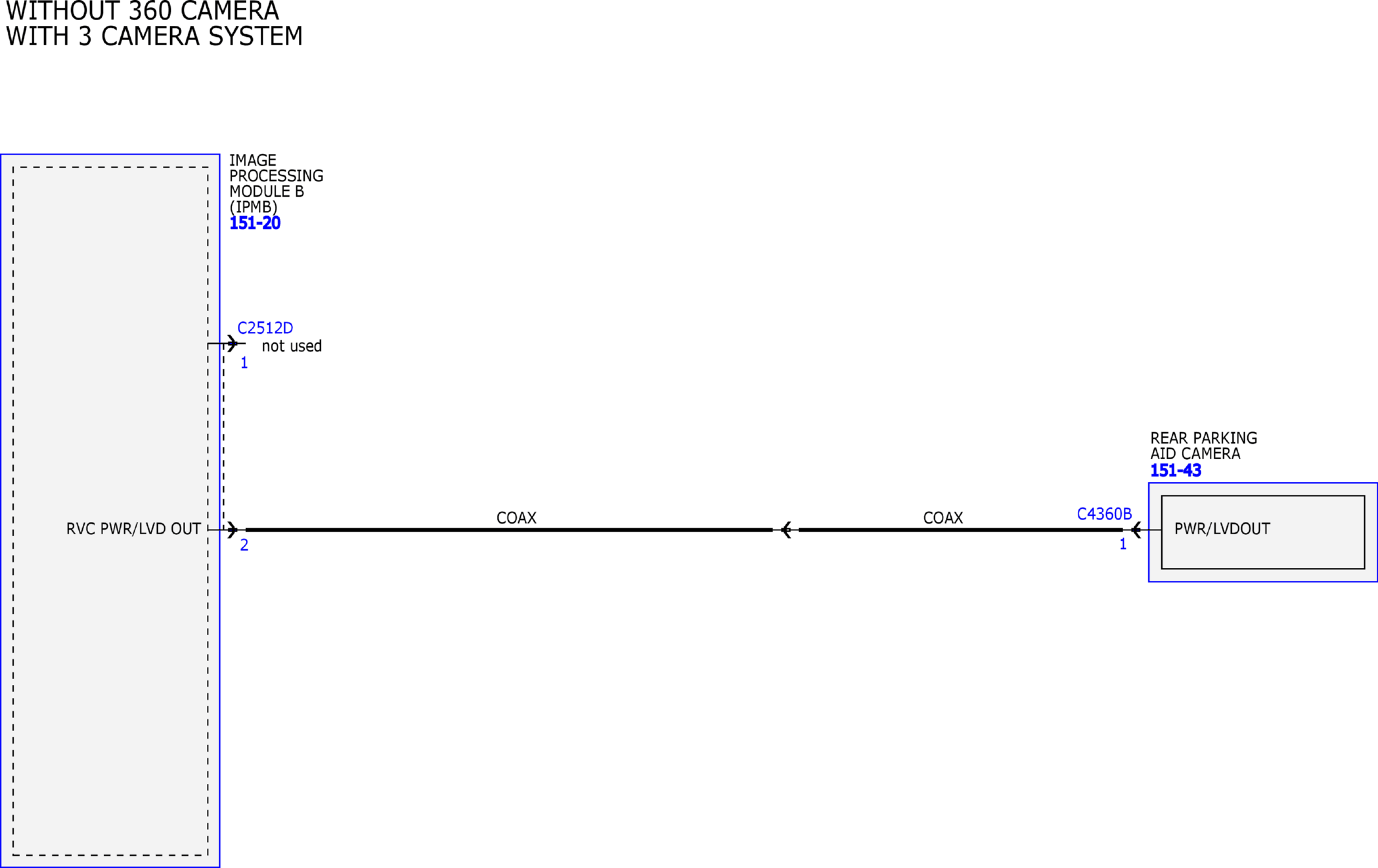

Fig 5: Parking Aid Wiring Diagram (5 of 14)

GFDW83607

Courtesy of FORD MOTOR COMPANY

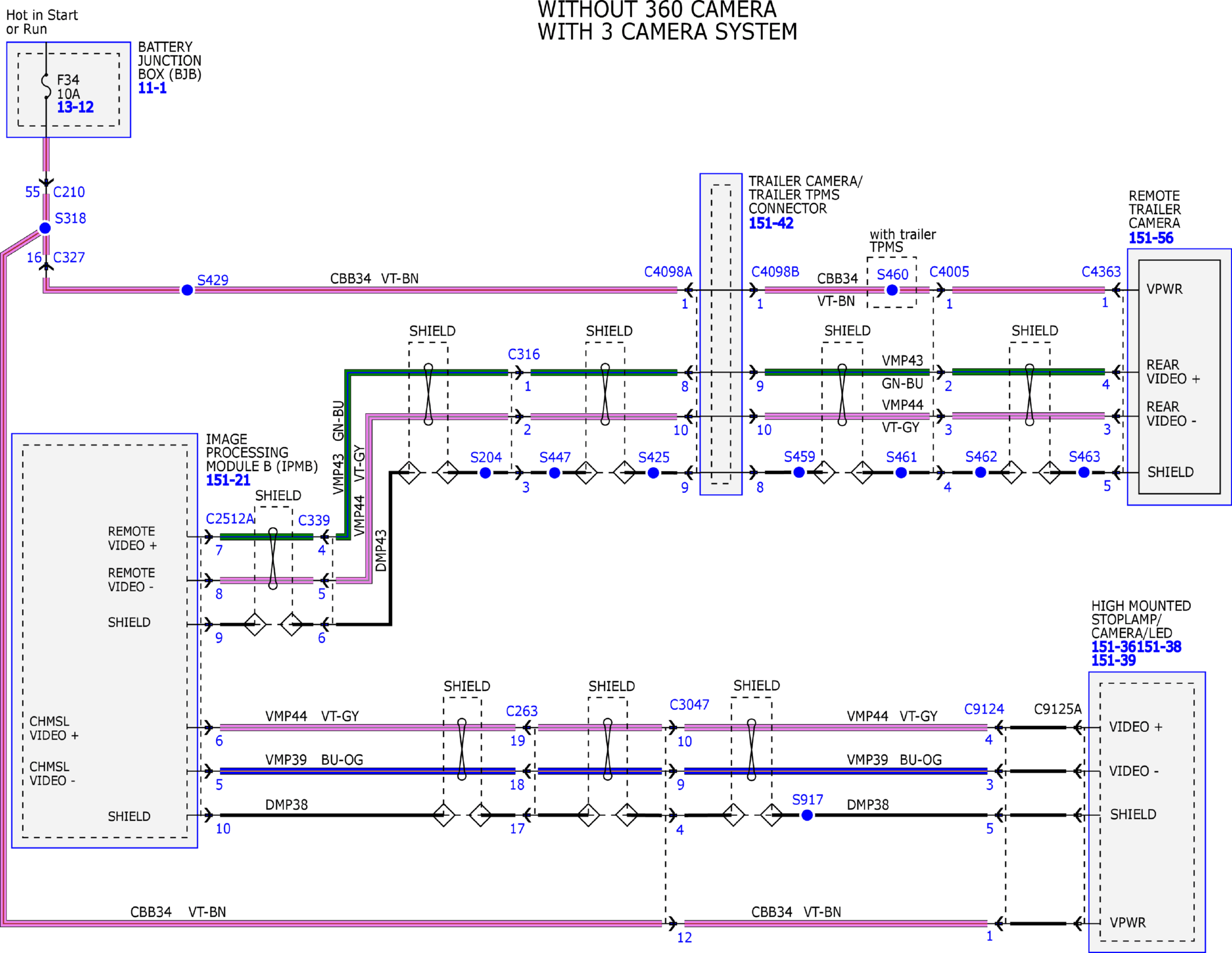

Fig 6: Parking Aid Wiring Diagram (6 of 14)

GFDW83608

Courtesy of FORD MOTOR COMPANY

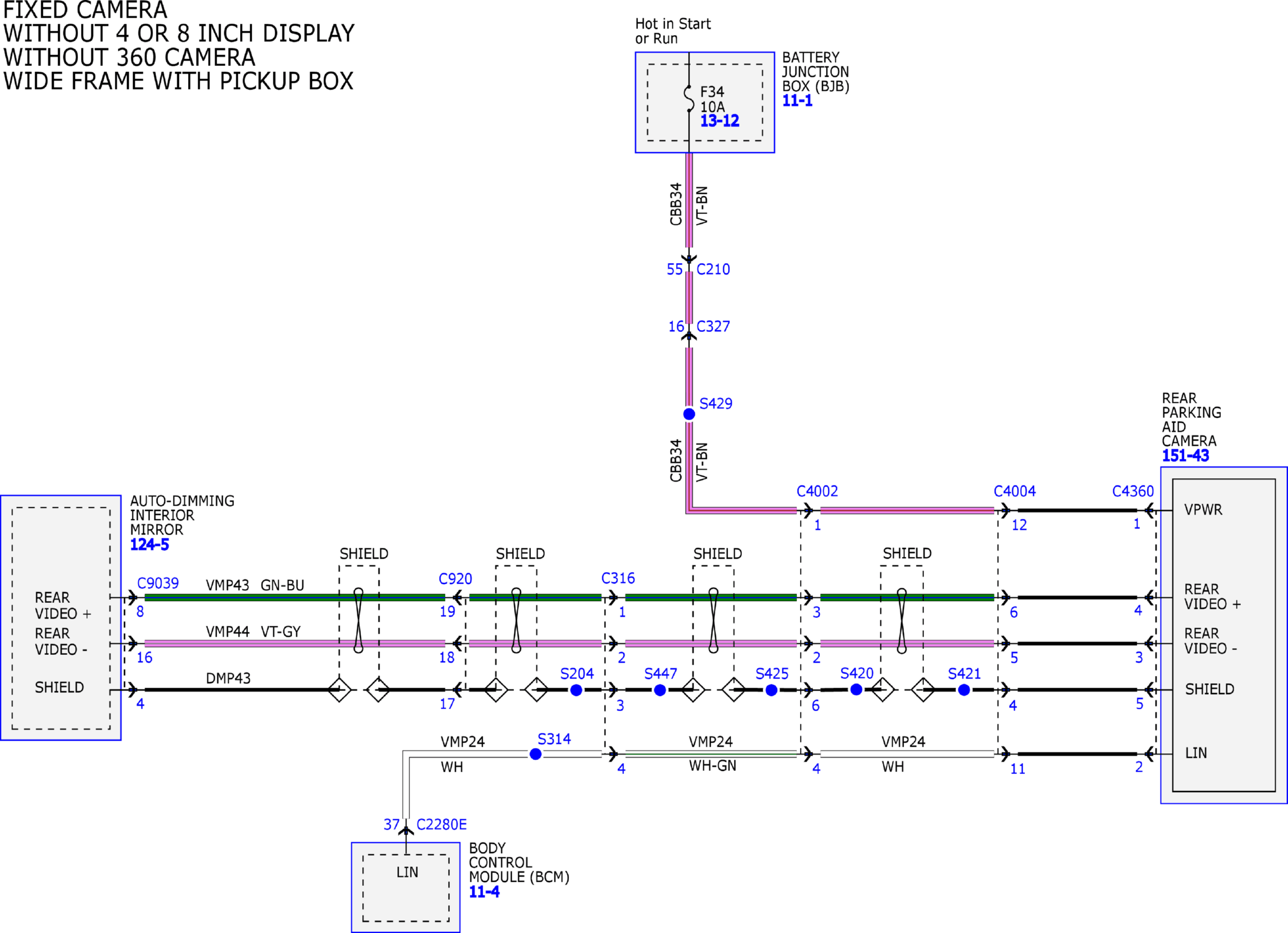

Fig 7: Parking Aid Wiring Diagram (7 of 14)

GFDW83609

Courtesy of FORD MOTOR COMPANY

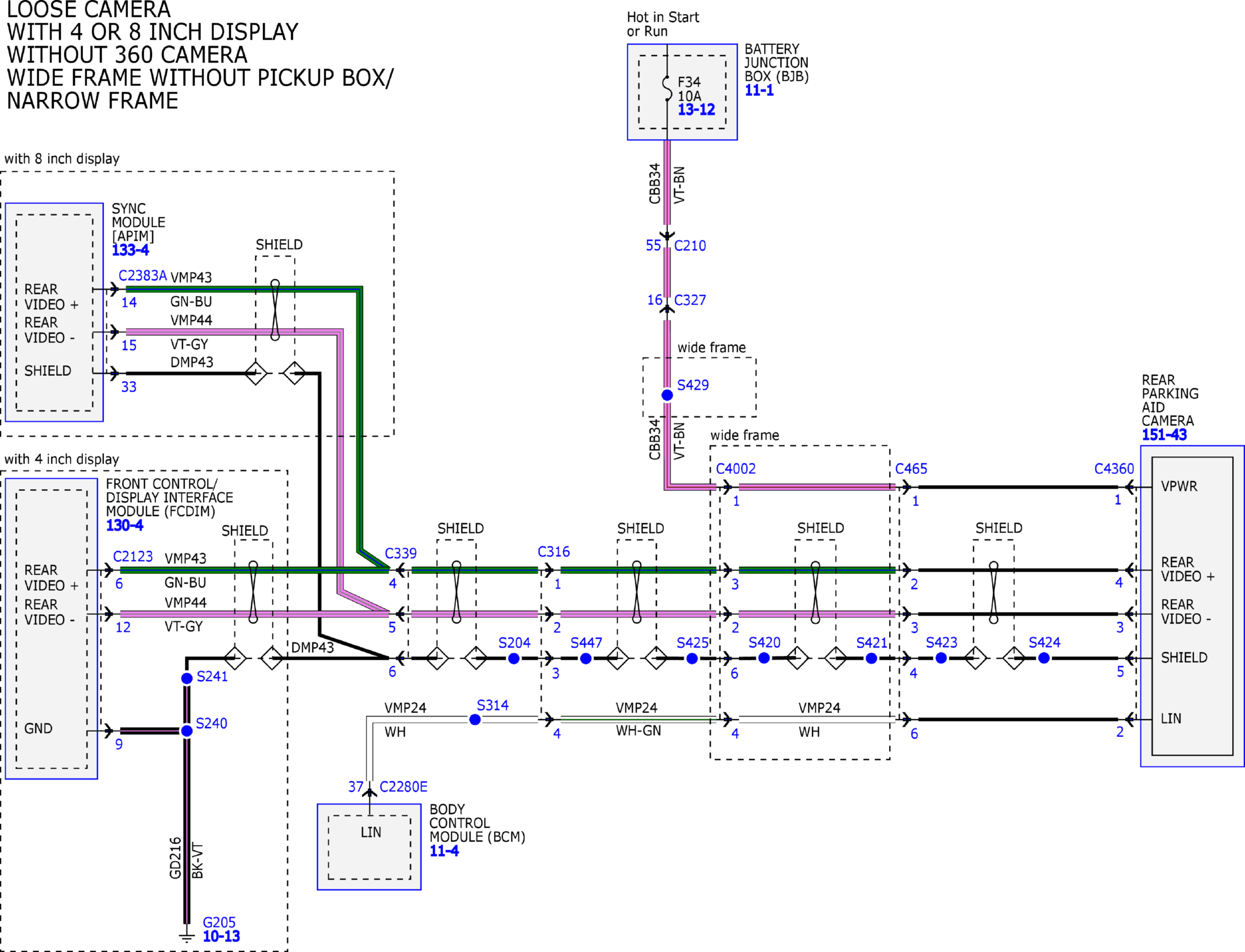

Fig 8: Parking Aid Wiring Diagram (8 of 14)

GFDW83610

Courtesy of FORD MOTOR COMPANY

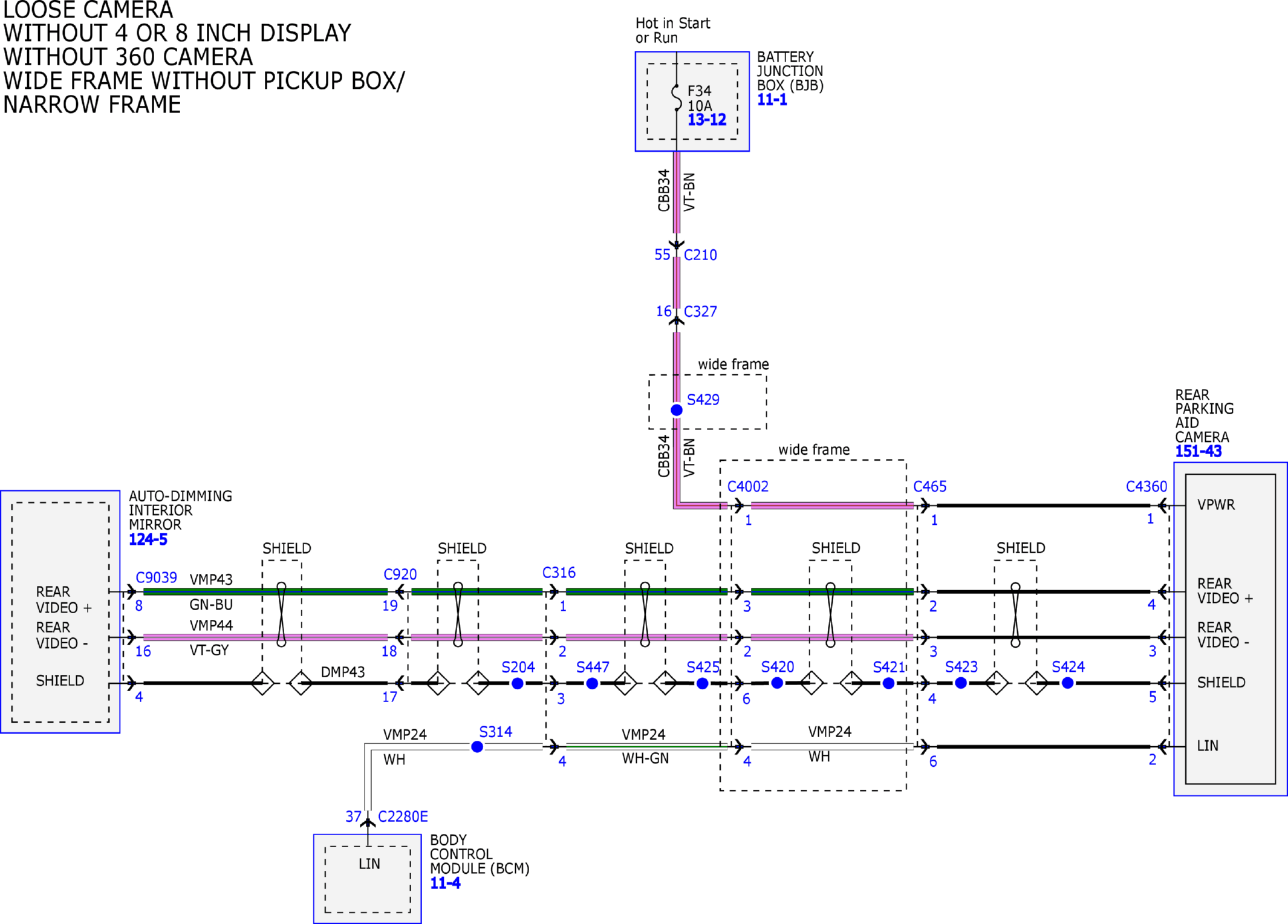

Fig 9: Parking Aid Wiring Diagram (9 of 14)

GFDW83611

Courtesy of FORD MOTOR COMPANY

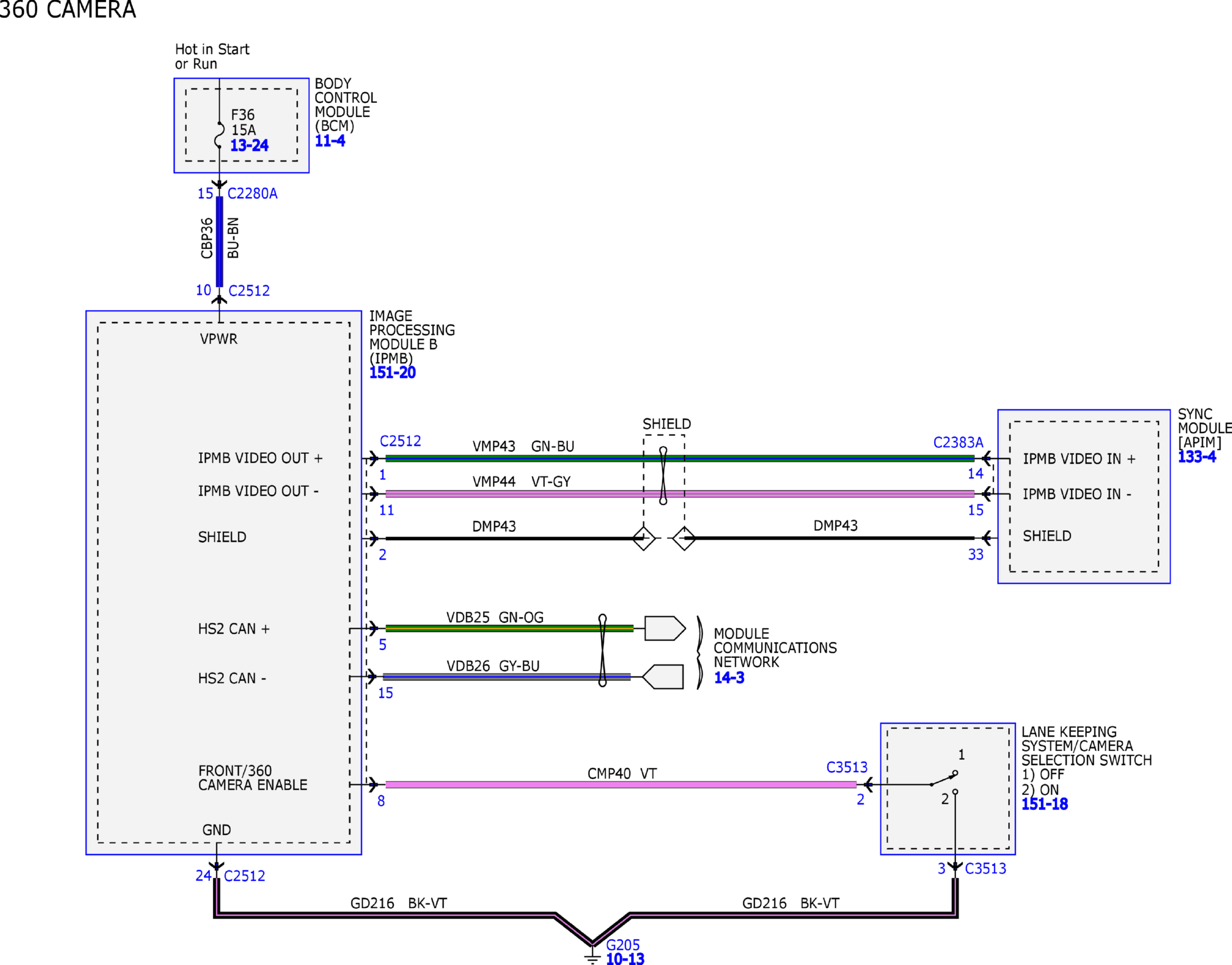

Fig 10: Parking Aid Wiring Diagram (10 of 14)

GFDW83612

Courtesy of FORD MOTOR COMPANY

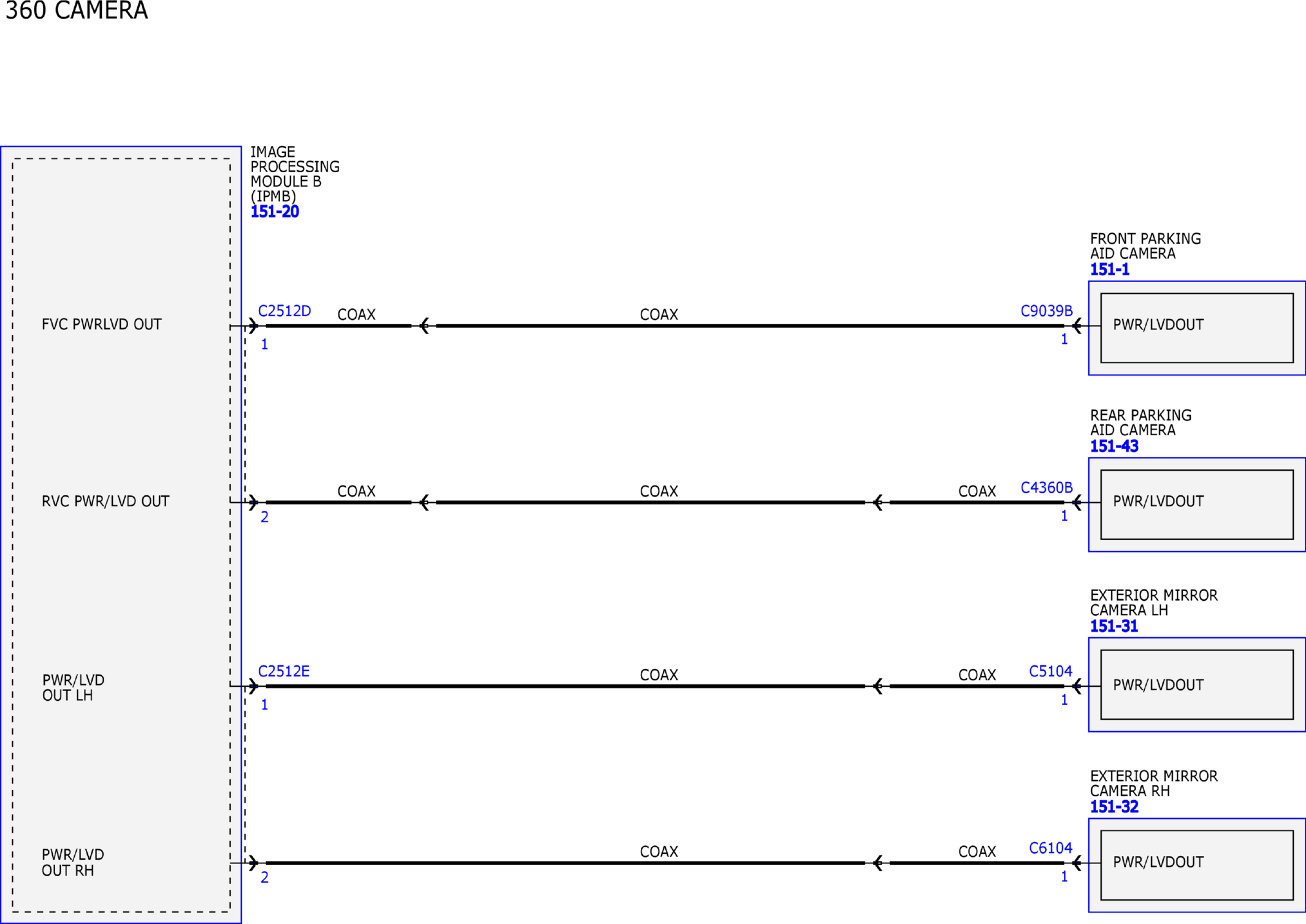

Fig 11: Parking Aid Wiring Diagram (11 of 14)

GFDW83613

Courtesy of FORD MOTOR COMPANY

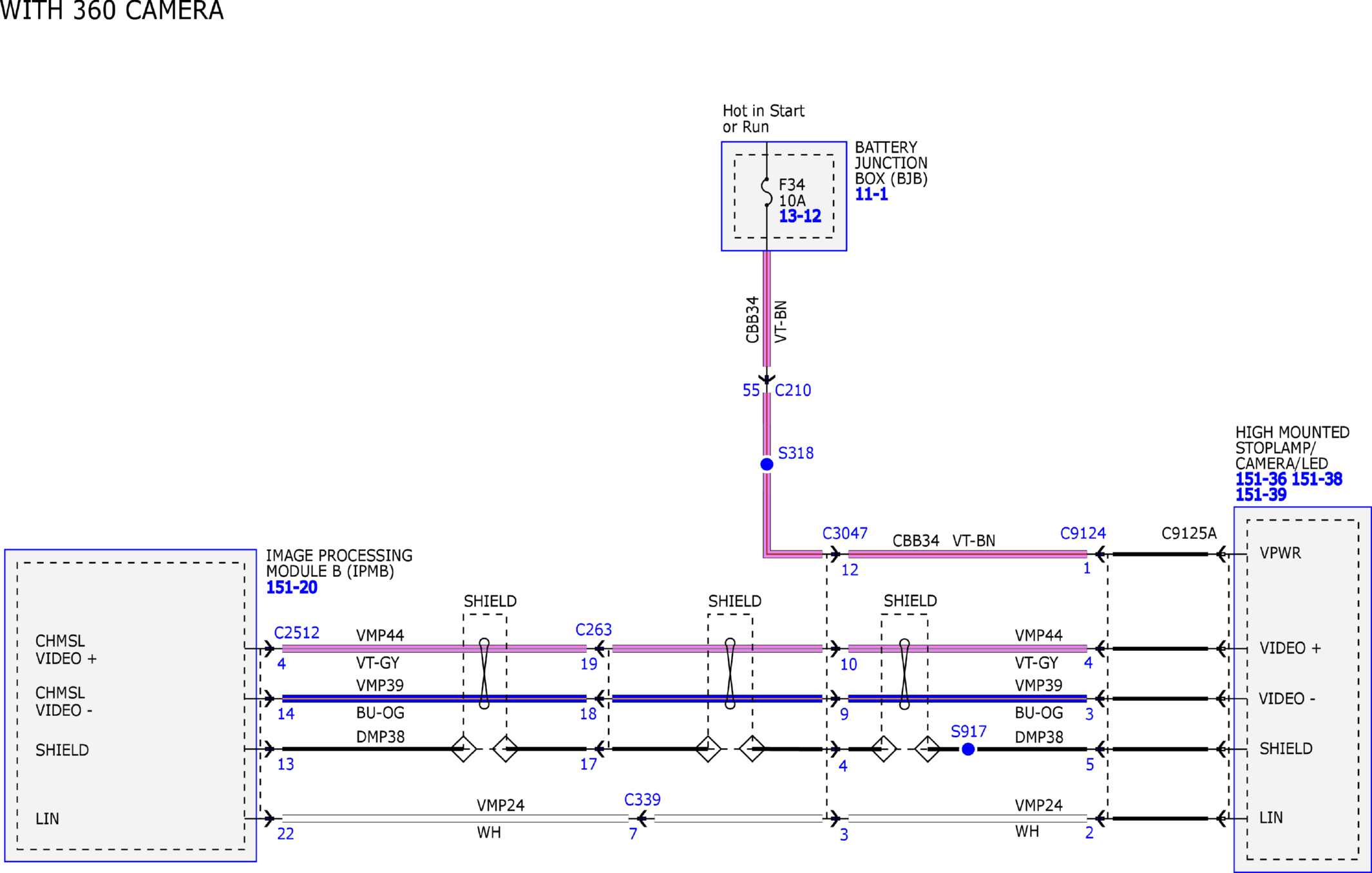

Fig 12: Parking Aid Wiring Diagram (12 of 14)

GFDW83614

Courtesy of FORD MOTOR COMPANY

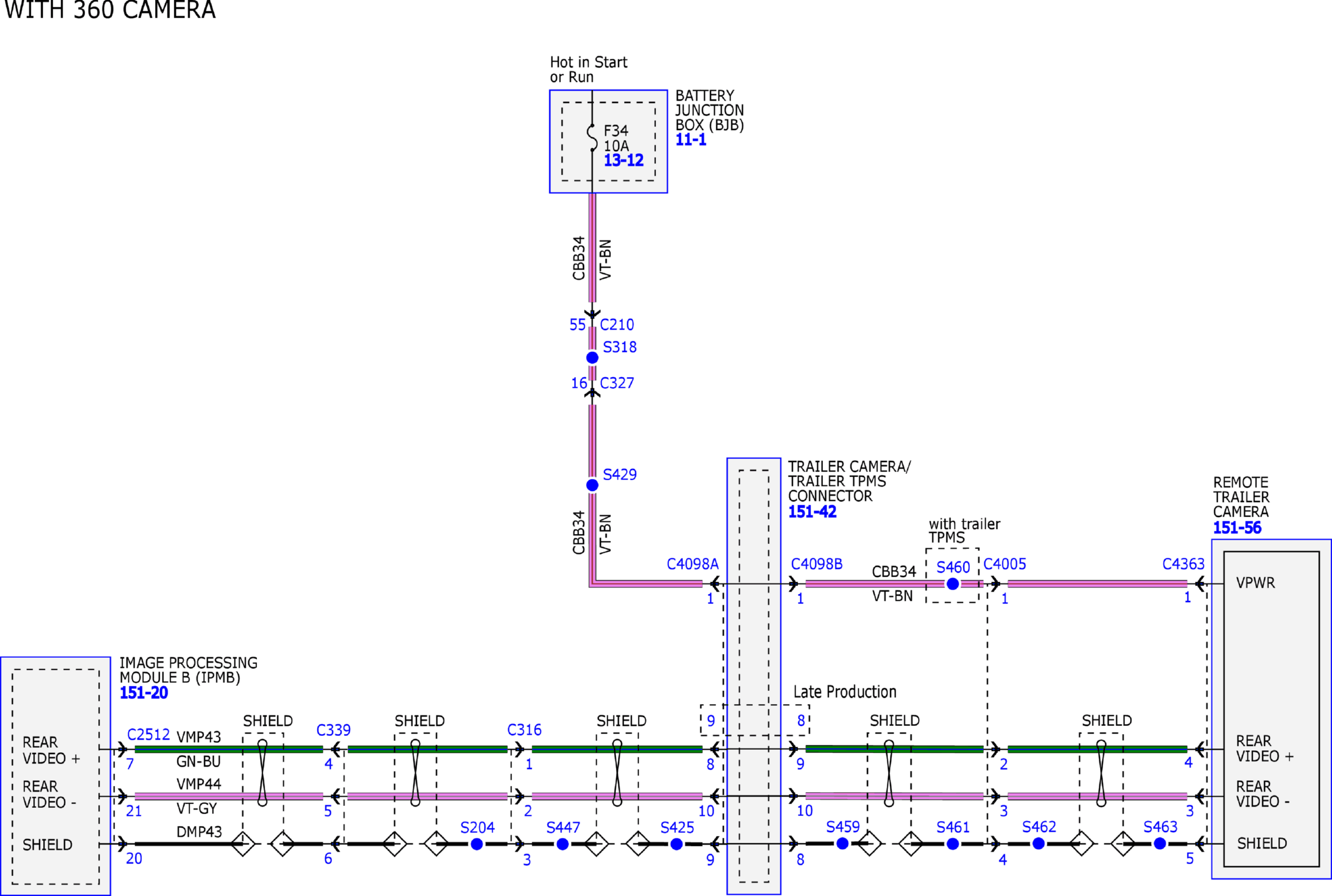

Fig 13: Parking Aid Wiring Diagram (13 of 14)

GFDW83615

Courtesy of FORD MOTOR COMPANY

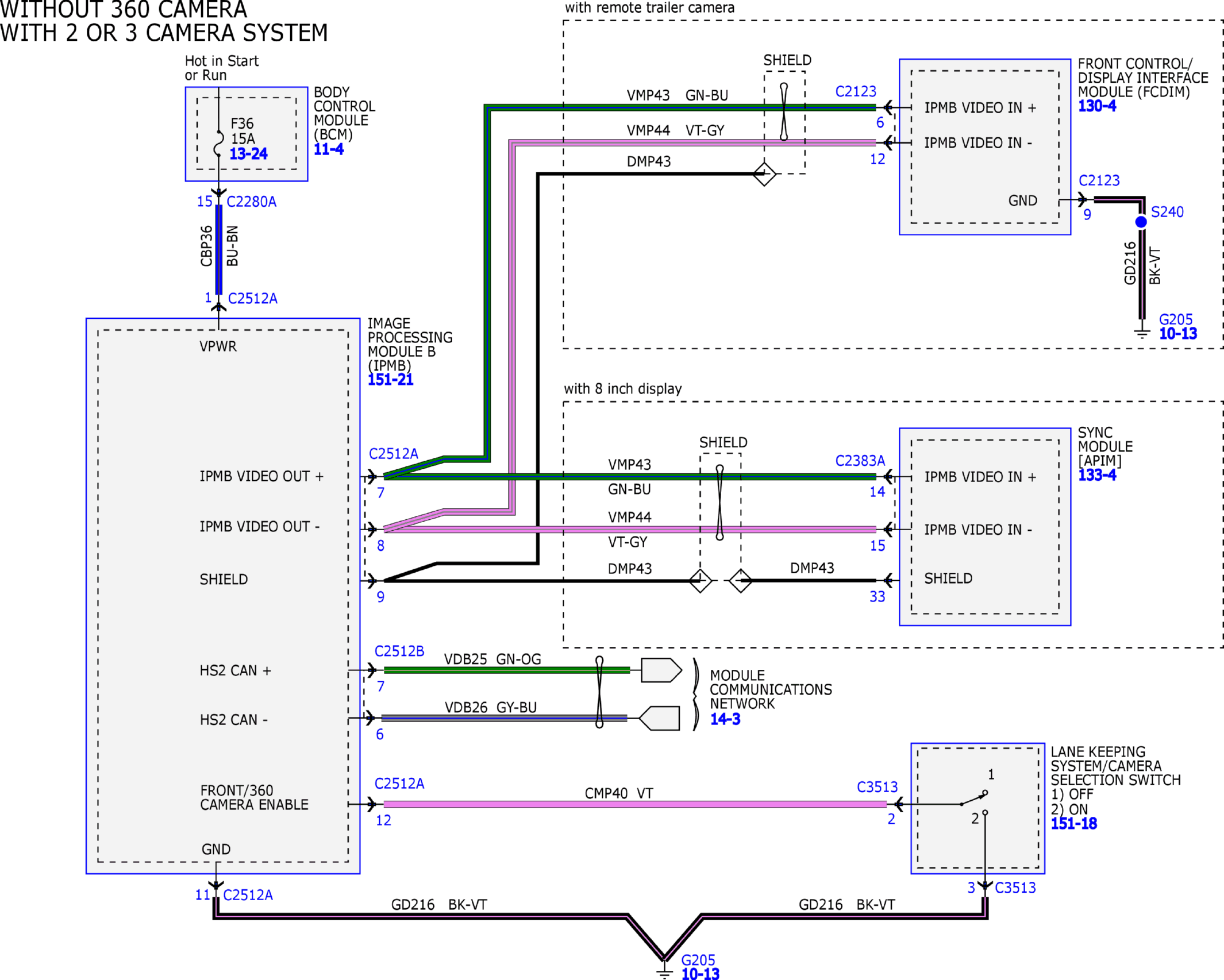

Fig 14: Parking Aid Wiring Diagram (14 of 14)

GFDW83616

Courtesy of FORD MOTOR COMPANY
